ZyXEL NWA3550 802.11a/g Outdoor Hybrid Access Point with PoE


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

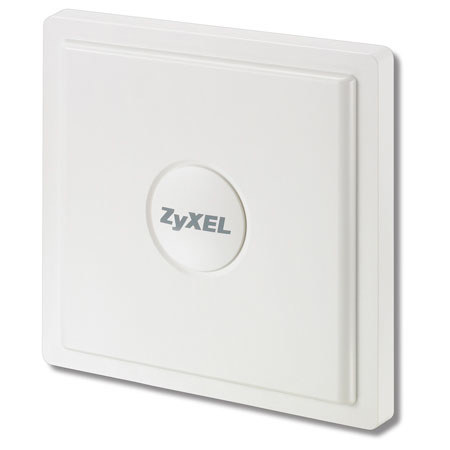

About ZyXEL NWA3550

The ZyXEL NWA3550 is an ideal solution for business seeking to deploy WLAN services in a variety of outdoor environments for extended dual-band wireless signal coverage and increased aggregated bandwidth. The durable waterproof, dust-sealed and UV-resistant casing, as well as ZyXEL's full options of accessories including antennas, cables and surge resisters enable NWA3550 to offers network planners with a solid and efficient outdoor system.

In addition to wider bandwidths, the NWA3550 also provides practical applications to bridge separate networks. One of the two radio bands can be used as the connection backbone while the other serves WLAN clients at the same time. This is highly beneficial for businesses to connect different buildings quickly without expensive cable deployments. The exterior of the NWA3550 is designed to comply with the IP-66 standard, which guarantees protection against dusts and even powerful water jets. Furthermore, the device is equipped with a built-in heater monitored by the temperature sensor for NWA3550 to endure harsh outdoor environments.

The NWA3550 has Power over Ethernet (PoE) support that allows administrators to install the device in areas where power outlets are not available. In order to fully supply the electrical power required and to relieve technicians from the hassle finding a suitable PSE, the shipment package includes a ZyXEL-certified PSE unit; and a well-designed mounting kit is also enclosed to facilitate both wall-mount and pole-mount installations.

ZyXEL delivers enterprise-class security features to small and medium businesses. To shield wireless communication at the source, WPA2 with TKIP/AES encryption provides the latest and toughest standard-based security while WEP encryption supports legacy wireless clients. Additionally, WPA2 ensures the compatibility with all Wi-Fi-certified wireless clients.

ZyXEL NWA3550 Features

  • Configurable dual-radio with a variety external antenna solutions
  • Featured with WDS function for bridging separate LAN areas together
  • IP-66 compliant casing and able to protect from UV exposure
  • Along with packaged PSE for easy installation to administrators - WEP/WPA/ WPA2 supported to ensure complete network protection

ZyXEL NWA3550 Specifications

Standard Compliance Ethernet
IEEE 802.3
IEEE 802.3u
Standard Compliance WLAN
IEEE 802.11a
IEEE 802.11 b/g
Output Power
11b/g: 17dBm
11a: 14dBm
Modulation Type
802.11b: DBQSK, DQPSK, CCK
802.11g: BQSK, QPSK, 16-QAM, 64-QAM
802.11a: BQSK, QPSK, 16-QAM, 64-QAM
Frequency Band 2.4GHz
USA: 2.412 to 2.462 GHz
ETSI: 2.412 to 2.472 GHz
Taiwan: 2.412 to 2.462 GHz
Frequency Band 5GHz
USA: 5.15 to 5.25, 5.725 to 5.825 GHz
ETSI: 5.15 to 5.725 GHz
Taiwan: 5.25 to 5.35, 5.725 to 5.825 GHz
Coverage Range
11g Indoor: up to 100m, Outdoor: up to 400m
11a Indoor: 80m, Outdoor: 200m
2 x N-type connector ports for external antennas
Wired Data Rates
10/100Mbps Auto-sensing (full-duplex switch)
Wireless Data Rates
IEEE 802.11b (auto-fallback)
CCK: 11/ 5.5Mbps
DQPSK: 2Mbps
DBPSK: 1 Mbps
IEEE 802.11g (auto-fallback)
64-QAM: 54/ 48Mbps
16-QAM: 36/ 24Mbps
QPSK: 18/ 12Mbps
BPSK: 9/ 6Mbps
IEEE 802.11a (auto-fallback)
64-QAM: 54/ 48Mbps
16-QAM: 36/ 24Mbps
QPSK: 18/ 12Mbps
BPSK: 9/ 6Mbps
WLAN Access Control List
WEP 64/128/152
WPA-Enterprise, WPA2-Enterprise
10/100Base-T full duplex RJ-45 x 1
Power over Ethernet
Yes (Must use the packaged PSE device)
Operating Environment
Temperature: -40 deg.C ~ 60 deg.C
Humidity: 10 % ~ 90 % (non-condensing)
Storage Environment
Temperature: -40 deg.C ~ 70 deg.C
Humidity: 5 % ~ 95 %
Dimensions (W x D x H)
256 x 246 x 82 mm / 10.08 x 9.68 x 3.23 in
2000g / 4.41 lbs
