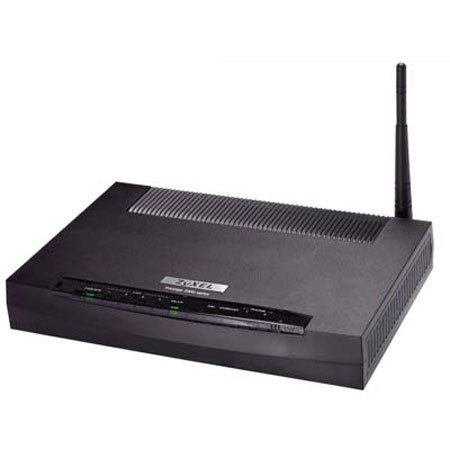

ZyXEL Prestige 2602HW All-in-One ADSL 2+ VoIP IAD for SOHO


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About ZyXEL

ZyXEL P-2602HW Gateway is an integrated Internet access device supporting high-speed ADSL, ADSL2 and ADSL2+ standard over existing copper lines. Combining convenient Wireless AP (optional), Ethernet switch, Firewall and VoIP gateway features, it is indispensable for homes and small offices with limited space and technical expertise.

With two built-in phone ports and flexible calling features, ZyXEL P-2602HW not only empowers ITSP to enjoy better profitability from flexible phone number assignment, but also offers unprecedented flexibility for users to talk unlimitedly through high-speed broadband connection.

Based on Stateful Packet Inspection and Denial of Service (DoS) technologies, the P-2602HW provides state-of-the-art firewall performance and robust protection against hackers, network intruders and other malign threats. Furthermore, the standard-based IPSec VPN ensures secured data transmission for site-to-site and remote access deployment. Since data sent by P-2602HW over the Internet can be encrypted, users is free to use the ADSL2/2+ line to replace private leased lines or frame relay networks, allowing global interconnectivity at minimal expense.

ZyXEL Features

  • ADSL, ADSL2/2+ support
  • SIP (RFC3261) support with 2 phone ports for VoIP
  • Advanced security features: SPI Firewall, IPSec VPN
  • Support QoS to prioritize voice and data traffics
  • Auto Provisioning for easy deployment

ZyXEL Specifications

Voice Codec
Voice Feature 1
SIP (RFC 3261) version 2
SDP (RFC 2327)
RTP/RTCP (RFC1889, 1890)
Echo Cancellation: G.168
VAD (Voice Activity Detection)
Silence Suppression
CNG (Comfort Noise Generation)
Dynamic Jitter Buffer (Adaptive)
DTMF Detection and Generation
Voice Feature 2
DTMF: In-Band and Out-of-Band (RFC2833), (SIP INFO)
Fax Tone Detection and Pass-through
Modem Tone Detection and Pass-through
T.38 FAX Relay*
Call Waiting*
Call Forward*
Three way conference*
Flash Hook Timer*
Multiple SIP Accounts Freely assignable to Each Phone Port
Voice priority always guaranteed.
Media Bandwidth Management (MBM)*
E to E QoS mechanism (depends on service providers' network)
ADSL Compliant
Support Multi Mode Standard (ANSI T1.413 Issue 2, G.dmt, G.lite)
ADSL2 G.dmt.bis (G.992.3)*
ADSL2 G.lite.bis (G.992.4)*
ADSL2+ (G.992.5)*
Reach Extended ADSL (RE ADSL)*
ATM Support
8 PVCs Support
RFC 1483/2684 Multiple Protocol over AAL5
RFC 2364 PPP over AAL5
RFC 2516 PPP over Ethernet
VC and LLC Multiplexing
Traffic Shaping UBR, CBR, VBR
ATM Forum UNI 3.1/ 4.0 PVC
I.610 OAM F4/F5 loop
Routing Support
IEEE 802.1d Transparent Bridging
RIP1v1 and RIPv2
IP Multicast IGMP v1/v2
IP Management
SUA/Multi-NAT Internet Sharing
Multimedia Support
DHCP Server/Relay/Client
DNS Proxy
Dynamic DNS
UPnP Support
Wireless LAN
IEEE 802.11g/11b Compliance
Data Rates up to 54Mbps, Auto Fallback
64/128/256bits WEP Encryption
MAC Address Filtering
IEEE 802.1x Port-based Authentication
One non-detachable Antenna
Firewall Security
Stateful Packet Inspection
Prevent DoS Attack
Access Control of Service
Content Filtering
IP & Generic Packet Filtering
Real-time Attack Alert and Logs
Virtual Private Network
20 IPSec VPN Tunnels
IKE and Manual Key Management
AH and ESP Protocol
DES,3DES and AES Encryption
SHA-1 and MD5 Authentication
Tunnel and Transport Mode Encapsulation
Network Management
Web based Configuration
Command-line Interpreter (CLI)
Telnet Remote Management
SNMP Support
FTP/TFTP firmware upgrade and configuration backup/restore
Built-in diagnostic tool
RJ-11 for P2602H/HW over POTS
RJ-45 for P2602H/HW over ISDN/UR2
RJ-45 for P-2602HWL over POTS/ISDN/UR2
Four Ports 10M/100M Auto MDI/MDIX Ethernet Switch
Two RJ-11 Ports for Analog Service Connection
18V DC 1A Switching Power Supply
0deg. C - 40deg. C
20% - 85 % ( non-condensing)
248 x 168 x 37 mm / 9.76 x 6.61 x 1.45"
642 g / 22.64 oz
