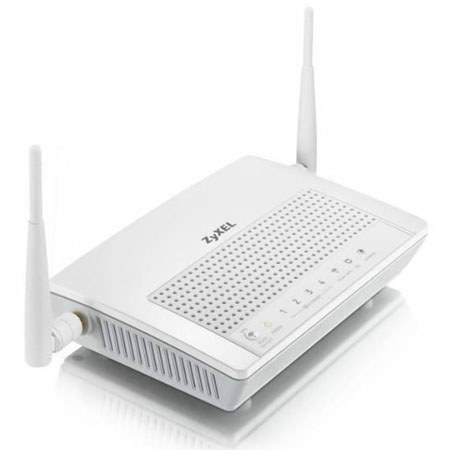

ZyXEL Prestige 660HN-F1 802.11n ADSL2+ 4 Port Wireless Gateway

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$129.99 $6 per week
Free Expedited Shipping
Add to Wishlist

About this item

The 660HN Series featuring 802.11n Draft 2.0 Technology provides the ultimate solution for speed and coverage. With data rate up to 300 Mbps, P660HN-F1 series provides stable and reliable wireless connections for high speed data and multimedia delivery. It eliminates dead zones and extends coverage by using coming IEEE 802.11n technology and backwards compatible with any IEEE 802.11b/g Wi-Fi certified device.

To respond to the concept of green earth, P660HN-F1 series equips with wireless on/off button that assists users to easily manage energy consumption. By just one click to shut down wireless power, energy can be saved and utilized more efficiently when wire wireless communication is not used. At meanwhile, the wired communication is still on and won't be effected.

Enhanced security protection guards the traffic all the way through broadband to LAN. Dual Ethernet firewall (NAT and SPI) block hackers to easily locate target which greatly reduces the risk of being hacked. As the part of wireless security, P660HN-F1 series supports not only WPA-2/WPA/WEP, but also hardware WPS button to realize easy-setup by just single click. Thus, to own a secure wireless network is not a headache anymore.

P660HN-F1 series supports QoS features to shape traffic priority that maximizes the bandwidth utilization. It will make P660HN-F1 more ideal for delivery of time-sensitive applications, like VoIP or video streaming. The P660HN-F1 Series based on ADSL2+ standard which not only creates fast access to the Internet, but also maintains stable connections and enough bandwidth to surf the Internet. Steaming video/audio content and playing online-game simultaneously are more smooth and faster than traditional ADSL enabled gateways.

Key Features

  • ADSL2+ high speed internet access with up to 24Mbps download speed
  • Robust and proven SPI firewall with DoS attack protection
  • Eco friendly wireless. Hardware Wireless on/off button to saves energy by eliminating the wasting of electricity
  • Embedded QoS that controls different types of network traffic to optimize time sensitive information
  • WPS button for quick and easy wireless security setup

Technical Specs

ADSL Compliance ITU 992.1 (G.dmt )
ITU 992.3 ADSL2 (G.dmt.bis)
ITU 992.5 ADSL2+
Reach-Extended ADSL (RE ADSL)
Annex L/M support
WLAN IEEE 802.11n compliance, backward compatible with 11b/g
Frequency Operation:2.4GHz
64 /128 bits WEP data encryption
WPA/WPA2 (Wi-Fi Protected Access) Security
Wireless Scheduler
Wi-Fi Multimedia (WMM)
WPS (Wi-Fi Protected Setup)
Router NAT (Maximum 4000 sessions)
SIP ALG pass-through
NAT port forwarding
PPPoE pass-through
Dynamic DNS
IP Alias
DHCP Server/Client/Relay
RIP I/ RIP II support
IGMPv1 and v2 support
UPnP support
Firewall Stateful Packet Inspection (SPI)
Denial of Service (DoS) Prevention
Security Multiple VPN (IPSec, PPTP) pass-through
Packet Filtering
URL keyword blocking
Management Embedded Web Configuration
TR-069 HTTPS support
Logs and Statistics
SNMP v1 and v2 with MIB II
Remote Management Control: Telnet, FTP, Web, SNMP and DNS
CLI command via telnet/console
ADSL port F3Z: 1 x RJ-45
F1Z: 1x RJ-11
F1: 1x RJ11
Ethernet port 4 x RJ-45
Power input 12VDC 1A
LED displays Power, Ethernet (1-4), WLAN/WPS, DSL, Internet
Operating Temperature 0deg. C - 40deg. C
Operating Humidity 20% - 60% (non-condensing)
Storage Temperature -20deg. C - 60deg. C
Storage Humidity 20 - 90% RH (non-condensing)
Dimension (W x D x H) 189 x 132 x 42 mm / 7.44" x 5.2" x 1.65"
Weight 365 g / 0.81 lbs
