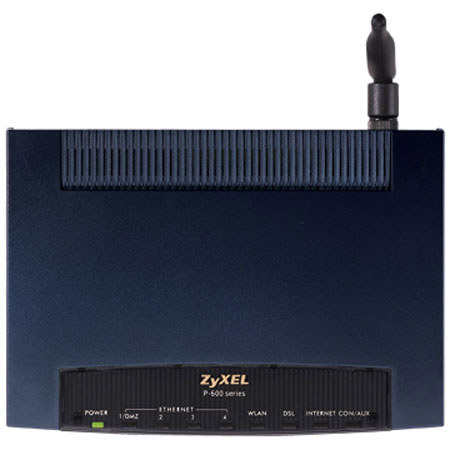

The P-662HW-D1 is a wireless ADSL2+ router. It has four 10/100 Base-T Ethernet ports and provides WAN throughput of up to 24Mbps. The P-662HW-D1 features a Fail-over and Fall back WAN backup solution for complete reliability. When the DSL connection fails, traffic is forwarded to either a backup ISDN or analog modem to maintain data transfer. When the DSL connection is re-established, traffic is fully restored.
The integrated AP complies with IEEE 802.11b/g standards. Using "G+" technology, it provides wireless transmission speeds of up to 108Mbps. The router supports WEP and WPA/WPA2 wireless encryption and 802.1x authentication. It uses WMM (QoS) to prioritize the traffic over the network. This router provides VPN pass-through for IPSec, allowing you to establish up to 20 simultaneous VPN tunnels. It features a built-in SPI firewall to protect the network from Denial of Service (DoS) attacks.
|Digital Signaling Protocol||ADSL Lite, ADSL, ADSL2, ADSL2+, READSL|
|Data Link Protocol||Ethernet, Fast Ethernet|
|Capacity||IPSec VPN tunnels: 20|
|Network / Transport Protocol||TCP/IP, UDP/IP, ICMP/IP, IPSec|
|Routing Protocol||RIP-1, RIP-2, IGMPv2, IGMP|
|Remote Management Protocol||SNMP, Telnet, HTTP|
|Compliant Standards||IEEE 802.1D, IEEE 802.1x, UPnP|
|Encryption Algorithm||AES, PKI|
|Protocols & Specifications||ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.5|
|Max Transfer Rate||24 Mbps|
|Interfaces||WAN: 1 x ADSL, LAN: 4 x 10Base-T/100Base-TX - RJ-45, Management: 1 x console - RJ-45|
|Dimensions (WxDxH)||18 x 12.8 x 3.6cm / 7.08 x 5.04 x 1.42in|
|Weight||360g / 0.79lbs|
