ZyXEL

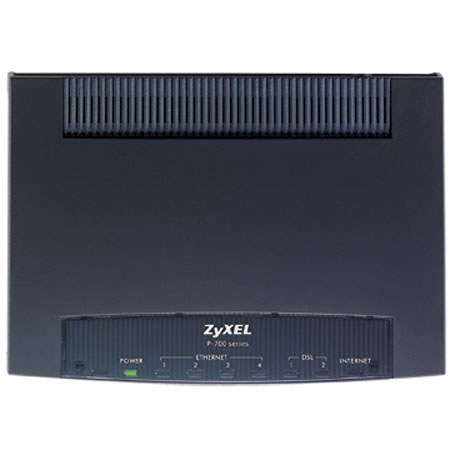

ZyXEL Prestige 793H 4-Wire SDSL Router with 4-Port Switch

SKU: ZYP793H MFR: P793H
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$479.99 $19 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

The P-793H is a high performance G.SHDSL Gateway providing Internet access and LAN-to-LAN application over existing copper line for small/medium office. The P-793H makes full use of the advanced G.SHDSL.bis technology to offer data transmission rates of up to 5.69Mbps in 2-wire mode. In 4-wire mode, you can get up to twice the transmission speed at 11.38Mbps.

ZyNOS ensures state-of-the-art firewall performance and robust security from the P-793H. Based on Stateful Packet Inspection (SPI), Denial of Service (DoS) and DDoS features, it provides the first line of defense against hackers, network intruders and other malicious threats. Furthermore, its VPN feature supports data encryption over the Internet to ensure secure data transmission between two sites. VPNs can be used to replace a private leased line, allowing global interconnectivity with minimal expense.

The P-793H enables network administrators to allocate network resources to guarantee Quality of Service (QoS). The Media Bandwidth Management (MBM) function prioritizes services and increases productivity and efficiency in daily operations by tailoring bandwidth allocation to specific demands such as VoIP, video streaming, video-conferencing or interactive game applications.

The P-793H features a Fail-over and Fail-back WAN Backup Solution for complete network reliability. When the DSL connection fails, traffic is forwarded to either the backup ISDN or analog modem to maintain smooth data transmission. When the DSL connection is re-established, network traffic through the P-793H will resume again

Key Features

  • Ideal lease line replacement for small to medium size businesses
  • Symmetric data rates of up to 11.38Mbps
  • Port based VLAN
  • 4 wire bonding
  • 2-wire/4-wire Mode Selectable
  • TR-069 (HTTP) for Easy Deployment
  • Robust, State-of-the-Art Firewall Security
  • Media Bandwidth Management (MBM) and IP Quality of Service ideal for Voice and Data
  • Back to back configuration
  • LAN extensions service replacement

Technical Specs

G.SHDSL Compliance ITU-T 991.2 G.SHDSL and G.SHDSL.bis Standard
Symmetric data transmission speed up to 5.69 Mbps (2-wire mode) or 11.38 Mbps (4-wire mode)
Auto-negotiation rate adaptation and manually rate configuration
Server/Client mode selectable
ATM Protocol ATM Forum UNI 3.1/4.0 PVC
Support up to 8 PVCs
RFC 1483/2684 Multiple Protocol over AAL5
RFC 2364 PPP over AAL5
RFC 2516 PPP over Ethernet
LLC and VC Multiplexing
ATM QoS CBR, UBR, VBR
Firewall Security Stateful Packet Inspection
Prevent DoS and DDoS Attacks
Policy-based Access Control
Content Filtering
Packet Filtering
Real-time Attack Alert and Logs
Virtual Private Network 10 IPSec VPN Tunnels
IKE and Manual Key Management
AH and ESP Protocol
DES, 3DES and AES Encryption
SHA-1 and MD5 Authentication
Tunnel and Transport Mode Encapsulation
Network Protocol IEEE 802.1d Transparent Bridging
IP Routing: TCP, UDP, ICMP, ARP
RIP v1 and RIP v2
IP Multicast IGMP v1/v2
IP Management SUA/Multi-NAT Internet Sharing
VPN (IPSec, PPTP) Pass-through
Multimedia Applications Support
DHCP Server/Relay/Client
DNS Proxy
Dynamic DNS
UPnP Support
Network Management Web-based Configuration
FTP/TFTP for Firmware and Configuration Upgrade/Backup
Telnet Management
SNMP Support
Built-in Diagnostic Tools
DSL interface RJ-11 Connector for G.SHDSL Connection
LAN interface 4-port Switch, 10/100M Auto MDI/MDIX
Reset Button Yes
Console/Aux DB-9F RS-232 Cable for Local Management
DB-9M RS-232 Cable for Dial Backup
Status LED Indicator POWER, ETHERNET, DSL, INTERNET
Power 12V AC
Operating Temperature 0deg.C - 40deg.C
Operating Humidity 20% - 85%
Storage Temperature -20deg.C - 60deg.C
Storage Humidity 20% - 90%
Dimensions (WxDxH) 178 x 125 x 31mm / 7.01 x 4.92 x 1.22in
Weight 345g / 0.76lbs
