ZyXEL

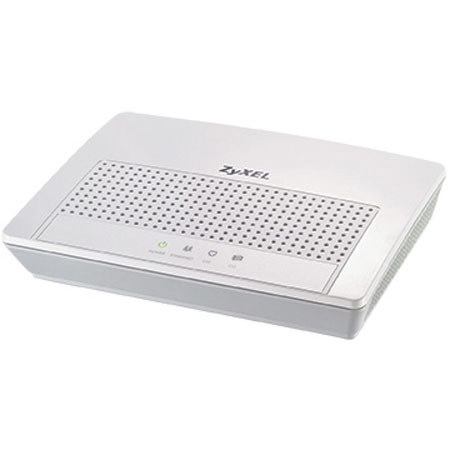

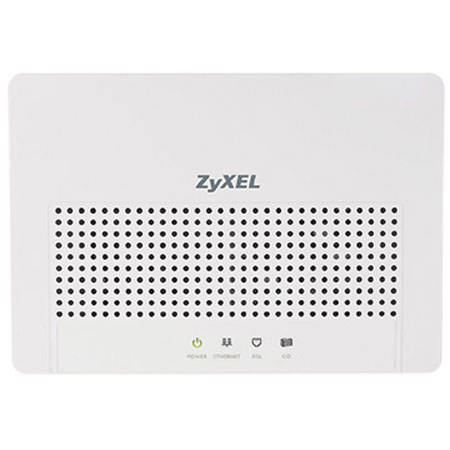

ZyXEL Prestige 871M VDSL Point-to-Point Modem

SKU: ZYP871M MFR: P871M
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$269.99 $11 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

ZyXEL P-871M is a VDSL point to point solution. Users could use a pair of P-871Ms to configure one as CO and the other as CPE modem to support VDSL bridge mode. This solution makes higher bandwidth leased-line application and LAN-to-LAN connectivity simple and easy. New revenue is possible with minimum installation time and expense. It proves to be a promising technology and revenue generation tool for service providers. P-871M could support ultra-high data rate to let ISP deploy many kinds of services in 1.5km long distance connections easy.

Key Features

  • With up to 80 Mbps for downstream and 40 Mbps for upstream bandwidths, the P-871M offers higher data transfer rates and provides bigger bandwidth than traditional ADSL gateways
  • P-871M pair allows service providers to offer point-to-point service, such as building-to-building, office to office connection, or buildings with very small number of subscribers, with easily and require no additional configuration

Technical Specs

VDSL Compliance Duplex Method: DMT
Ethernet over VDSL
ITU.T G.993.1 VDSL1
ITU.T G.993.2 VDSL2 (Profile 8a, 12a,)
Band Plan 997 and 998 support
Support 3/4 bands and U0 band
Support Up to 80Mbps downstream and 40Mbps upstream
Selectable CO or CPE mode
Network Protocol IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTx Ethernet
IEEE 802.3x Flow control
IEEE 802.1D transparent bridging
Flow control in full duplex mode
Back pressure in half duplex mode
Management CLI command via console
System control VDSL line rate and status through CO mode
FW upgrade via console
WAN One RJ45 interface for VDSL (over POTS/ISDN)
LAN One 10/100 Auto MDI/MDI-X RJ-45 interface
Power Switch One Push type button
External console port One DB9 interface
Power Requirement 9V AC 1000mA
Power supply:120V/230V/240V
Operating Temperature 0deg.C - 40deg.C
Operating Humidity 20%-85% RH (non-condensing)
Certification EMC:
EN55022 Class B
EN61000-3-2: 2000
EN61000-3-3: 1995+A1:2001
FCC Part 15 (Class B)
Safety:
CSA 60950-1
UL 60950-1
EN 60950-1:2001+A11
IEC 60950-1:2001
Dimensions (W x D x H) 189 x 132 x 40mm / 7.44 x 5.20 x 1.57in
Weight 307g / 10.83oz
