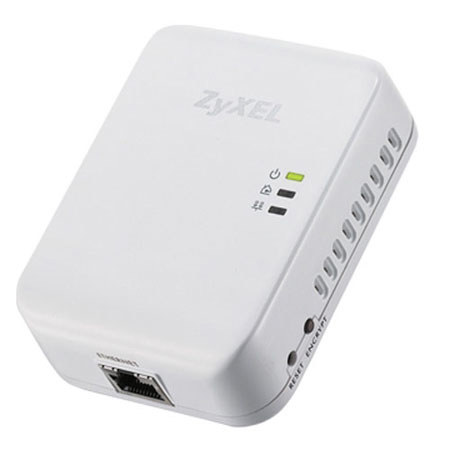

ZyXEL PLA401V3 Powerline Ethernet Adapter, Data Transfer Rate Upto 200 Mbps
Your card will only be charged once item ships.
Designed for high performance, your Powerline network can reach the data transfer rates up to 200Mbps. With advanced HomePlug AV technology, the PLA-401 v3 provides users the stable and high-speed Internet access. You just plug a pair of Powerline Ethernet Adapters into your house power outlets and easily enjoy high-definition video streaming and network transmission.
The advanced QoS features of ZyXEL's HomePlug AV Series improve the quality of multimedia streaming applications such as triple-play services, video streaming, high-speed Internet access and VoIP.
The ZyXEL PLA-401 v3, a new-generation Powerline Adapter consumes 16% less power when comparing to the existing Powerline Ethernet Adapters. Moreover, when there is no Ethernet link, the PLA-401 v3 will enter the "Standby" mode that reduces energy wasting for over 50% when comparing to the adapters without this feature.
Users can easily set up a secure connection between PLA-401 v3 and another HomePlug AV product within 2 minutes. By pushing an ENCRYPT button on your PLA-401 v3 and then you can set up your hassle-free Powerline network.
With the 128-bit Data Encryption Security (AES) feature, the PLA-401 v3 provides secure network connection for Internet access and network resource sharing. You may sit back to enjoy fast Internet surfing experience and secure file transfer while leaving the hassles to the PLA-401 v3.
|Data Transfer Rate||HomePlug AV 200 Mbps|
|Access methods||CSMA/CA channel-access schemes|
|HomePlug modulation||OFDM Symbol Modulation
QPSK,BPSK,ROBO Carrier modulation schemes
|Nodes||Up to 63 slaves with 1 master, 64 total devices
4 overlapping networks for neighbor networks with CCo failover
Up to 4 masters with up to 252 slaves
|Power Saving mode||Stand-by mode if link has been lost for a period|
|Power Consumption||240VAC: Full Operation 3.8W, Standby mode 1.8W
110VAC: Full Operation 2.9W, Standby mode 0.9W
|IGMP||IGMP snooping for Multicast to Multiple Uncast Mapping|
|Security||128-bit AES encryption
Push button security
|Quality of Service (QoS)||ToS, 802.1q
Support up to 4-level type QoS
Support up to 8-level VLAN priority field
|Frequency band||2MHz - 30 MHz|
|Ethernet interface||RJ-45 connector, 1-port 10/100M|
|Power rating||100-240VAC, 50/60Hz|
|LED indicators||3 LEDs
|Operating Temperature||0deg. C - 45deg. C|
|Storage Temperature||-20deg. C - 70deg. C|
|Operating Humidity||20% - 90% RH|
|Storage Humidity||20% - 95% RH|
|Dimensions (W x D x H)||80 x 65 x 95 mm (3.15"x 2.56"x 3.74")|
|Weight||160 g / 0.35lb|
