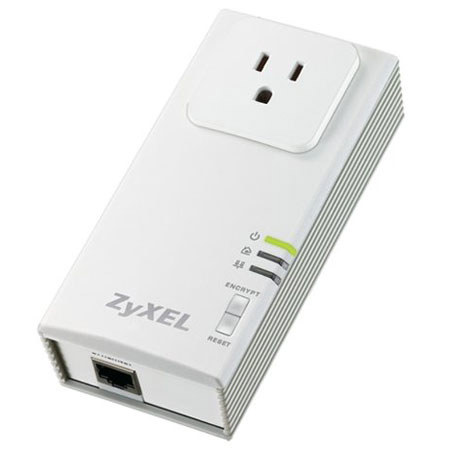

ZyXEL PLA407 Powerline Pass Through Ethernet Adapter, 200 Mbps Data Transfer Rates
What's Included With This Item:
- ZyXEL PLA407 Powerline Pass Through Ethernet Adapter
- Ethernet Cable
- Quick Start Guide
- Support CD
- ZyXEL Warranty
The powerline solution simplifies network setup by turning the existing power lines into a high-speed network. Just plug a PLA-407 with Ethernet link to a broadband modem into the power outlet in one room and plug another with link to a PC or any devices requiring Ethernet connection in the other rooms, you can easily and instantly connect to the network without laying complicated wiring at home. With advanced HomePlug AV technology and data transfer rates of up to 200Mbps, the PLA-407 provides users with stable and high-speed network environments to enjoy HD video streaming and sharing.
With the AC pass-through design, the PLA-407 provides both powerline network connection and power supply to multiple electrical devices at the same time. The PLA-407 enables users to easily get Internet access without the inconvenience of insufficient power outlets. For children safety, the power outlet has been designed to avoid electrical shocks caused by children inserting foreign objects into the receptacles.
With a built-in noise filter, the PLA-407 can suppress noise interference level down to 1/1000 and optimize powerline communication performance. The noise filter can effectively reduce noises generated by surrounding electronic equipments such as dryers, vacuum cleaners, lamps or mobile phone chargers plugged into the power outlets and ensure clean and stable signal quality on the powerline network.
Users can easily set up a secure connection between the PLA-407 and other HomePlug AV products within minutes. Just push the Encryption button, the security setup of the powerline network is done instantly. With the 128-bit Data Encryption Security feature, the PLA-407 provides a secure network connection for Internet access and network resource sharing without complicated setup procedures.
|Standard||Compliant with IEEE 802.3, 802.3u (10/100 Ethernet standard)
HomePlug AV1.1 with data transfer rate of up to 200 Mbps
|Access Methods||CSMA/CA channel-access schemes|
|HomePlug modulation||OFDM Symbol Modulation
QPSK,BPSK,ROBO Carrier modulation schemes
|Range||Max. range up to 500 meters (1,640 feet) over power line
Number of bridged device: 64
|IGMP||IGMP snooping for multicast to multiple unicast mapping|
|Security||128-bit AES encryption|
|Quality of Service (QoS)||ToS
Support up to 4- level of priority
Support up to 8-level VLAN priority field
|Frequency band||2MHz - 30 MHz|
|Ethernet interface||One 10/100Mbps Ethernet RJ-45 connector with auto MDI/MDIX support|
|Power rating||100-240VAC, 50/60Hz|
|AC outlet||EU Outlet: 16A Max.
US Outlet: 15A Max
|LED indicators||3 LEDs
|Encrypt button||One-push button to secure powerline network|
|Reset button||Reset the device to factory default setting|
|Power consumption||110V/120V: Full operation 2.6W, power- saving mode 0.8W
230V/240V: Full operation 3.9W, power- saving mode 1.6W
|Filter capability||Frequency range: 2MHz-30MHz
Insertion loss: -30dB - -50dB
|Operating environment||Temperature: 0deg.C - 40deg.C / 32deg.F- 104deg.F
Humidity: 20%- 90% RH
|Storage environment||Temperature: -20deg.C - 70deg.C /-22deg.F - 158deg.F
Humidity: 20% - 95% RH
|Dimensions (W x D x H)||66 x 35 x 138 mm (2.6 x 1.38 x 5.43 inch)|
|Weight||187g / 0.41lbs|
