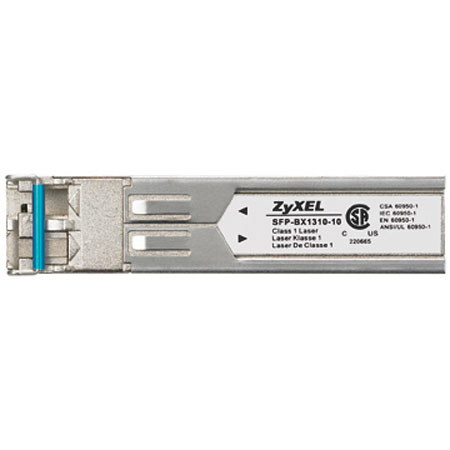

ZyXEL SFP-BX1310-10 SFP Transceiver follows industry standards to assure compatibility with switches from other manufacturers without barriers set by proprietary technologies. With ZyXEL's comprehensive Fast and Gigabit transceiver product range, users can just plug in the proper model to extend the physical network coverage. Independent transceiver design provides the highest network maintenance flexibility.
Transceivers can be added when required and infrastructure upgrade or transceivers repair can be done easily by just replacing the transceiver instead of the whole device. Two strands of fiber have traditionally been required for fiber optic networking to accomplish communications. In this case, one strand is reserved for transmitting, the other for receiving.
However, bidirectional, dual wavelength transceivers can accomplish communications over just one strand of fiber by using two separate optical wavelengths, one to receive and the other to transmit the signal. Transmission capacity can be expanded immediately without additional cost of running new fiber and the value of existing fiber plant can be maximized.
|Standard Compliance||125 Mbps IEEE 802.3u 100BASE-FX compliant (SFP-100FX-2)
125 Mbps IEEE 802.3ah 100BASE-LX10 compliant (SFP-100LX-20)
125 Mbps IEEE 802.3ah 100BASE-BX10-U compliant (SFP-100BX1310-20
125 Mbps IEEE 802.3ah 100BASE-BX10-D compliant (SFP-100BX1550-20 )
1.25 G IEEE 802.3ah 1000BASE-BX10-U compliant (SFP-BX1310-10)
1.25 G IEEE 802.3ah 1000BASE-BX10-D compliant (SFP-BX1490-10)
|Data Link Protocol||Gigabit Ethernet|
|Data Transfer Rate||1.25 Gbps|
|Optical Wave Length||1310 (TX) / 1490 (RX) nm|
|Max Transfer Distance||6.2 miles|
|Interfaces||1 x network - Ethernet 1000Base-BX-U - LC x 2|
|Compatible Slots||1 x SFP (mini-GBIC)|
|Operating Temperature||32deg.F - 158deg.F / 0deg.C - 70deg.C|
|Storage Temperature||-40deg.F - 185deg.F / -40deg.C - 85deg.C|
|Relative Humidity||5% - 95%|
|Safety Certification||Class 1 Laser
21 CFR 1040.10 and 1040.11 compliant
|Dimensions (W x D x H)||2 x 0.5 x 0.5" / 56 x 13.4 x 12.46 mm|
