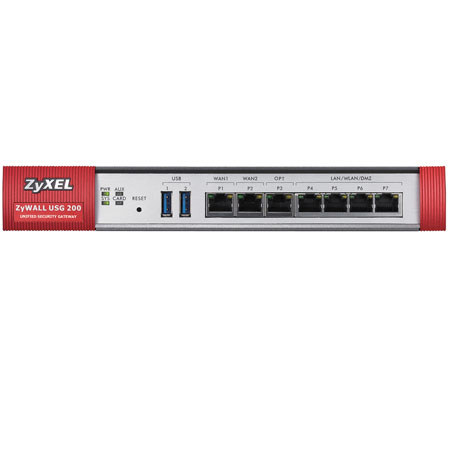

ZyXEL ZyWALL USG200 Unified Security Gateway with 100 VPN Tunnels, SSL VPN, 7 Gigabit Ports

ZyXEL USG200: Picture 1 thumbnail ZyXEL USG200: Picture 2 thumbnail ZyXEL USG200: Picture 3 thumbnail

About ZyXEL USG200

The ZyWALL USG 200 is a high performance, deep packet inspection security platform for small to medium sized offices. This multi-layered security safeguards your organization's customer and company records, intellectual property and critical resources from external and internal threats. Its fanless design allows noiseless heat dissipation, making it perfect for your desk.

ZyXEL USG200 Features

  • The ICSA-certified, stateful inspection firewall protects the network and vital Internet services like e-mail, Web browsing, servers and file transfers
  • For protection against viruses and spyware, choose the ICSA-certified ZyXEL Anti-Virus or one powered by Kaspersky Labs
  • The IDP engine protects your network from intrusions such as Trojans and worms
  • Use IPSec VPN to secure connections to branch offices, partners and headquarters. Road warriors and telecommuters can use SSL or L2TP VPN to securely access the company network without having to install VPN software
  • Application Patrol controls who can use what IM and P2P applications like MSN and BitTorrent and even who can use specific features within an application
  • The anti-spam feature can tag or discard unsolicited commercial or junk e-mail
  • User-aware configuration lets you control access to applications or resources and apply security scans by user or user group
  • Bandwidth management lets you prioritize time-sensitive applications like VoIP and video conferencing
  • Multiple WAN ports let you use multiple ISP links and load balancing to enhance traffic. Throughput, optimize bandwidth usage and help ensure continuous uptime if a link goes down
  • Along with your regular user name and password, use the ZyWALL OTP (One Time Password). hardware token* to generate a new PIN code each time you log in
  • Use the extension card slot and USB ports for multiple 3G wireless WAN connections

ZyXEL USG200 Specifications

Clientless Secure Remote Access(Reverse Proxy Mode)
SecuExtender (Full Tunnel Mode)
Unified Policy Enforcement
Supports Two-factor Authentication
Customizable User Portal
User Licenses
Routing Mode/Bridge Mode/Mixed Mode
Layer 2 Port Grouping
Tagged VLAN (802.1Q)
Virtual Interface (Alias Interface)
Policy-Based Routing (User-Aware)
Policy-Based NAT (SNAT/DNAT)
RIP v1/v2
IP Multicasting (IGMP v1/v2)
DHCP Client/Server/Relay
Built-in DNS Server
Dynamic DNS
Internal User Database
Microsoft Windows Active Directory
External LDAP/RADIUS User Database
ZyWALL OTP (One Time Password)
Forced User Authentication (Transparent Authentication)
System Management 1
Role-Based Administration
Multiple Administrator Login
Multi-Lingual Web GUI (HTTPS/HTTP)
Object-Based Configuration
Command Line Interface (Console/Web Console/SSH/TELNET)
Comprehensive Local Logging
Syslog (send to up to 4 servers)
E-mail Alert (send to up to 2 servers)
System Management 2
Real-Time Traffic Monitoring
System Configuration Rollback
Text-Based Configuration File
Firmware upgrade via FTP/FTP-TLS/Web GUI
Advanced Reporting (Vantage Report)
Centralized Network Management (Vantage CNM)
3G Support
Advanced Wireless Security Transmission with WEP Encryption and WPA/WPA2 Support
PCMCIA: Sierra Wireless AC850
USB: Huawei E220
Standards Compliance
HSF (Hazardous Substance Free): RoHS and WEEE
EMC: FCC Part 15 Class B, CE-EMC Class B, C-Tick Class B, VCCI Class B
Safety: CSA International (ANS/UL60950-1,CSA60950-1, EN60950-1, IEC60950-1)
Memory size
256 MB DDR2 RAM/256 MB Flash
GbE x 7 (RJ-45)
2 x WAN, 1 x OPT, 4 x LAN/DMZ/WLAN
Auto-negotiation and Auto MDI/MDI-X
RS-232 (DB9F)
RS-232 (DB9M)
LED Indicator
Reset Button
Expansion Card Slot
USB Ports
Power Requirements
Input: 100 - 240 V; 1.2 A, 50 - 60 Hz
Output: 12 V; 3.5 A
Operating temperature
0deg.C - 50deg.C/32deg.F - 122deg.F
Storage temperature
-30deg.C - 60deg.C/-22deg.F - 140deg.F
Operating humidity
5% - 90% (noncondensing)
ICSA Certified Firewall
ICSA Certified IPSec VPN
ICSA Certified Anti-Virus
Dimensions (W x D x H)
242 x 175 x 35.5 mm/9.5 x 6.9 x 1.4 in
1.2 Kg/2.6 lbs
