Dane-Elec Memory

Dane-Elec 2 GB Compact Flash Memory Card

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

We’re sorry, this item is no longer available. See similar Items

About this item

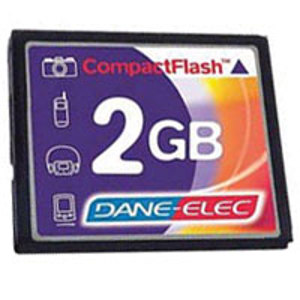

The DANE-ELEC CompactFlash memory card, type 1, is a non volatile memory extension. It is generally used in digital cameras, handheld computers and laptops via a PCMCIA adaptor. DANE-ELEC CompactFlash memory cards will help you transfer your data easily and quickly with no loss of data over time.

Summary of Customer Reviews

Customers most agreed on the following attributes:
Reliable (10) , Compact (3) , Fast (3) , Rugged (3) , Versatile (3)
Best Uses:
Digital photography (4) , Professional cameras (4) , Travel (4) , Casual cameras (3)
Reviewer Profile:
Enthusiast (5) , Professional (4) , Casual user (2) , Mostly music files (1)

Adorama Expert advice

Key Features

  • Complies with the "CompactFlash Association" standard specifications, version 1.4
  • Complies with ATA standard specifications (via PCMCIA adaptor) and IO/ Card mode
  • Compatible with True IDE mode
  • AND or NAND type Flash memory
  • Capacity to 8GB and more in the future
  • Low power consumption

Technical Specs

Type Of Media Compact Flash Card Type 1
MTBF (mean time between failures) 1,000,000 hours
Number of insertions 10,000 minimum
Data retention 100,000 hours
Endurance 1,000,000 cycles (read/write)
Data reliability < 1 error/1014 bits in read mode
Preventive maintenance none
Width/Thickness/Height 42.8mm/ 3.3mm/ 36.4mm
Weight 11.4 g max
Capacity 2 GB
Start Time: Standby/Write 2.5 ms max.
Start Time: Standby/Read 2.0 ms max.
Start Time: Initialization 50 ms typical / 400 ms max
Data Transfer Rate: Write from 10x to 22x
(1.5 MB/sec. to 3.15 MB/sec.)
Data Transfer Rate: Read up to 43x
Voltage (dual voltage ) 3.3V±5% / 5V±10%
Power Consumption: Standby <200µA / <500µA
Power Consumption: Reading 20 mA max / 40 mA max
Power Consumption: Writing 25 mA max / 45 mA max
ECC Operation Yes
Operating Temperature 0 to 60 °C
Storage Temperature - 40 to 85 °C
Tolerated Humidity 8 95 %
Tolerated Vibrations 15G maximum "peak to peak"
Tolerated Impacts 2KG maximum
