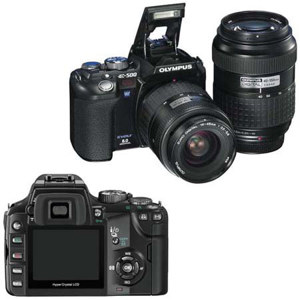

Olympus EVOLT-500 Digital SLR Camera, 8 Megapixel, with 14-45mm f/3.5-5.6 EZ, and 40-150mm f/3.5-4.5 EZ Digital Zoom Lenses
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.Need help? Call 800-223-2500 / 212-741-0052
Get the best value shopping our selection of used gear.
Shop UsedWe Pay top dollar for your used photo & video equipment.
Get A Quote
Need help? Call 800-223-2500 / 212-741-0052
• Premium picture quality and superb performance come easy with this comfortable to handle digital SLR. At a time when we want complex things to become simple, the EVOLT E-500 succeeds in doing so with a sleek, lightweight design for impressive portability and advanced controls and options that can be accessed with minimal effort.
Bursting with speed and producing spotless pictures with exceptional color and detail, the EVOLT E-500 is tailor-made for anyone to use while capturing the imagination in the process.
25 SHOOTING MODES:
• The EVOLT E-500 makes it so simple to capture great pictures with 15 easily selectable scene modes and 10 exposure modes that all you need to do is point it in the right direction.
ALL DIGITAL LENSES:
• Each pristine Zuiko digital-specific lens is perfectly matched to the camera's image sensor and features an internal CPU for direct communication with the camera to produce super sharp, bright, colorful pictures from edge-to-edge.
BIG, BRIGHT 2.5" HYPERCRYSTAL LCD:
• View and share pictures with outstanding color and contrast - up to a 160-degree viewing angle, from left to right and up and down - on this super high-resolution 2.5" HyperCrystal LCD that makes pictures stand out and menu options and icons simple to see.
DUAL MEDIA SLOTS:
• Shoot, store or backup pictures on your preferred choice of an xD-Picture Card, CompactFlash or both with the convenience of two media card slots SPEED AND QUALITY WITH TRUEPIC:
• The exclusive TruePic TURBO Image Processor delivers a camera that responds with impressive speed from the moment it's turned on and smooth, colorful images every time.
SPOTLESS PICTURES:
• People don't promote what they can't fix. That's why Olympus is the only one to speak up against dust and deliver the exclusive Supersonic Wave FilterTM that vibrates 35,000 times per second to eliminate dust from the image sensor and any concern you'll ever have about changing lenses...anywhere.
ADVANCED 8 MEGAPIXEL CCD:
• The full-frame transfer CCD is designed to capture more information from each individual pixel to help you receive brilliant results from edge-to-edge with a full range of color, contrast and detail.
• Patented Dust Reduction System uses the Supersonic Wave Filter (SWF) to loosen and remove any and all dust and debris from the image sensor. The SWF vibrates at a rate of 35,000 times per second upon start-up as well as when manually activated - and is unnoticeable to the user - for clear, aberration-free images.
This removal of dust also means you never have to worry about changing lenses because if anything gets in, the SWF will get it out.
Capture sharp, detailed photos quickly. The exclusive TruePic TURBO Image Processor provides accelerated performance such as a faster start-up time, rapid shot-to-shot speed, and quicker playback of smooth, detail-rich photos.
| Type | Interchangeable Digital SLR Camera |
| Media | Compact Flash Card (Type I, II), Micro Drive, xD Picture Card (Dual Slot) |
| Imaging Size | 17.3mm x 13.0mm |
| Lens Mount | Four Thirds Mount |
| Compatible Lens | Zuiko Digital, Four Thirds System Lens |
| Type | 4/3 type Full Frame Transfer Type CCD solid-state image sensor |
| Effective Pixel Number | 8.15 million pixels |
| Aspect | 4:3 |
| Filter Array | Primary color filter (RGB) |
| Dust Protect Filter | Yes - Supersonic Wave Filter |
| Recording Format | DCF (JPEG), TIFF, RAW |
| Recording Mode | JPEG, TIFF Ver. 6.0 (Exif 2.2), RAW (12bit |
| RAW + JPEG Recording | Yes: RAW + SHQ/HQ/SQ modes |
| File Size | RAW: 3264 x 2448 Uncompressed Approx. 13.6 MB TIFF: 3264 x 2448 Uncompressed Approx. 24.5 MB SHQ: 3264 x 2448 1/2.7 Approx. 6.4 MB HQ: 3264 x 2448 1/4 / 1/8 1/12 Approx. 4.5 / 2.5 / 1.8MB |
| File Size | SQ: 3200 x 2400 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 6.2 / 4.4 / 2.4 / 1.8 MB 2560 x 1920 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 3.7 / 2.5 /1.3 / 0.8 MB 1600 x 1200 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 1.5 / 1.0 / 0.5 / 0.4MB 1280 x 960 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 0.9 / 0.6 / 0.3 / 0.2 MB 1024 x 768 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 0.6 / 0.4 / 0.2 / 0.2 MB 640 x 480 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 0.3 / 0.2 / 0.1 / 0.1 MB |
| Type | Eye level Penta Dach Mirror type Optical View Finder |
| View field coverage | Approx. 95% |
| Magnification | Approx. x 0.9 with 50 mm Lens set to infinity on -1diopter |
| Eye Point | Approx. 10mm |
| Diopter Adjustment | Built-in type -3.0 to +1.0 diopter |
| Focusing Screen | Fixed type |
| Mirror | Quick Return Mirror |
| Viewfinder information | AF frame, Shutter speed, Aperture value, AF confirmation mark, Flash, White balance, AE lock, Number of storable still pictures, Exposure compensation valueindication, Metering mode, Battry check, Exposure mode, Record mode |
| Eye Piece Shutter | Interchangeable type, EP-4 supplied |
| Depth of Field Preview | One-touch WB Button (Customizable) |
| Type | HyperCrystal LCD (TFT Color LCD) |
| Size | 2.5 inch |
| Pixel Number | 215,250 pixels |
| View field coverage | Approx. 100% |
| Brightness Control | +/- 7 steps |
| Type | TTL Phase Difference Detection System |
| Focus Mode | Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus / S-AF + MF/ C-AF + MF |
| Focus Area | 3 points |
| Detection Range | EV 0 to 19 (ISO 100) |
| Focus Area Selection | Automatic Selectable / Manual Selectable |
| AF Assist Lamp | Built-in Flash type |
| AF Lock | Locked by first position of Shutter Button/ AE/AF Lock Button (Customizable) |
| Focus Tracking | Available in Continuous AF Mode |
| Manual Focus | Available by rotation of a Lens Focus ring Available for setting Manual focus operation in AF Mode |
| Light Metering Mode | Digital ESP/Center Weighted Average/Spot (Approx. 2%)/Spot with Highlight, shadow control |
| Detection Range | Digital ESP/Center Weighted Average; EV 1 to 20 (50mm F2, ISO 100) Spot/Spot with Highlight, shadow control; EV 3 to 17 (50mm F2, ISO 100) |
| Exposure Mode | Full Auto, Program with Program Shift/Shutter Priority/Aperture Priority/Manual/Scene Program AE/Scene Select AE |
| Scene Program | Portrait/Landscape/Macro/Sports/Night Scene & Portrait |
| Scene Select | Portrait/Landscape/Landscape & Portrait/Night Scene/Night Scene & Portrait/Firework/Sunset/Macro/Sports/High-Key/Low-Key/ Documents/Beach & Snow/Candle/Children |
| Sensitivity | Auto: ISO100 to 400 Manual: ISO100 to 400, Expandable to 1600 (in each 1/3 EV step possible) (Noise filter is selectable in ISO boost) |
| Exposure Compensation | Up to +/- 5 EV in each 1, 1/2, or 1/3 EV step |
| AE Lock | Locked by first position of Shutter Button / AE/AF Lock Button (Customizable) |
| Exposure Bracketing | 3 Frames in +/- 1, 2/3, 1/2 or 1/3 EV step |
| WB mode | Auto WB, Preset WB, Custom WB, One-touch WB |
| Preset WB | Lamp1(3000k) / Fluorescent 1 (4000k) / Fluorescent 2 (4500k) / Fluorescent 3 (6600k) / Daylight (5300k) / Claudy (6000k) / Shade (7500k) |
| WB Compensation | R-B/G-M up to +/- 7 step in each 2mired step for each Auto / Preset setting |
| Custom WB Compensation | up to +/- 7 step 2000-6000K in 100K steps 6000-8000K in 200K steps 8000-10000K in 500K steps |
| One-touch Mode | 4 one-touch Settings |
| WB Bracketing | 3 Frames with +/- 4/8/12 mired steps |
| Picture Mode | 3 Frames with +/- 4/8/12 mired steps |
| Color Space | sRGB/AdobeRGB |
| Saturation | 5 levels in each Vivid, Natural and Muted mode |
| Sharpness | 5 levels in each Picture mode |
| Contrast | 5 levels in each Picture mode |
| Type | Electronic Controlled Focal Plane Shutter |
| Shutter Speed | A,P,Ps: 1/4000 to 60 Sec. (depends on conditions) S: 1/4000 to 60 Sec. M: 1/4000 to 60 Sec. and Bulb (up to 8 minutes) AUTO: 1/4000 to 2 Sec. Scene: 1/4000 to 2 Sec (depends on selected mode) |
| Self Timer | 12 or 2 Sec (possible to cancel) |
| Remote Control | Wireless with bulb function by RM-1 (RM-1:option) |
| Drive Mode | Single/Sequential Shooting |
| Sequential Shooting Speed | Approx. 2.5 fps. |
| Max. Frame Number on Sequential Shooting | RAW; TIFF:4 Frames JPEG (HQ, SQ); Up to full capacity with high speed Media (with SanDisk Extreme III CF card on default image quality mode {HQ 1/8}) |
| Control Panel Information | Flash mode, Flash compensation value indication, Metering mode, Focus mode, Record mode, Aperture value, Shutter speed, Battery check, Number of storable still pictures, Image quality adjustment, ISO, Color space, Mono tone, Hi/Lo Key, White balance, Remote control, Self-timer, Exposure level indicator, Exposure compensation indicator, AF frame, Number of storable sequential pictures, (Continued) |
| Control Panel Information | (Continued) Exposure compensation value indication, Auto bracket, Noise reduction, Single-frame shooting/Sequential shooting, Color saturation compensation value indication, Sharpness compensation indication value, AE bracket, WB bracket |
| Type | TTL Auto FP/TTL Auto for Olympus Dedicated Flash |
| Built-in Flash | Yes. Flash Guide Number: 13 |
| Flash Modes | Auto/Red-eye Reduction/Slow synchro/ Fill-in for Exclusive Flash |
| X-Sync Speed | X = 1/180 Sec. |
| Intensity Control | Up to +/- 2 EV in each 1, 1/2, or 1/3 EV step |
| Syncro Timing | Front curtain and Rear curtain selectable |
| Multi Flash Control | Yes (control built in and ext FL flash independently) |
| Display Mode | Single/Zoom ( 2/3/4/6/8/10/14x)/Index (4/9/16/25 frames)/Calendar View/Slide Show/Light Box View |
| nformation | Exposure Mode, Metering Mode, Shutter Speed, F-Stop, Compensation level, ISO, Color Space, WB Mode, WB Compensation Level, Focal Length, Focus Area, File type, Picture Mode |
| Erase Mode | Single/All/Selected |
| Image Protect Mode | Single |
| Menu category | REC1, REC2, Play Back, Custom, Setup |
| Languages | English, German, French, Spanish, Japanese, Chinese, and Korean (depending on region) |
| Custom Reset | 2 types |
| Personal Computer Interface | Full Speed USB 2.0 (12Mb/s) |
| Personal Computer Connector | USB connector: MiniB |
| Video Signal Output | Video Out Jack (NTSC or PAL selectable) |
| X-synchronization Socket (PC Socket) | Hot Shoe |
| Remote Cable | N/A |
| Battery | Rechargeable Li-ion battery Pack BLM-1/3x CR123A with LBH-1 |
| Battery Check | Automatic check |
| Sleep Mode | Yes (1, 3, 5, 10 min. selectable) |
| Date/Time saving | Approx. 5 months using the built-in battery |
| Dimensions | 5 x 3.7 x 2.6 in. (129.5 x 94.5 x 66 mm) |
| Weight | 15.34 oz. (435 g) [body only] |
| Temperature | Operating Range: 32°F to 104°F ( 0°C to 40°C); Storage Range: -4°F to 140°F (-20°C to 60°C) |
| Humidity | Operating Range; 30 to 90%, Storage Range; 10% to 90% |
