Noblex

Noblex 175 UX 6X17 120mm Medium Format Rotating Lens Panoramic Camera w/Slow Shutter Speeds, 5mm Shift & Multi Exposure

SKU: NB175U MFR: 8011
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available.

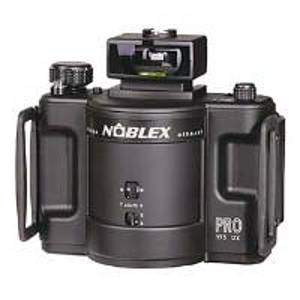

Noblex 175 UX 6X17 120mm Medium Format Rotating...: Picture 1 regular

About this item

The 175 UX which uses 120 Roll Film ONLY is for the photographer who demands a Larger Image Size. The 175 is ideal for Stock photography, group portraiture, nature photography, architecture, landscapes, interiors, & street scenes. The combination of the 6x17 format, and the Noblar T 6.5 75 mm lens allows the photographer to capture stunning panoramic images. The 175 UX incorporates Shift, Focus, as well as the inclusion of the Slow Speed Shutter Module, allowing rotations down to 2 full seconds, ideal for nightime CityScapes.

All Noblex Cameras operate the same way. Noblex Cameras are "SWING LENS" cameras, that is, the lens is recessed into a revolving drum, which rotates a complete 360 degrees. During the first half of this revolution, the lens is hidden from view. Also during this period of time, the lens, through a geared system, gets" up to speed", a speed which is electronically maintained during the second half of the rotation (because of this, banding, common with spring wound swing lens cameras, is eliminated). As the lens goes through the second half of this rotation, the exposure is made. Light entering through the lens is exposed onto a CURVED FILM PLANE, which results in a panoramic image that is distortion free (it is because of the curved film plane that the image is distortion free, edge to edge). The lens always maintains the same distance from the film plane.

The body of all Noblex Cameras are cast from a single piece of AIRCRAFT STRENGTH ALUMINUM. Each camera is hand produced from components manufactured to factory specifications. The main rotational drum is GEAR DRIVEN, not spring driven. All Noblex Cameras use NOBLAR "T" (Tessar design: 4 element, 4 grouping) lenses. Resulting images are tack sharp, edge to edge.

Key Features

  • Exposure times 1/8-2 secs with long time exposure module

Technical Specs

Type 6x17 Medium Format Panoramaic Camera
Lenses Noblar T 75mm F/6.5
Focusing 3 Point focus lens (20',40' & infinity)
Film 60mm roll film no. 120
No. of Exposures per Film 4
Shutter 1/250, 1/125, 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1, 2s
Power Source 4 x AA alkaline batteries
Notes & Special features Multiple Exposure Possibility
Circular Level in Finder
Connection for Panolux
"Shift" Upwards Height (mm) 5
Picture Angle Horizontal 132 degrees
Picture Angle Vertical 37 degrees
Picture Angle Diagonal 138 degrees
