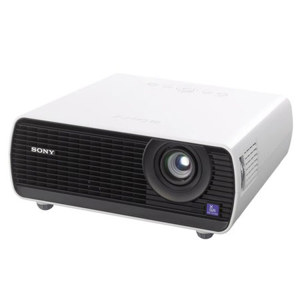

Sony VPLEX100 XGA 2300 Lumens Portable Projector, 1024x768 Resolution, 2200:1 Contrast Ratio, 20 Language Onscreen Display

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

We’re sorry, this item is no longer available. See similar Items

About this item

The Sony VPLEX100 XGA Projector is a full-featured 2,300 lumen, 2,200:1 contrast ratio projector. Its 0.63" 3LCD imaging panels (the parts that create the image) deliver sharp, bright images with superior detail. Smooth, seamless color combined with an unparalleled grayscale range deliver incredible detail to every image displayed by the VPL-EX100. Sony has a 210W high-pressure mercury lamp with a projected life of 6,000 hours in Low mode (Eco feature) which is synchronized with the long-lasting filter so that both are replaced at the same time. This saves precious minutes of downtime in feature films or presentations.

The Eco mode menu is easily accessed on the projector keypad or the remote control. Other energy saving features include low power consumption and a Power Saving mode which shuts down the projector if no signal is detected in 10 minutes. The highly-efficient front fan exhaust enables what Sony calls Off and Go which virtually eliminates cool-down time and has you packed and off to your next destination immediately.

It's got a world-ready 100 - 240 volt 50 / 60Hz power supply. It can handle NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60 and SECAM video signals and it has a 20 language onscreen display (OSD). The VPL-EX100 also decodes and displays closed captioning from programs that provide it, benefiting audience members with hearing impairments. It also helps people with native languages other than English or those who are in noisy environments such as gyms and trade shows.

Lastly, just to make sure that the lightweight VPL-EX100 doesn't depart without leaving a forwarding address, security is provided by anti-theft anchor points, as well as password and keypad lockouts.

What's Included With This Item

  • Sony VPLEX100 XGA 2300 Lumens Portable Projector
  • RMPJ7 Remote Commander
  • Carrying Case
  • Lithium Battery (CR2025)
  • Quick Reference Manual
  • AC Power Cord
  • Warranty Card
  • Sony Warranty

Key Features

  • Energy-efficient Design: By incorporating a newly developed high-performance lamp and advanced lamp-control technology, the VPL-EX100 delivers an extremely long lamp replacement time of 6,000 hours
  • Lamp and Filter Synchronized Maintenance: When it's time to clean the air filter, a reminder message is clearly displayed on screen. Like the lamp, the air filter has an approximate 6,000-hour cleaning cycle
  • Eco Mode Button: With a single push of the Eco mode button on either the projector or the supplied Remote Commander unit, users can switch to the Eco setting
  • Power Saving Mode: If no signal is input for 10 minutes, the projector lamp will automatically turn off
  • Low Power Consumption: The VPL-EX100 offers remarkably low power consumption, allowing users to make significant savings on their electricity expenses
  • Simple Projector Replacement: The standard 1.3x zoom lens enables installation flexibility when replacing an existing projector with the VPL-EX100. There's no need to change ceiling mount positions
  • 3LCD Projection Offers Brilliant Color Performance: The VPL-EX100 adopts a 3LCD projection system incorporating three LCD panels. This system enables each projector to present bright and natural images
  • 12-bit 3D Gamma Correction: The VPL-EX100 incorporates 12-bit 3D Gamma Correction circuitry to perform highly accurate gamma correction, achieving smoother gradations and a richer gray scale
  • I / P Conversion and Film Mode: The video signal processing technology that Sony has incorporated in the VPL-EX100 offers I / P conversion and 2 - 3 pull-down to generate high-quality images with outstanding clarity
  • XGA Resolution: XGA resolution of 1,024 x 768 contains 60% more pixels compared to SVGA resolution of 800 x 600. As a result, XGA resolution delivers much greater detail and finer images
  • Off and Go: Once a presentation is complete, the VPL-EX100 can be immediately moved to the next location, simply by turning it off and unplugging the AC power cord - there's no need to wait for the fan to stop
  • Front Exhaust: Users can run an optimum presentation even in a quiet environment and participants seated to the side of the projector are not bothered by hot air and noise
  • Image Freeze: The Image Freeze function can display a freeze frame to allow the presenter to prepare or switch to the next image
  • Auto Keystone Adjustment corrects any trapezoidal distortion automatically.
  • Picture Muting: If the picture needs to be turned off momentarily, all it takes is a single button-press on the remote control.
  • 6 Picture Modes: Six picture modes (Dynamic, Standard, Game, Living, Cinema and Presentation) can be selected to suit the nature of the source material.
  • Security Pack: Security lock (password and mechanical), security bar and panel key lock
  • Direct Power On / Off: Direct power control using a circuit breaker on the switch board
  • High Altitude Mode: For reliable projector operation at high altitude

Technical Specs

Projector Display System 0.63" (16 mm) x3
Native Resolution XGA (1,024 x 768)
Number of Pixels 2,359,296 (1,024 x 768 x3)
Lumens Brightness 2,300 / 1,800 / 1,500 (High / Standard / Low)
Contrast Ratio 2,200:1
Aspect Ratio 4:3
Focus/Zoom Adjusting Manual / Manual 1.3x
Lens Shift No
Lamp (Bulb) 210W high-pressure mercury lamp
Lamp life: 3,000 / 4,500 / 6,000 hours (High / Standard / Low modes)
Filter cleaning cycle: 6,000 hours maximum
Recommended Projection Size 30 - 300" (0.762 - 7.62 m)
Built-in Speaker 1W x1 mono
Scanning Frequency Horizontal: 14 to 93kHz
Vertical: 47 to 93Hz
System NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Computer Input Maximum input signal resolution: 1,600 x 1,200 (resizing display)
Panel display resolution: 1,024 x 768 pixels
HDTV Compatibility 720 / 60p, 720 / 50p, 1080 / 60i, 1080 / 50i
Keystone Correction Vertical: +/-30Deg.
Languages English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian
I/O Connections RGB / Y PB PR input connector: Mini D-sub 15-pin (female) x1
Audio input connector: Stereo mini jack x1
S-video input connector: Mini DIN 4-pin x1
Audio input connector: Pin jack (shared with video in) x2
Video input connector: Pin jack x1
Audio input connector: Pin jack (shared with S-video in) x2
Monitor output connector: Mini D-sub 15-pin (female) x1
Audio output connector: Stereo mini jack (variable out) x1
RS-232C connector: D-sub 9-pin (female) x1
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Control RS-232 x1
Operating Conditions Operating temperature: 32 to 104Deg.F (0 to 40Deg.C)
Humidity: 35 - 85% (no condensation)
Power Requirements 100 - 240 V AC, 50 / 60Hz
Power Consumption Normal operation:
AC 100 - 120V: 300W / 265W / 235W
AC 220 - 240V: 290W / 255W / 225W
AC 100 - 120V: 8W / <1.0W (Standard / Low)
AC 220 - 240V: 10W / <1.0W (Standard / Low)
Remote Control IR wireless
Dimensions 12.3 x 5.0 x 10.9" (313.4 x 129.6 x 278.3 mm)
Weight 7.05 (3.2 kg)
