About this item

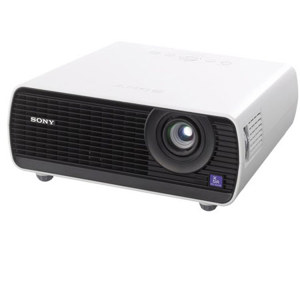

The Sony VPLEX145 XGA 3100 Lumens Projector offers a powerful 3,100 lumens of brightness backed with a crisp 4,000:1 contrast ratio, rendering sharp vivid 1,024 x 768 resolution images on screens up to 300" (7.6 m). Its 0.63" 3LCD imaging panels (the parts that create the image) deliver smooth, seamless color combined with an unparalleled grayscale range. Energy savings start with the 210W high-pressure mercury lamp. It boasts a projected life of 6,000 hours in Low mode and since it's is synchronized with the durable filter, both are replaced at the same time saving precious minutes of downtime during feature films or presentations.

The Eco menu, which offers Low, Medium and High operating modes, is easily accessed on the projector keypad or the remote control. Other energy saving features include low power consumption and a Power Saving mode which shuts down the projector if no signal is detected in 10 minutes. The highly-efficient front fan exhaust enables what Sony calls Off and Go, which virtually eliminates cool-down time and has you packed and off to your next destination in record time.

The VPL-EX145 is equipped to use your local network (LAN) thanks to its wired RJ-45 (Ethernet) jack. You can make presentations from any PC on your network as well as managing, monitoring and controlling it remotely. You can also send important announcements like rescheduling information or weather updates to a whole fleet of VPL-145s. They, in turn can email you individual status data detailing conditions like excessively high temperature, imminent lamp burn-out and other maintenance issues.

It's got a world-ready 100 to 240 volt 50 / 60Hz power supply. It can handle NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60 and SECAM video signals and it has a 20 language onscreen display (OSD). The VPL-EX145 also decodes and displays closed captioning from programming that provides it, benefiting those in your audience with hearing impairments. It also helps people with native languages other than English as well as those in noisy environments such as gyms and trade shows. Lastly, just to make sure that the lightweight VPL-EX145 doesn't depart without leaving a forwarding address, security is provided by anti-theft anchor points, as well as password and keypad lockouts.

What's Included With This Item

  • Sony VPLEX145 XGA 3100 Lumens Projector
  • RM-PJ7 Remote Commander
  • Lithium Battery (CR2025)
  • Mini D-Sub 15-Pin Cable
  • Lens Cap
  • Operating Instructions
  • Quick Reference Manual
  • AC Power Cord
  • Sony Warranty

Key Features

  • Energy-efficient Design: By incorporating a newly developed high-performance lamp and advanced lamp-control technology, the VPL-EX145 delivers an extremely long lamp replacement time of 6,000 hours
  • Lamp and Filter Synchronized Maintenance: When it's time to clean the air filter, a reminder message is clearly displayed on screen. Like the lamp, the air filter has an approximate 6,000-hour cleaning cycle
  • Eco Mode Button: With a single push of the Eco mode button on either the projector or the supplied Remote Commander unit, users can switch to the Eco setting
  • Power Saving Mode: If no signal is input for 10 minutes, the projector lamp will automatically turn off
  • Low Power Consumption: The VPL-EX145 offers remarkably low power consumption, allowing users to make significant savings on their electricity expenses
  • Simple Projector Replacement: The standard 1.3x zoom lens enables installation flexibility when replacing an existing projector with the VPL-EX145. There's no need to change ceiling mount positions
  • 3LCD Projection Offers Brilliant Color Performance: The VPL-EX145 offers high picture quality and brightness, thanks to the combination of an advanced generation of inorganic LCD panels that utilize Sony's BrightEra technology with a 3LCD projection system
  • 12-bit 3D Gamma Correction: The VPL-EX145 incorporates 12-bit 3D Gamma Correction circuitry to perform highly accurate gamma correction, achieving smoother gradations and a richer gray scale
  • I / P Conversion and Film Mode: The video signal processing technology that Sony has incorporated in the VPL-EX145 offers I / P conversion and 2 - 3 pull-down to generate high-quality images with outstanding clarity
  • XGA Resolution: XGA resolution of 1,024 x 768 contains 60% more pixels compared to SVGA resolution of 800 x 600. As a result, XGA resolution delivers much greater detail and finer images
  • Off and Go: Once a presentation is complete, the VPL-EX145 can be immediately moved to the next location, simply by turning it off and unplugging the AC power cord. There's no need to wait for the fan to stop
  • Front Exhaust: Users can run an optimum presentation even in a quiet environment and participants seated to the side of the projector are not bothered by hot air and noise
  • Image Freeze: The Image Freeze function can display a freeze frame to allow the presenter to prepare or switch to the next image
  • Network and Control: Controls and monitors projector status. Compatible with various control systems
  • Auto Keystone Adjustment corrects any trapezoidal distortion automatically
  • Picture Muting: If the picture needs to be turned off momentarily, all it takes is a single button-press on the remote control
  • 6 Picture Modes: Six picture modes (Dynamic, Standard, Game, Living, Cinema and Presentation) can be selected to suit the nature of the source material
  • Security Pack: Security lock (password and mechanical), security bar and panel key lock
  • Direct Power On / Off: Direct power control using a circuit breaker on the switch board
  • High Altitude Mode: For reliable projector operation at high altitude

Technical Specs

Projector Display System 0.63" (16 mm) x3, BrightEra
Native Resolution XGA (1,024 x 768)
Number of Pixels 2,359,296 (1,024 x 768 x3)
Lumens Brightness 3,100 / 2,500 / 2,000 (High / Standard / Low)
Contrast Ratio 4000:1
Aspect Ratio 4:3
Focus/Zoom Adjusting Manual / Manual 1.3x
Lens Shift No
Lamp (Bulb) 210W high-pressure mercury lamp
Lamp life: 3,000 / 4,500 / 6,000 hours (High / Standard / Low modes)
Filter cleaning cycle: 6,000 hours maximum
Recommended Projection Size 30 - 300" (0.762 - 7.62 m)
Built-in Speaker 10W x1 mono
Scanning Frequency Horizontal: 14 to 93kHz
Vertical: 47 to 93Hz
System NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Computer Input Maximum input signal resolution: 1,600 x 1,200 (resizing display)
Panel display resolution: 1,024 x 768 pixels
HDTV Compatibility 720 / 60p, 720 / 50p, 1080 / 60i, 1080 / 50i
Keystone Correction Vertical: +/-30Deg.
Languages English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian
I/O Connections RGB / Y PB PR input connector: Mini D-sub 15-pin (female) x2
Audio input connector: Stereo mini jack x2
S-video input connector: Mini DIN 4-pin x1
Audio input connector: pin jack (shared with video in) x2
Video input connector: pin jack x1
Audio input connector: pin jack (shared with S-video in) x2
Monitor output connector: mini D-sub 15-pin (female) x1
Audio output connector: stereo mini jack (variable out) x1
RS-232C connector: D-sub 9-pin (female) x1
RJ-45 x1
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Control RS-232 x1
RJ-45 (LAN) 10BASE-T / 100BASE-TX x1
Operating Conditions Operating temperature: 32 to 104Deg.F (0 to 40Deg.C)
Humidity: 35 - 85% (no condensation)
Power Requirements 100 - 240 V AC, 50 / 60Hz
Power Consumption Normal operation: (High / Standard / Low)
AC 100V - 120V: 320W / 275W / 245W
AC 220V - 240V: 310W / 265W / 235W
AC 100V - 120V: 9W / <1.0W (Standard / Low)
AC 220V - 240V: 11W / <1.0W (Standard / Low)
Remote Control IR wireless
Dimensions 12.3 x 5.0 x 10.9" (313.4 x 129.6 x 278.3 mm)
Weight 7.27 (3.3 kg)
