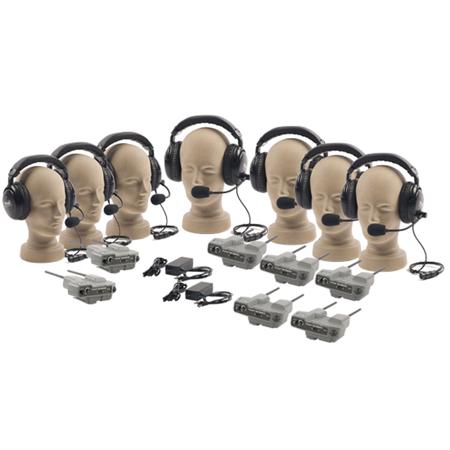

Anchor Audio PRO-570 ProLink Seven User Package with 7x Dual Muff Headsets
See all Anchor Audio items

Anchor Audio PRO-570 ProLink Seven User Wireless Package with 7x H-2000 Dual Muff Headsets

SKU: AAPRO5707D
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Anchor Audio PRO-570 ProLink 7 User Specifications

  • H-2000 (dual): Frequency Range

    150 Hz - 8 kHz

  • H-2000 (dual): Microphone Type

    Low Impedance, Noise-Cancelling Dynamic

  • H-2000 (dual): Mic Frequency Response

    150 Hz - 8 kHz

  • H-2000 (dual): Impedance

    150 Ohms

  • H-2000 (dual): Connectors

    1 x 4-pin XLR Female

  • H-2000 (dual): Cable Length

    3'(ft.) (1 m)

  • Belt Pack (BP-500M): RF Frequency Range

    902-928MHz

  • Belt Pack (BP-500M): Modulation

    FSK

  • Belt Pack (BP-500M): Range Duplex

    Up to 500' (152.4 m) (Line of Sight)

  • Belt Pack (BP-500M): Antenna

    1/2 Wavelength Dipole

  • Belt Pack (BP-500M): Power Supply

    9VDC, 1.2ADC (3 x AA Batteries)
    Up to 12 Hours of Operation

  • BP-500R1 Beltpack: RF Frequency Range

    902-928MHz (Frequency 1)

  • BP-500R1 Beltpack: Modulation

    FSK

  • BP-500R1 Beltpack: Range

    Up to 500' (152.4 m) (Line of Sight)

  • BP-500R1 Beltpack: Antenna

    1/2 Wavelength Dipole

  • BP-500R1 Beltpack: Power

    9VDC, 1.2ADC (3 x AA Batteries)
    Up to 12 Hours of Operation

  • BP-500R2 Beltpack: RF Frequency Range

    902-928MHz (Frequency 2)

  • BP-500R2 Beltpack: Modulation

    FSK

  • BP-500R2 Beltpack: Range

    Up to 500' (152.4 m) (Line of Sight)

  • BP-500R2 Beltpack: Antenna

    1/2 Wavelength Dipole

  • BP-500R2 Beltpack: Power

    9VDC, 1.2ADC (3 x AA Batteries)
    Up to 12 Hours of Operation

  • Dimensions

    Belt Pack (BP-500): 4.5" x 6.25" x 3.75" (114.3 x 158.75 x 95.25 mm)
    BP-500R1 Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)
    BP-500R2 Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)

  • Weight

    Belt Pack (BP-500): 15 oz / 425.2 g (with batteries)
    BP-500R1 Beltpack: 15 oz (425.2 g) (With Batteries)
    BP-500R2 Beltpack: 15 oz (425.2 g) (With Batteries)
    Dual: 16 oz / 453.5 g

About Anchor Audio PRO-570 ProLink 7 User

The Anchor Audio PRO-570/7D is a digital wireless intercom system that allows for full duplex communication between four users simultaneously with the option of unlimited listen only belt packs. The transmitter and receiver operate using the FCC license 902-928 MHz range without the need for a base station. An enhanced version of the ProLink, the ProLink 500 has the capability of transmitting 500 feet line of sight and the ability to communicate through glass and walls. It also has Bluetooth capabilities.

Anchor Audio PRO-570 ProLink 7 User Features

  • 500 ft line of sight wireless communication
  • Heavy duty 4-pin XLR connector
  • Choice of single, dual muff, or lightweight headset
  • A/B channel selection
  • Push to Talk or Always On modes
  • Microphone gain setting
  • Out of range LED indicator
  • Low battery LED indicator
  • Rechargeable batteries included
  • Gang charger for four belt packs
  • FCC License

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 500 ft line of sight wireless communication
  • Heavy duty 4-pin XLR connector
  • A/B channel selection
  • Push to Talk or Always On modes
  • Microphone gain setting
  • Out of range LED indicator

What's in the box:

  • 7x Dual Muff Headsets
  • 2x BP-500M Master Belt Packs
  • 5x BP-500R1/R2 Remote Belt Packs
  • 2x GC-500 Gang Charger
  • Rechargeable Batteries
  • Anchor Audio 2 Year Warranty
