ARRI ARRIlite 575 Plus/Fresnel Mini Kit (220V)
See all Arri items

ARRI lite 575 Plus Tungsten Fresnel Mini Kit (220V)

SKU: AR571893P
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ARRI ARRIlite 575 Plus/Fresnel Mini Kit (220V) Specifications

  • Item Includes

    2 x Full Single Scrim for 650 Fresnel/Arrisun 2/ HMI Fresnel 200 (6-5/8") - 2 x Full 2 x 4 Leaf Barndoor Set for 650W Fresnel/200W HMI/400W Pocket PAR - Double Scrim for 650W Fresnel/Arrisun 2/ HMI 200W (6-5/8") - 2 x 575W HPL LAMP 220V - 571192W 4-Light Case with Wheels

  • Tungsten Fresnel: Rating

    300 Watts, 120-240VAC

  • Tungsten Fresnel: Socket (Lampholder)

    GY9.5

  • Tungsten Fresnel: Lens (Condenser)

    3.2" (81.28 mm) low expansion borosilicate Fresnel lens

  • Tungsten Fresnel: Reflector (Mirror)

    Spherical, specular, high purity aluminum

  • Tungsten Fresnel: Mounting

    5/8" (16 mm) stand mount

  • Tungsten Fresnel: Yoke

    Flat blade Attaches to any 5/8" (16 mm) stud

  • Tungsten Fresnel: Cable

    25' (7.62 m) cable, 120V Grounded Edison Plug, inline switch

  • Tungsten Fresnel: Focusing

    Worm gear driven

  • CP81 Lamp: Application

    Projector, stage and studio

  • CP81 Lamp: Watts

    300

  • CP81 Lamp: Volts

    220

  • CP81 Lamp: Color Temperature

    3200deg.K

  • CP81 Lamp: Average Life Hours

    150

  • CP81 Lamp: Lumens

    7800

  • CP81 Lamp: Base Type

    GY9.5 - Prefocus, 2-pin; round 3.2mm & 2.4mm

  • CP81 Lamp: Length

    3" (76.2mm)

  • AS-01 Light Stand: Minimum Height

    2.25 ft (0.68 m)

  • AS-01 Light Stand: Maximum Height

    8.3 ft (2.55 m)

  • AS-01 Light Stand: Closed Length

    2.5 ft (0.76 m)

  • AS-01 Light Stand: Maximum Load

    9 lbs (4.1 kg)

  • AS-01 Light Stand: Attachment Size

    5/8 in stud

  • AS-01 Light Stand: Accepts Wheels

    No

  • AS-01 Light Stand: Air Cushioned

    No

  • Arrilite 750 Plus: Rating

    750W

  • Arrilite 750 Plus: Type

    Open face with parabolic facet reflector

  • Arrilite 750 Plus: Socket (Lampholder)

    G 9.5

  • Arrilite 750 Plus: Lamps

    120V/230V: HPL 750W, 575W, 375W
    230V: 600W (GKV), 650W (FKR), 800W (HX800)

  • Arrilite 750 Plus: Reflector (Mirror)

    Arrimax reflector

  • Arrilite 750 Plus: Mounting

    5/8" (16 mm)

  • Arrilite 750 Plus: Yoke

    One-arm stirrup

  • Arrilite 750 Plus: Cable

    9.8' (3 m) w/ inline switch

  • Arrilite 750 Plus: Focusing

    Yes

  • Arrilite 750 Plus: Voltage

    120 - 230V AC

  • Arrilite 750 Plus: Certification

    NRTL-US-C, CE, T'V GS, CB, Protection Class IP 20

  • Light Case: Material

    Exterior: Vacuum molded ABS plastic shell
    Exterior: Aluminum trim
    Interior: Convoluted foam inside lid

  • Light Case: Type of Closure

    Surface mounted butterfly latches
    Reinforced piano hinge

  • Light Case: Accommodates

    Four Arri 150, 300 Fresnel lights and accessories
    Four Arrilite 650 tungsten flood lights and accessories

  • Light Case: Carrying/Transport Options

    Side carry handle
    Top carry handle
    Built-in wheels

  • Dimensions

    Tungsten Fresnel: 7.1 x 10 x 6.3" (18 x 25.4 x 16 cm)
    Exterior Light Case: 32.5 x 17 x 10.75" (82.55 x 43.18 x 27.31cm)

  • Weight

    Tungsten Fresnel: 6.5 lbs (2.9 kg)
    AS-01 Light Stand: 2lbs (0.9 kg)
    Arrilite 750 Plus: 3.55 lbs (1.6 kg)
    Light Case: 22.75 lbs (10.32kg)

2 Accessories for ARRI lite 575 Plus Tungsten Fresnel Mini Kit (220V)

  • All Accessories (2)
  • Albums & Frames (1)
  • Production Accessories (1)
ARRI Filter Frame for Junior 650W Fresnel Light Unit
ARRI Filter Frame for Junior 650W Fresnel Light Unit
$40.00
Recommended
Alan Gordon Enterprises Blue Ring Gaffer's Glass
Alan Gordon Enterprises Blue Ring Gaffer's Glass
$79.95

About ARRI ARRIlite 575 Plus/Fresnel Mini Kit (220V)

The Arri Arrilite 575 Plus/Fresnel Mini Kit packs a lot ground-breaking technology coupled with industry benchmark performance to make it one of the most versatile kits that Arri offers. The kit includes two Arrilite Plus open face lights with a full complement of accessories, including scrims barn doors and filter frames. Three 300 W Arri Fresnel's are included each with its own set of accessories as well. Lamps and stands are provided for each light as well as a wheeled shipping case to transport and store it all.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

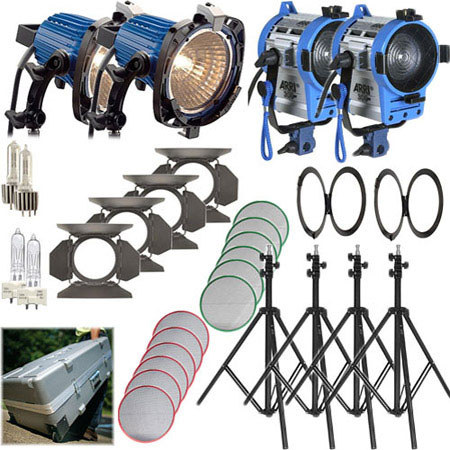

What's in the box:

  • ARRI 300 Watt Plus Tungsten Fresnel (2)
  • 4 Leaf Barndoor Set for 300W Fresnel/125W HMI/200W Pocket PAR (2)
  • Full Single Scrim for ARRIlite 600/300W Fresnel/ 125W HMI Fresnel 5 " (2)
  • Full Double Scrim for ARRIlite 600/Fresnel 300W/125W 5 " (2)
  • Filter Frame for Plus 300/HMI 125W Fresnels (2)
  • CP81 Lamp 300 Watts/220 Volts (2)
  • AS-01 Lightweight Light Stand 8.3' (4)
  • ARRIlite 750 Plus (2)
  • ARRI 1 Year Warranty (See Specifications for More Included Items)
