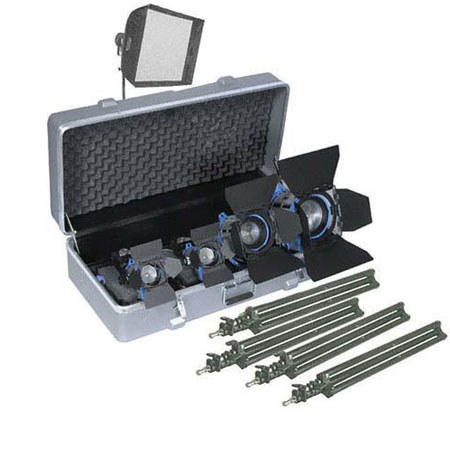

ARRI Softbank D4 Four-Light Kit
See all Arri items

ARRI Softbank D4 Four-Light Kit, Two Fresnel 150s, Fresnel 300 and 650 Fixtures, 1250 Total Watts

SKU: AR571963W
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ARRI 571963W Specifications

  • Rating

    Each Fresnel 150: 150W
    Fresnel 300: 300W
    Fresnel 650: 650W

  • Socket (Lampholder)

    GY9.5

  • Lens (Condenser)

    Each Fresnel 150: 2" (50 mm)
    Fresnel 300: 3.2" (80 mm)
    Fresnel 650: 4.3" (110 mm)
    all with low expansion borosilicate Fresnel lenses

  • Reflector (Mirror)

    Spherical, specular, high purity aluminum

  • Mounting

    5/8" (16 mm) stand mount

  • Yoke

    Fits on standard 5/8" stand or mounting stud

  • Cable

    Each Fresnel 150: 15' (4.6 mm)
    Fresnel 300, 650: 25' (7.6 m) with in-line switch

  • Focusing

    Worm-gear driven

  • Other Kit Contents 1

    Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5")
    Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5")
    FKW Lamp - 300 Watts/120 Volts
    650 Watt Plus Tungsten Fresnel (120-240VAC)
    4 Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR
    Filter Frame for 650W Fresnel, 200W HMI Fresnel

  • Other Kit Contents 2

    Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6-5/8")
    Full Double Scrim for 650W Fresnel, Arrisun 2, HMI 200W (6-5/8")
    Speed Ring for 650W Fresnel
    Video Pro Bank XS (16 x 22") by Chimera
    FRK Lamp - 650 Watts/120 Volts
    Ceiling Scissor Clamp with 5/8" Stud
    3 x AS-01 Lightweight Light Stand (8.3'/2.5m)
    571194W 3-Light Case with Wheels

  • Dimensions

    Each Fresnel 150: 5.25 x 7.75 x 6.1" (13.3 x 19.7 x 15.6 cm)
    Fresnel 300: 7.1 x 10 x 6.3" (18 x 25.4 x 16 cm)
    Fresnel 650: 9 x 12 x 7.5" (23 x 30.5 x 19 cm)
    Kit in Case: 32.5 x 17 x 10.75" (82.55 x 43.18 x 27.31 cm)

  • Weight

    Each Fresnel 150: 2.3 lbs (1 kg)
    Fresnel 300: 6.5 lbs (2.9 kg)
    Fresnel 650: 7.2 lbs (3.3 kg)
    Kit: 52 lbs (23.6 kg)

1 Accessories for ARRI Softbank D4 Four-Light Kit, Two Fresnel 150s, Fresnel 300 and 650 Fixtures, 1250 Total Watts

  • All Accessories (1)
  • Production Accessories (1)
Alan Gordon Enterprises Blue Ring Gaffer's Glass
Alan Gordon Enterprises Blue Ring Gaffer's Glass
$79.95

About ARRI 571963W

The Arri Softbank D4 Four-Light Kit (120 V AC) is designed with modern, light-sensitive digital media in mind, so you can accomplish more than you might think with the 1250 total watts in this package. Three of Arri's most popular Fresnel lights form the core of this complete lighting outfit: the Arri 150 W (two included) is a small Fresnel with great performance and rugged construction, with a 2" (50 mm) Fresnel lens; the very efficient 300 W Plus Fresnel uses a 3.2" (80 mm) low expansion, borosilicate Fresnel lens to produce a soft, even field of light. The 650 W Fresnel features a 4.3" (110 mm) lens and the same reflector, housing and power cord as the 300 W Fresnel, producing (of course) more light.

A Chimera 16 x 22" softbox is included (perfect for interviews and soft light in tight spaces), as well as barndoors, filter frames, light stands, bulbs, a ceiling scissor clamp and a hard compact wheeled carrying case for storage and transport. This kit is equipped for 120 V AC operation.

ARRI 571963W Features

  • Light Spread: Each Fresnel fixture produces a soft, even field of light
  • Ventilated Housings: Ribbed for cooler operation, the fixture ribs act like heat sinks to help disperse any heat build-up
  • Aluminum Reflectors: Spherical, specular, high purity reflectors insure even light
  • 16 x 22" Softbox with Adapter: Chimera Video Pro Softbox provides varying degrees of softness, with a removable front diffuser
  • Barndoors, Scrims and Filter Frames: Enable adjustments of the fixture's light spread, intensity and color
  • Drop-Ceiling Clamp: For mounting a 300 Fresnel from a drop-ceiling frame. It features a standard 5/8" (baby) mounting stud
  • The Arri 650 has a 4.3" (110 mm) low expansion, borosilicate Fresnel lens
  • The Arri 300 Plus has a similar lens, measuring 3.2" (80 mm)
  • Each Fresnel 150 has a 2" (50 mm) Fresnel lens

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Light Spread: Each Fresnel fixture produces a soft, even field of light
  • Ventilated Housings
  • Aluminum Reflectors
  • 16 x 22" Softbox
  • Barndoors, Scrims & Filter Frames
  • Drop-Ceiling Clamp

What's in the box:

  • ARRI 150 Watt Tungsten Fresnel Light 120-230VAC (2)
  • Four Leaf Barndoor Set for ARRI 150W Fresnel (2)
  • Filter Frame for Plus 300
  • HMI 125W Fresnels (2)
  • Full Single Scrim for 150W Fresnel 3 (2)
  • Full Double Scrim for 150W Fresnel 3 (2)
  • ESP Lamp 150 Watts/120 Volts (2)
  • 300 Watt Plus Tungsten Fresnel (120-240VAC)
  • 4 Leaf Barndoor Set for 300W Fresnel
  • 125W HMI
  • 200W Pocket PAR
  • Filter Frame for 150 Watt Fresnel
  • ARRI 1 Year Warranty (See Specs for Additional Included Items)
