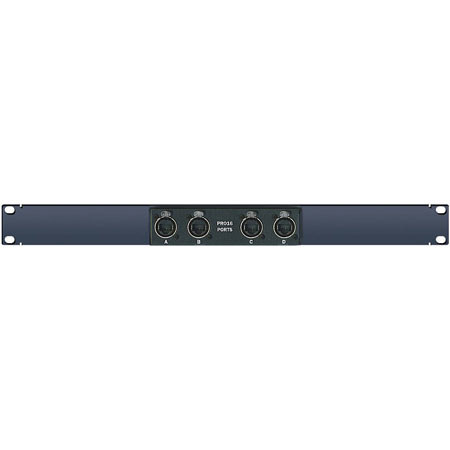

Aviom AN-16SBR Rack-Mounted System Bridge, Pair

The Aviom AN-16SBR System Bridge is designed to be used with Pro16 Series products when digital snake and audio distribution systems larger than 32 channels are required. One AN-16SBR is used at each end of every 48- or 64-channel run.

At each end of a main run, one AN-16SBR is used to combine or separate up to four 16-channel A-Net streams onto a single Cat-5 cable. The combined Bridge output carries up to 64 channels. All network connections feature heavy-duty locking Neutrik EtherCon connectors.

The AN-16SBR supports the following configurations: 64x0, 48X16, 32x32 or smaller. All Pro16 Series products are compatible with the AN-16SBR. The System Bridge is sold as a pair and requires no DC power.
