Bron Kobold DW 400 Open Face AC Flight Kit 458, with 400 watt HMI Head, Ballast, Lamp, Open Face Reflector, Filter & Case
SKU: BKK332U174
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Bron Kobold K332U175 DW 400 Open Face AC Flight Kit 458
The Kobold DW 400 Open Face 400 Watt HMI Flight Kit 458 is built around the IP54 rated, weather-proof DW 400 lamp base which can withstand water splashing on the housing without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 15-45 Degree. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location.

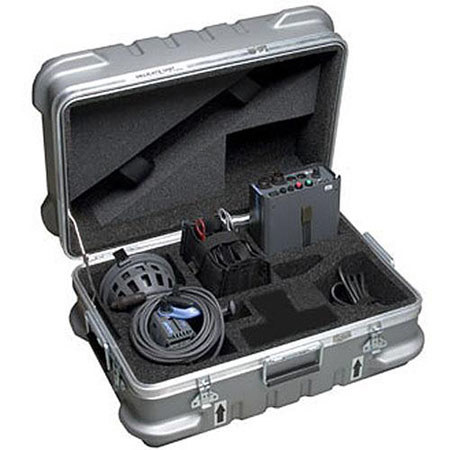

When the Kobold AC EWB 400.575.800 Ballast is connected to a 90-265VAC source, this weather-resistant unit will provide dimmable power to your fixture via its included head-to-ballast cable. The kit includes an Open Face reflector, a glass diffusion filter and a glass CTO conversion filter, 4-leaf barn door, 400 Watt HMI hr lamp and an airline case.
Bron Kobold K332U175 DW 400 Open Face AC Flight Kit 458 Features
- DW400 Fixture features:
- Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions
- Reflector: Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination
- Barndoor Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door
- Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool
- Ballast features:
- The required light output can be set (100 - 60% adjustment range) with the power regulator
- Color temperature can change with the power output depending on the type of lamp used
- To connect the ballast unit to the fixture just plug in the corresponding connection
- To disconnect, press the security mechanism on the socket before pulling out the plug
- Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction and even shut-down if necessary
- Water-resistant IP 54 rated ballast with strengthened insulation for additional protection
- Ignition overload protection
- Temperature monitor
- Convection cooling
- Meets CE Standards
- High Light Output @ 9.8' (3m)- Spot: 19,200 Lux, 1784 fc ,Flood: 3400 Lux, 316 fc
- Four leaf barn door set helps shape the light
- Full and double scrim help control the intensity
