Canare A2V2-L 200m Dual Balanced Audio & Dual Video Coax Cable, 200m / 656'
See all Canare items

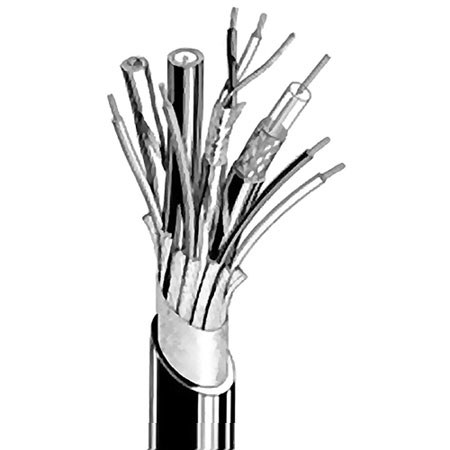

Canare A2V2-L 200m Dual Balanced Audio and Dual Video Coax Composite Cable, 200m / 656'

SKU: CAA2V2L200M
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Canare A3V2-FB: Picture 1 regular
Canare A3V2-FB 200m Audio Video Composite Cable
$1,967.90
Canare : Picture 1 regular
Canare 75 Ohm Coaxial Cable Lightweight Low Loss, 100m
$93.50
Canare : Picture 1 regular
Canare 75 Ohm Coaxial Cable Lightweight Low Loss Cable, 200m
$185.90
Canare : Picture 1 regular
Canare 75 Ohm L-2.5CHD Digital Video Coaxial Low Loss, 300m (UL 1666 Riser)
$293.70
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What are the main features of the Canare A2V2-L 200m Dual Balanced Audio and Dual Video Coax Composite Cable?

The main features of this cable include dual balanced audio lines, two 75 Ohm video coax channels, four insulated tally lines for remote control and camera switching functionality, and a durable and flexible design.

What is the length of the Canare A2V2-L 200m Dual Balanced Audio and Dual Video Coax Composite Cable?

The cable is 200 meters long, which is equivalent to 656 feet.

What is the purpose of the insulated tally lines in the Canare A2V2-L 200m Dual Balanced Audio and Dual Video Coax Composite Cable?

The insulated tally lines are used for triggering camera, VCR, or other switching functions.

What kind of audio and video signals can the Canare A2V2-L 200m Dual Balanced Audio and Dual Video Coax Composite Cable transmit?

This cable is designed to transmit high-definition video signals and clear, uninterrupted audio signals over long distances without any loss in quality.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare A2V2-L Specifications

  • Outer Diameter

    Nominal Audio: 0.433" (11 mm)
    Channel: 0.126" (3.2 mm)
    Nominal Video: 0.173" (4.4 mm)
    Control Line: 0.051" (1.3 mm)

  • Bundled Cable Type

    Audio: 2 x Twisted Pair 2B2-AT
    Video: 2 x Coax 3C-2V
    Control Line: 4 x 0.2 mm½

  • Conductor Strand

    Audio: 16/0.12 quantity/mm
    #25 (AWG)
    Video: 1/0.5 quantity/mm
    #24 (AWG)
    Control Line: 18/0.12 quantity/mm
    #24 (AWG)

  • Material

    Audio Insulation Type: IPE, orange, & white color code
    Video: PE, color code
    Control Line: PE, red, yellow, blue, and white color code

  • Channel Jacket

    Audio: PVC, Gray / red & blue color code
    Video: PVC, black & yellow color code

  • Shield Coverage

    Audio: AL Foil 100% + TC Drain Wire (22AWG)
    Video: 97% or more (braid)

  • Impedance

    75 Ohms

  • Attenuation

    4.1 dB per 100 m at 10 MHz

  • Dielectric Strength

    500 VAC / 1 minute

  • Twist Pitch

    Audio: 0.99" (25 mm)

  • Conductor D.C.R.

    Audio: At 1,000' <31.9
    At 100 m: <10.5
    Video: At 1000': <28.4
    At 100 m: <9.3

  • Shield D.C.R

    Video: At 1000': <3.7
    At 100 m: <1.2

  • Nominal Capacitance

    Audio: 23' pF (73 pF / m) capacitance between conductors
    37' pF (120 pF / m) capacitance between conductor and shield

  • Length

    200m / 656.16'

  • Weight

    70.54lbs / 32Kgs

About Canare A2V2-L

Where professional audio and video transmission is a necessity, the Canare A2V2-L 200m Dual Balanced Audio and Dual Video Coax Composite Cable stands out as a reliable solution. This high-quality cable is engineered with two balanced audio lines, utilizing Canare L-2B2AT type twisted pair with foil shield and drain wire, ensuring clear and uninterrupted audio signals.

In addition, it features two 75 Ohms video coax channels, built with Canare L-3C2V and a solid center conductor, designed to deliver high-definition video signals over long distances without any loss in quality. The cable is also equipped with four insulated intercom or remote control tally lines, providing the capability to trigger camera, VCR, or other switching functions.

Crafted with durability in mind, this 200m (or 656 feet) long cable is flexible yet strong, making it ideal for professional use where consistent performance is paramount. Trust in the Canare A2V2-L 200m Dual Balanced Audio and Dual Video Coax Composite Cable for all your long-distance audio and video transmission needs.

Canare A2V2-L Features

  • 2 audio and 4 Control Combo lines, and 2 video channels
  • Used for linking audio video equipment and as extensions for video cameras
  • Designed for fixed installation
  • Stays flexible even in sub-zero weather
  • Special fillers prohibit cable component twisting
  • Use with Canare 75 Ohms BNC, F, or RCA crimp plugs
  • Used for the following applications: OB vans, ENG / EFP signals, Audio/Video Combo Snakes, and home theaters

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior signal quality with this Canare dual audio video coax cable.
  • This 200m coaxial cable is perfect for professional audio and video installations.
  • Enjoy enhanced durability and shielding with our high-quality composite cable.
  • Minimize signal loss with a low 4.1 dB attenuation at 10 MHz for clear audio.
  • Use this versatile cable for balanced audio, video, and control line applications.
  • Get reliable performance with a 75 Ohms impedance, ideal for video applications.

What's in the box:

  • Canare A2V2-L 200m Dual Audio Video Composite Cable
  • Canare 1 Year Limited Warranty
