CalDigit VR-DM-3000 VR 3000GB Drive Module
See all CalDigit items

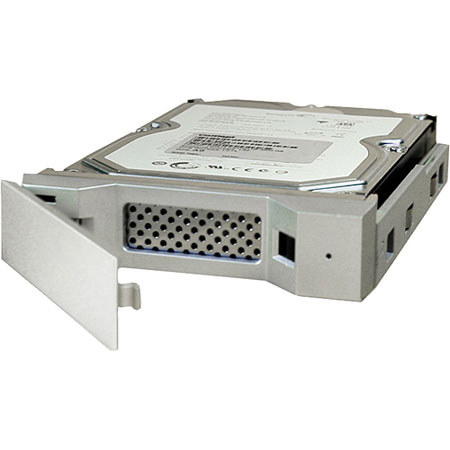

CalDigit VR-DM-3000 VR 3000GB Drive Module

SKU: CD721520
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

CalDigit VR-DM-3000 Specifications

  • Host Interface

    eSATA x 1
    FireWire 800 x 2
    FireWire 400 x 1
    USB 2.0 x 1

  • Interface Transfer Rate

    eSATA: up to 3Gbits/s
    FireWire 800: up to 800Mbits/s
    FireWire 400: up to 400Mbits/s
    USB 2.0: up to 480Mbits/s

  • RAID Function

    Supports RAID 0, 1, Spanning, JBOD
    Automatically online fast disk rebuilding
    Automatic disk failure detection
    Hot swappable disks
    SATA interface only supports RAID 0, 1 and Spanning

  • Capacity

    3000GB

  • Full range AC Input

    100 - 240V
    50 - 60Hz 1.5A

  • DC Output

    5V/4.2A, 12V/3A

  • Power plug

    4Pin

  • Rated Voltage

    DC 12V, 45mA

  • Speed

    3000 R.P.M. +/- 10%

  • Airflow

    7.1 CFM(ft3/min)

  • Noise Level

    16.0 dB(A)

  • System Requirements

    Windows 2000, XP, Vista, 7(32 or 64bit)
    Mac OS 10.4 or later

  • LCD Module

    Displays RAID information
    Displays system temperature

  • Size (H x W x D)

    3.6 x 5.3 x 8.5in (92 x 134 x 216mm)
    Fan Module: 0.39 x 2 x 2in (10 x 50 x 50mm)

  • Weight

    6.6lbs (3.0 kgs)

About CalDigit VR-DM-3000

The VR 3000GB Drive Modules for VR from CalDigit is a hot-swappable spare hard drive for the VR. It can be used as a spare drive in the event of a drive failure. System administrators should always have at least one spare drive on hand to minimize downtime in the event of a drive failure.

The CalDigit VR features true hardware RAID, which provides an independent CPU and dedicated cache memory to manage the RAID volume. This dedicated processor eliminates additional strain from the host system's CPU, allowing applications full access.

CalDigit VR-DM-3000 Features

  • Modular Design: The CalDigit VR uses two hot-swappable drive modules, allowing easy replacement and expansion. The modular design even allows for easy replacement of the fan
  • Fast & Safe: The CalDigit VR can reach speeds over 250 MB/s in RAID 0 and over 160 MB/s with RAID 1 protection. RAID 1 provides the ultimate in protection and backup for valuable data by mirroring data on both drives. If a drive fails, all data can be restored
  • Smart & Manageable: The CalDigit VR comes with RAID Tool, a unique software that provides easy management, monitoring, diagnostic reports, email notification and firmware update capabilities. This provides users with interactive assurance
  • Cool & Quiet: The energy saving, ambient temperature-controlled smart fan runs only when the CalDigit VR needs it most. It runs extremely quiet, ensuring proper airflow and advanced cooling without compromise
  • Security: The CalDigit VR includes a security lock as well as locking drive modules. For sensitive data, RAID Tool software provides password protection against unauthorized changes
  • Visual Aid: The easy to read back lit LCD provides valuable data and added confidence that is just a glance away. Additionally, the LED status lights provide a visual representation of the CalDigit VR's operation. It also allows configuration without being attached to a computer

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • CalDigit VR-DM-3000 VR 3000GB Drive Module
  • Driver CD
  • eSATA Cable
  • AC Adapter
  • FireWire 800 Cable
  • 2 x Key
  • CalDigit Warranty
