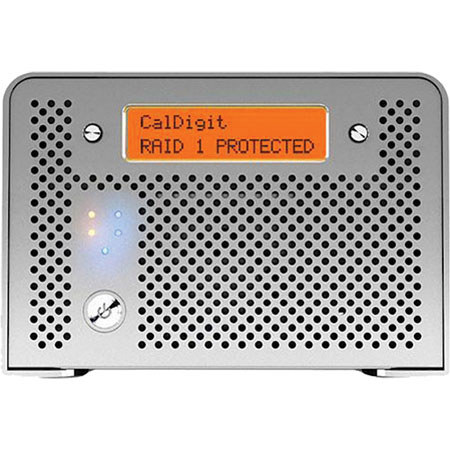

CalDigit VR 4 TB 2 Drive Media RAID System with FireWire and USB Interface for Mac and Windows

SKU: CDVR2B4000

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2013-03-11T21:00:00

Rated 5 out of 5

Perfect for small video projects!

Small, compact, great for video and audio production.

Roy B.

CalDigit VR 4 TB 2 Drive Media Raid, Firewire/ USB Specifications

  • Capacity

    4TB

  • Array Type

    Hot-Swappable SATA 3Gb/s

  • Bays

    Amount: 2x
    Supports: 2x SATA 3Gb/s 7200rpm Hard Drives

  • Drive Types Supported

    SATA 3Gb/s

  • Channels

    Installed: 1x
    Supported: 1x

  • Video Stream Playback

    Multiple Streams of 10-bit Uncompressed SD, 8-bit Uncompressed SD, DVCPRO HD, HDV, or DV

  • Array Configuration

    RAID, JBOD

  • RAID

    Type: RAID
    Levels Supported: 0, 1, JBOD

  • Desktop/Rackmount

    Desktop

  • Status Indicator

    LCD

  • Security

    None

  • System Compatibility

    Windows, Mac, Linux

  • Compatibility

    No Drivers Required

  • FAN Module: Outline

    50 x 50 x 10mm

  • FAN Module: Rated voltage

    DC 12V

  • FAN Module: Operating voltage

    DC 7V ~ DC 13V

  • FAN Module: Rated current

    0.04A

  • FAN Module: Rated power consumption

    0.48W

  • FAN Module: Max. Airflow

    7.1 CFM (ft3/min)

  • Host Interface

    eSATA x 1
    FireWire 800 X 2
    FireWire 400 X 1
    USB 2.0 x 1

  • Full rang AC Input

    100 ~ 240V
    50~60Hz 1.5A

  • DC output

    5V/4.2A, 12V/3A

  • Power plug

    4Pin

  • Dimension (H x W x D)

    3.6"(9.2 cm) x 5.3"(13.4 cm) x 8.5"(21.6 cm)

  • Weight

    6.6 lb (3 kg)

About CalDigit VR 4 TB 2 Drive Media Raid, Firewire/ USB

The CalDigit VR is the most advanced two drive RAID array on the market, supporting a quadruple interface for easy connectivity. The CalDigit VR's modular design provides two hot swappable drive modules and an easy to read front side LCD. With support for RAID 0, 1 and JBOD the CalDigit VR can reach speeds of up to 250MB/s and includes easy to use software for configuration and monitoring which also supports email notification. The CalDigit VR packs a ton of performance into a small package, making it a truly portable solution.

CalDigit VR 4 TB 2 Drive Media Raid, Firewire/ USB Features

  • Reach the speed limit with guaranteed protection: The CalDigit VR can reach speeds up to 250MB/s in RAID 0 and over 110MB/s with RAID 1 protection. These high speeds allow for the most demanding tasks, like video editing.
  • Manage, Monitor, Modify: The easy to read orange back lit LCD provides valuable data and added confidence that's just a glance away. Additionally LED status lights provide a visual representation of the CalDigit VR's operation. As if that's not enough an audible alert can also be set.
  • A cooler design: The energy saving, ambient temperature controlled smart fan, runs extremely quiet ensuring proper airflow and advanced cooling without compromise. In addition the CalDigit VR is designed with an all aluminum enclosure to assist with heat dissipation.
  • Security: The CalDigit VR includes a security lock, perfect for educational institutions, trade shows or any situation where the drive needs to be physically locked in place. Additionally Locking drive modules ensure that the drives don't get removed by accident.
  • Easy configuration and monitor: The CalDigit VR comes with advanced software that provides easy management, monitoring, diagnostic reports, email notifications and firmware update capabilities. This provides users with interactive assurance.
  • Satisfaction Guaranteed: Hardware RAID support for RAID 0, 1 and JBOD provides maximum flexibility. Hardware RAID provides an independent CPU and dedicated cache memory to manage the RAID volume.
  • Single vendor support: Made from quality components the CalDigit VR is designed to last and comes with CalDigit's industry leading 1 year warranty and knowledgeable tech support.
  • Advanced modular design: The CalDigit VR has two hot swappable drive modules, allowing for easy replacement and expansion. This added flexibility makes it easy to archive data. Instead of storing an entire enclosure, with the CalDigit VR only the drive modules need to be stored.

What's in the box:

  • CalDigit VR 4TB 2 Drive Media RAID System
  • FireWire-800 Cable
  • eSATA Cable
  • eSATA Extender
  • Power Cord
  • Software CD-ROM
  • CalDigit Warranty
