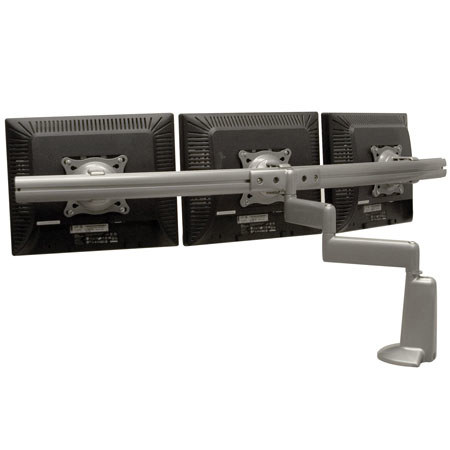

Chief KCD320 Triple Monitor Swing Arm Desk Mount, Silver
See all Chief items

Chief KCD320 Triple Monitor Swing Arm Desk Mount, 10 lbs Load Capacity, Silver

SKU: CHKCD320S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KCD320 Specifications

  • Number of Monitors

    3

  • Orientation

    Landscape, Portrait

  • Desktop Thickness Range

    0.5 - 3.5" (13 - 89mm)

  • Grommet Hole Size Range

    0.38 - 3" (10 - 76mm)

  • Maximum Extension

    23.7" (602mm)

  • Minimum Depth

    7.9" (200.7mm)

  • Mounting Pattern Compatibility

    75 x 75mm (2.95 x 2.95" ),100 x 100mm (3.93 x 3.93" ) Universal Versions

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 15deg., - 15deg.

  • TV Width Range

    10 - 18" (254 - 457mm)

  • Typical Screen Sizes

    10 - 18" (254 - 457mm)

  • Load Capacity

    10 lbs (4.5kg)

  • Dimensions (H x W x D)

    13.5" x 41.6" x 7.9" (342.9 x 1056.6 x 200.6mm)

About Chief KCD320

The Chief KCD320S Triple Monitor Swing Arm Desk Mount (Silver) makes it easy to ergonomically mount three displays on your desktop with simple fingertip angle adjustments.

Chief KCD320 Features

  • Centris Technology provides smooth, fingertip tilt in all directions
  • Screen angle stays set until you decide to re-adjust
  • Clamp option allows mount to be installed from the top of the mounting surface
  • Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt
  • Clean look with minimal hardware visible from underside of work surface
  • Independently adjustable tension at pivot points for customized control; tension can be optimized for touchscreen use
  • Quick, easy cable management with infinitely adjustable cable management clips
  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)
