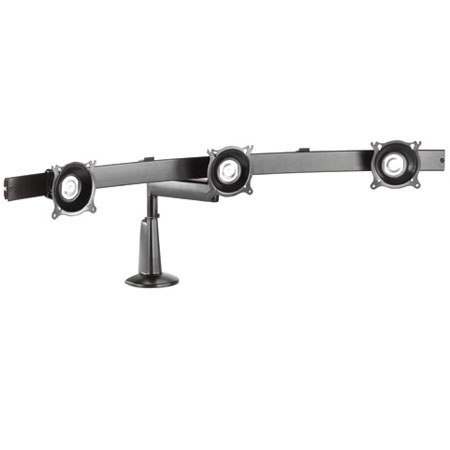

Chief KCS320 Single Arm Desk Mount, Array 3 Head, Arm, Black
See all Chief items

Chief KCS320 Single Arm Desk Mount, Array 3 Head, Arm, 10 lbs Load Capacity, Black

SKU: CHKCS320B
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KCS320 Specifications

  • Number of Monitors

    3

  • Orientation

    Landscape, Portrait

  • Desktop Thickness Range

    0.5 - 3.5" (13 - 89mm)

  • Grommet Hole Size Range

    0.38 - 3" (10 - 76mm)

  • Maximum Extension

    16.2" (411.5mm)

  • Minimum Depth

    7.9" (200.7mm)

  • Mounting Pattern Compatibility

    75 x 75mm (2.95 x 2.95"),100 x 100mm (3.9 x 3.9")(Universal Versions)

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 15deg., - 15deg.

  • TV Width Range

    10 - 18" (254 - 457.2mm)

  • Typical Screen Sizes

    10 - 18" (254 - 457.2mm)

  • Load Capacity

    10 lbs (4.5kg)

  • Dimensions (H x W x D)

    13.5" x 41.6" x 6.4" (342.9 x 1056.6 x 162.5mm)

About Chief KCS320

The Chief KCS320 Single Arm Desk Mount (Black) offers the ability to ergonomically mount multiple displays. Clamp option allows the mount to be installed from the top of the mounting surface. It features a clean look with minimal hardware visible from underside of work surface.

Chief KCS320 Features

  • Centris Technology provides smooth, fingertip tilt in all directions
  • Screen angle stays set until you decide to re-adjust
  • Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt
  • Independently adjustable tension at pivot points for customized control; tension can be optimized for touchscreen use
  • Quick, easy cable management with infinitely adjustable cable management clips
  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Screen angle stays set until you decide to re-adjust
  • Multiple mounting options
  • Independently adjustable tension at pivot points
  • VESA 75 x 75 mm and 100 x 100 mm compliant
