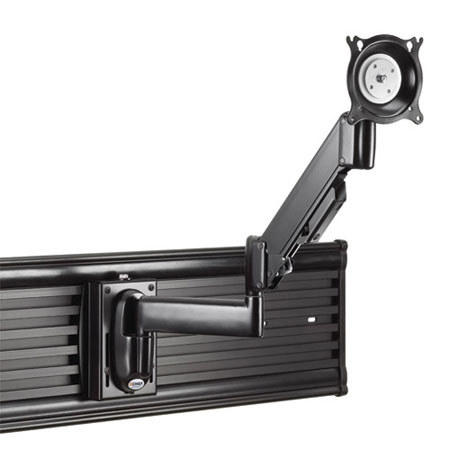

Chief KSG110 Height-Adjustable Dual Arm Slat Wall Mount, Single Monitor, Black

SKU: CHKSG110B

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KSG110 Specifications

  • Solution Type

    Universal

  • Number of Monitors

    1

  • Typical Screen Sizes

    10 - 30" / 254 - 762 mm

  • Maximum Extension

    17.41" (442.2mm)

  • Minimum Depth

    2.3" (58.4mm)

  • Mounting Pattern Compatibility

    (Universal Versions): 75 x 75mm,100 x 100mm

  • Orientation

    Landscape, Portrait

  • Post-Installation Leveling (Roll)

    Yes

  • Tilt

    + 15deg., - 15deg.

  • Pivot

    180deg.

  • Load Capacity

    5 - 25 lbs (2.3 - 11.3kg)

  • Dimensions (H x W x D)

    13.4" x 13.0" x 2.3" (340 x 330 x 58mm)

About Chief KSG110

The Chief KSG110 is a universal slat wall, height-adjustable swing arm mount designed for small flat panel displays from 10-30" (or up to 25 lbs.) that need to be installed on slat wall or tool tile. For convenience, the mount folds in close to the wall for a low profile appearance and provides cable management.

Chief KSG110 Features

  • Fingertip height adjustment up to 13.25" (337 mm) for optimal viewing for any display
  • Centris Technology provides smooth, fingertip tilt in any direction
  • Ships with Chief's OFBU Universal Slat Wall Interface Bracket to accommodate over 95% of installations
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Maximum range of motion from low profile to full extension
  • Sleek, attractive design hides all hardware
  • Independently adjustable tension at pivot points for customized control
  • Tension can be optimized for touchscreen use
  • Integrated cable management
  • VESA 75 x 75 mm and 100 x 100 mm compatible

What's in the box:

  • Chief KSG110 Height-Adjustable Dual Arm Slat Wall Mount
  • Mounting Accessories
  • Chief Warranty
