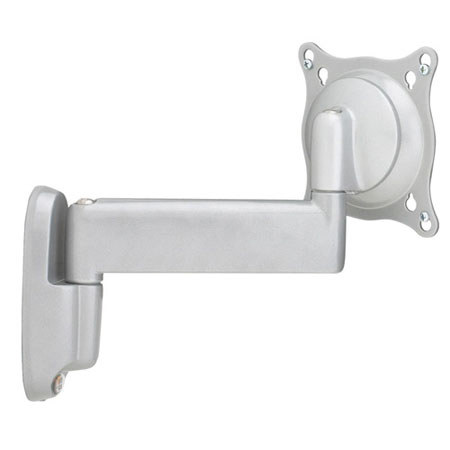

Chief KWS110 Single Arm Wall Mount, Silver
See all Chief items

Chief KWS110 Single Arm Swing Wall Mount for Small Flat Panels Upto 40 lbs, Silver

SKU: CHKWS110S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KWS110 Specifications

  • Compatible with OFB Furniture Brackets

    Yes

  • Maximum Extension

    9.4" (238.8mm)

  • Minimum Depth

    2.2" (55.9mm)

  • Mounting Pattern Compatibility

    75 x 75 mm, 100 x 100 mm

  • Number of Monitors

    1

  • Orientation

    Landscape, Portrait

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 15deg., - 15deg.

  • Typical Screen Sizes

    10 - 30" (254 - 762 mm)

  • Load Capacity

    40 lbs (18.1kg)

  • Dimensions (H x W x D)

    9.8" x 10.0" x 2.2" (248.92 x 254 x 55.88mm)

About Chief KWS110

Ideal for the home or office, the Chief KWS110 Single Swing Arm Wall Mount (Silver) swings small flat panel displays from 10-30" (up to 40 lbs.) out from the wall for closer viewing and provides smooth pivot and tilt adjustments for ergonomic needs. For convenience, the mount folds in close to the wall for a low profile appearance.

Chief KWS110 Features

  • Comes assembled for easy installation
  • VESA-compliant (75 x 75mm or 100mm x100mm)
  • Easy to install. Simply attach wall plate to single stud. Then slide mount onto plate. Attach display to mount. (Teardrop hole patterns makes mounting the screen quick and easy). Secure hardware
  • Built-in cable management for a clean installation. Simply route cables through the predefined pathway inside the arm
  • Patented Centris technology provides smooth, fingertip tilt in all directions using the screen's center of gravity. Screen angle stays set until you decide to re-adjust
  • Provides up to 9.4" extension with a single swing arm
  • Portrait and landscape rotation and side-to-side pivot (pivots 180deg. at wall plate)
  • Independently adjustable tension at pivot points provides customized control. Tension can be optimized for touchscreen use
  • Folds in close (2.2") to the wall for a low-profile appearance
  • Sleek, attractive design hides all hardware

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Chief KWS110 Single Arm Wall Mount
  • Wall Bracket
  • Phillips Pan Sheet Metal, #10 x 2-1/2" (2)
  • Flat Machine Screw, #10 (2)
  • Chief Warranty
