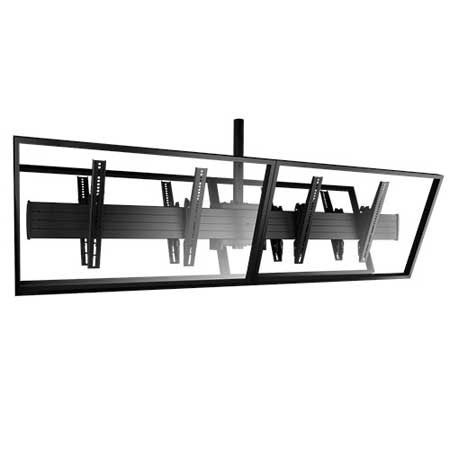

Chief Fusion LCB2X1U Large Ceiling-Mounted Back-to-Back 2x1 Menu Board
See all Chief items

Chief Fusion LCB2X1U Large Ceiling-Mounted Back-to-Back 2x1 Menu Board, 100lbs Capacity Per Screen

SKU: CHLCB2X1U

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief LCB2X1U Specifications

  • Certifications

    UL Listed

  • Mounting Pattern Compatibility

    Any width x 100 - 400 mm (Universal Versions)

  • TAA Compliant

    Yes

  • Post-Installation Leveling (Roll)

    + / - 3 deg.

  • Screen Array Configuration

    2x1

  • Solution Type

    Universal

  • Tilt

    +5 deg. , -20 deg.

  • Typical Screen Size

    40 - 55" (up to 65" with FCAX extension brackets)

  • Weight Capacity

    100lbs / 45.36kg per screen

  • UPC Code

    841872158952

About Chief LCB2X1U

Chief's Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.

Chief LCB2X1U Features

  • Screen array configuration: screens wide x screens high
  • Confirm screen compatibility with MountFinder
  • Single drop for fast installation
  • Micro adjustable roll for perfect leveling +/- 3 degrees
  • 360 degree swivel for optimal viewing angles
  • Single horizontal extrusion keeps screens aligned
  • Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
  • Tool-free screen engagement
  • Secure displays with optional pad-lock security
  • Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Screen array configuration
  • Confirm screen compatibility with MountFinder
  • Single drop for fast installation
  • Micro adjustable roll for perfect leveling +/- 3 degrees
  • 360 degree swivel for optimal viewing angles
  • Single horizontal extrusion keeps screens aligned

What's in the box:

  • Chief Ceiling Mount Assembly
  • 8x Interface Bracket
  • Installation Hardware
  • Chief 10 Year Warranty
