Chief WBM2 Micro-Adjustable Whiteboard Mount

SKU: CHWBM2

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief WBM2 Specifications

  • Compatibility

    Chief SMART 600 & 800 Series Boards

  • Load Capacity

    125 lbs / 56.70 kg

  • Dimensions (H x W x D)

    48.83" x 46.93" x 4.92" / 1240.28 x 1192.02 x 124.97 mm

About Chief WBM2

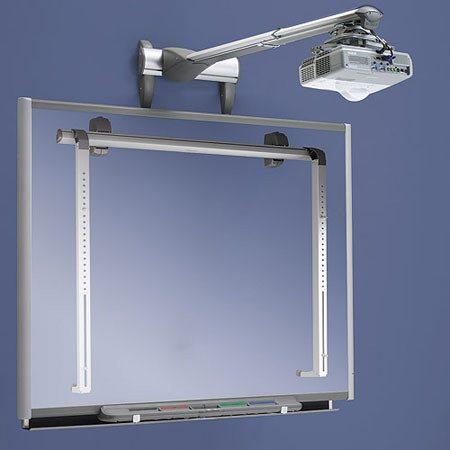

The Chief WBM2 Micro-Adjustable Whiteboard Mount installs directly to the wall over pre-existing whiteboards or chalkboards without causing damage. The WBM2 was designed for a quick install providing speed and flexibility with multiple post-install adjustments.

Chief WBM2 Features

  • Install crossbar and wall bracket assembly to the wall
  • Attach uprights to inserts on back of interactive board
  • Hang uprights/interactive board onto crossbar
  • Mount shifts left/right at the wall installation
  • Additional adjustment can be achieved by sliding the uprights and interactive board left/right along the mount crossbar
  • Flexible for mounting near wall obstructions and precision board placement
  • Macro height adjust at uprights in 1" increments
  • Micro height and leveling adjust at wall assemblies up to 1.5"
  • Adjustable feet hold the installation in place, ensuring a stable writing surface
  • Aesthetic "snap-on" covers and caps
  • Compatible with SMART 600 & 800 Series boards (except 685 & 690)

Key Features

  • Install crossbar and wall bracket assembly to the wall
  • Attach uprights to inserts on back of interactive board
  • Hang uprights/interactive board onto crossbar
  • Mount shifts left/right at the wall installation
  • Flexible for mounting near wall obstructions and precision board placement
  • Macro height adjust at uprights in 1" increments
