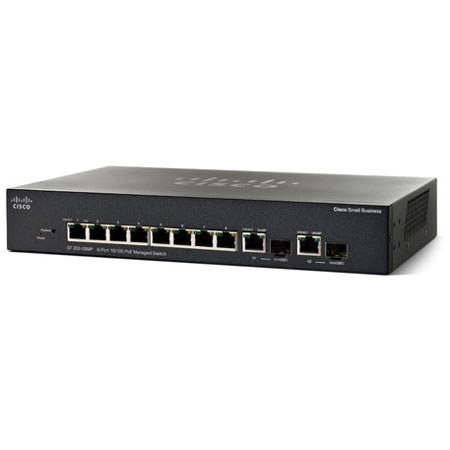

Cisco SF302-08MP 8-Port 10/100 Max PoE Managed Switch with Gigabit Uplinks

SKU: CISRW208MPK9

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cisco SF302-08MP Specifications

  • Number of Expansion Slots

    2

  • Power Over Ethernet

    Yes

  • Manageable

    Yes

  • Fast Ethernet Port

    Yes

  • Gigabit Ethernet Port

    Yes

  • Input Voltage Range

    100 V AC to 240 V AC

  • Form Factor

    Rack-mountable

  • Number of Ports

    10

  • Expansion Slots

    (2 Total) SFP (mini-GBIC) Shared

  • Input Voltage

    110 V AC
    220 V AC

  • Interfaces/Ports

    8 x RJ-45 10/100Base-TX PoE LAN
    2 x RJ-45 10/100/1000Base-T Network Uplink
    1 x Console Management

  • Standard Memory

    128 MB

  • Forwarding/Filtering Rate

    4.2 Mpps

  • Switching Throughput

    5.60 Gbps

  • Management

    VLAN
    DHCP
    QoS
    Web user interface
    SNMP v1, v2c, v3
    RMON
    Textview CLI
    Syslog
    Telnet

  • Flash Memory

    16 MB

  • Power Source

    Power Supply

  • Layer Supported

    2

  • Network Technology

    10/100Base-TX
    10/100/1000Base-T

  • Dimensions (H x W x D)

    1.5" x 11" x 6.7" / 3.8 x 27.9 x 17.0 cm

About Cisco SF302-08MP

The Cisco SF 302-08MP is an 8-Port Max PoE Managed 10/100 Switch with two combination mini-GBIC ports, maximum Power over Ethernet (PoE) for up to 124W of power and a compact size that provides multiple placement options. With eight 10/100 ports of standard PoE that can connect and power wireless access points, IP telephones, IP-based video surveillance cameras and other network endpoints, the switch provides a foundation to support data, voice, video and wireless networking solutions for small businesses.

Its energy-saving technology optimizes power use to help protect the environment and reduce energy costs without compromising performance. The Cisco SF 302-08MP Max PoE Switch provides the ideal combination of performance and capabilities in a switch designed specifically for small businesses.

Cisco SF302-08MP Features

  • Easy setup and management: Intuitive browser-based tools, mass deployment capabilities and consistent features across all models simplify setup and configuration
  • Strong security: Use access control lists (ACLs), guest VLANs and other advanced security features to tightly control small business networks
  • Power over Ethernet: Up to 48 PoE ports of Fast Ethernet (plus 2 or 4 Gigabit Ethernet uplinks) and up to 28 PoE ports of Gigabit Ethernet simplify IP telephony and wireless deployments
  • Advanced features: The switch allows for advanced traffic management with support for Layer 3 switching between VLANs and also support IPv6, remote management and dual images
  • Power efficiency: Low-power chipsets, fanless designs and other energy-saving features help reduce power consumption and enable quieter operation
  • More ports per Gigabit Ethernet switch: The Cisco SF 302-08MP includes 28-port and 52-port Gigabit Ethernet switches (traditional devices offer only 20 or 44 ports with four shared ports)

Key Features

  • Easy setup and management
  • Strong security
  • Power over Ethernet
  • Advanced features
  • Reduce power consumption & enable quiet operation
  • More ports per Gigabit Ethernet switch

What's in the box:

  • Cisco SF302-08MP 8-Port 10/100 Max PoE Managed Switch
  • Mounting Hardware
  • Power Cord
  • Serial Cable
  • CD-ROM with User Documentation (PDF)
  • Quick Start Guide
  • Cisco Warranty
