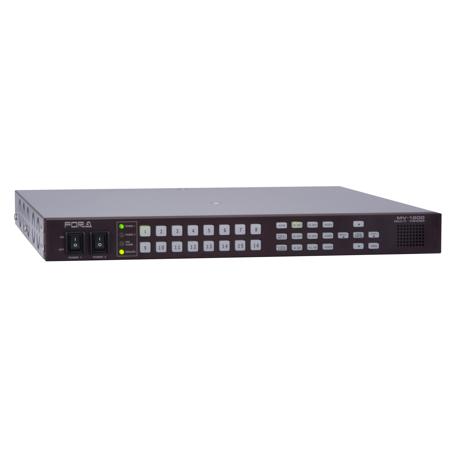

For.A MV-1200 3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer
See all For.A items

For.A MV-1200 3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer, Up to 16 Inputs, 6-Monitor Outputs

SKU: FAMV1200

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

For.A MV-1200 Specifications

  • Video format

    3G: 1080/60p, 1080/59.94p, 1080/50p (Level-A/B)
    HD: 1080/60i, 1080/59.94i, 1080/50i, 720/60p, 720/59.94p, 720/50p, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/24p, 720/23.98p, 1080/30PsF, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 1035/60i, 1035/59.94i
    SD: 525/60 (NTSC), 625/50 (PAL)

  • Video input

    SDI/analog composite switching (Mixed input, asynchronous acceptable)

  • 3G/HD/SD-SDI (MV-1210, MV-12SDI)

    3G-SDI: 3.0 Gbps (5C-FB (Belden 1694A): 70 m max.)
    HD-SDI: 1.5 Gbps (5C-FB (Belden 1694A): 100 m max.)
    SD-SDI: 270 Mbps (5C-2V (Belden 8281): 200 m max.)
    Quantization: Y: 10-bit, C: 10-bit
    Number of inputs: 4 included, 4 per MV-12SDI

  • Analog composite (MV-1210, MV-12SDI)

    Analog composite: 1.0 Vp-p
    Quantization: Y: 10-bit, C: 10-bit
    Number of inputs: 4 included, 4 per MV-12SDI

  • HDMI (MV-1200, MV-12PCI)

    Quantization: R: 8-bit, G: 8-bit, B: 8-bit, or Y: 10-bit, C: 10-bit (4:4:4)
    Resolution
    PC: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1680 x 1050, 1600 x 1200, 1920 x 1200
    Refresh rate: 60 Hz supported
    VIDEO (SMPTE-compliant): 1920 x 1080i/p, 1280 x 720p, 525/60i, 625/50i
    Refresh rate: 50/60 Hz supported
    HDCP-compliant
    Number of inputs: 4 included, 4 per MV-12PCI

  • Audio Input: Embedded

    Sampling frequency: 48 kHz (sync to input video signals)
    Quantization: 16-bit to 24-bit
    16 channels for each SDI input (4 groups, 8 stereo pairs)

  • Audio Input: HDMI

    Sampling frequency: 48 kHz
    Quantization: 16-bit to 24-bit
    8 channels per HDMI input signal

  • LTC input (MV-12IF)

    1x BNC
    SMPTE-compliant timecode: within 1.0 Vp-p +/-6 dBm

  • Video Outputs: HDMI (MV-1200)

    HDMI (TYPE A): 1 output
    Quantization: Y: 10-bit, C: 10-bit (4:4:4), or R: 8-bit, G: 8-bit, B: 8-bit (4:4:4)
    Resolution: 1920 x 1080, 1280 x 720
    Frequency: 59.94 Hz, 50 Hz
    Range: limited

  • Video Outputs: HDMI (MV-12PCO)

    HDMI (TYPE A): 4 outputs
    Quantization: Y: 10-bit, C: 10-bit (4:4:4), Y: 8-bit, C: 8-bit (4:2:0), or R: 8-bit, G: 8-bit, B: 8-bit (4:4:4)
    Resolution: 3840 x 2160, 1920 x 1080, 1980 x 720
    Frequency: 59.94 Hz, 50 Hz
    Range: limited
    HDMI 2.0b output mode (Enables 4K output with one HDMI cable)

  • Video Outputs: 3G/HD-SDI (MV-1210)

    1x 75Ohm BNC
    3G-SDI: 3 Gbps 1080/59.94p, 1080/50p (Level-A)
    HD-SDI: 1.5 Gbps 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

  • Video Outputs: 3G/HD-SDI (MV-12SDO)

    4x 75Ohm BNC
    (4K output supported in quad display of 3840 x 2160 signals)
    Quantization: Y: 10-bit, C: 10-bit (4:2:2)
    3G-SDI: 3 Gbps 1080/59.94p, 1080/50p (Level-A)
    HD-SDI: 1.5 Gbps 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

  • Audio Output: Analog

    1x Stereo mini jack (2x monaural), unbalanced
    Output impedance: 100Ohm or less
    Output level: -10 dBV
    Maximum output level: +5 dBV
    Sampling frequency: 48 kHz
    Quantization: 24-bit

  • Audio Output: Embedded (SDI)

    Number of outputs: 4 groups (8 stereo pairs) per output
    Sampling frequency: 48 kHz
    Quantization: 24-bit

  • Audio Output: Embedded (HDMI)

    Number of outputs: 4 stereo pairs per output
    Sampling frequency: 48 kHz
    Quantization: 24-bit

  • Alarm output (relay)

    3 types of alarm output: Power 1, Power 2, Fan

  • Genlock input

    Tri-level sync: 0.6 Vp-p 75Ohm BNC
    Input Lock

  • Video input/output delay

    HDMI/SDI output
    Standard: 0.5 frame to 1 frames (2K mode)
    Optional output: 0.5 frame to 1.5 frames (2K mode)

  • Count up/down timer

    Can be displayed in information window(Internal clock or LTC is selectable for remaining time counter.)

  • Background display

    Store and display background images
    Max. size: 1920 x 1080 (2K mode), 3840 x 2160 (4K mode)

  • Logo display

    Store and display logo images
    Max. size: 1024 x 512

  • Screen layout

    User customized layout
    Layouts for each output can be saved on the viewer

  • Title display

    Character limit: 2x Max. 16 characters lines for each input channel
    Supported characters: Letters, numbers, symbols, Korean characters and Japanese kana/kanji (JIS 1 and 2)

  • Tally display

    Indicated as a frame (red/green/amber) or marker (red/green/amber) on each input window

  • Audio level display

    Up to 16 audio channels of audio level metering per input

  • Time code display

    Display for 3G/HD/SD-SDI ancillary timecode (ATC)
    Reader mode

  • Video monitoring

    Detects video loss, frozen frames, incorrect luminance/black level and CRC/HDCP error

  • Audio monitoring

    Detects audio loss, silence and excessive audio levels

  • Interface (standard)

    LAN: 100BASE-TX/1000BASE-T, 1x RJ-45 (CAT 5e-compliant)

  • Interface (optional)

    Installing MV-12IF adds the following

  • RS-232C/RS-422/RS-485

    1x 9-pin D-sub (male)
    Baud rate: 9600/19200/38400/57600/115200 bps
    Data length: 8-bit
    Stop bit: 1-bit
    Parity: none/odd/even

  • GPIO

    1x 37-pin D-sub (female)
    Up to 36-pin for input/18-pin for output (selectable and can be used for input and output)
    Types of alarm output: Power 1/2 operating normally, fan alarm, etc.

  • Layout Manager

    Windows software for customizing window sizes and positions, switching windows and registering backgrounds and logos (Windows software)

  • Live Viewer

    Software for video streaming (Windows software)

  • Data backup

    Stores settings internally to the memory
    (rewrite capacity: approx. 100,000 times)

  • Backup battery

    Internal lithium battery (to maintain time)

  • Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Humidity

    30% to 90% (no condensation)

  • Power/consumption

    100 V AC to 240 V AC +/-10%, 50/60 Hz / 108W

  • Consumables

    Cooling fan: Replace every 5 years
    Backup battery CR2032: Replace every 5 years
    Battery: Replace every 5 years

  • Dimensions (W x H x D)

    430 x 44 x 425mm / 16.93 x 1.73 x 16.73", EIA 1RU

  • Weight

    6.3kg / 13.89lbs

About For.A MV-1200

An advanced solution for complex video monitoring, the MV-1200 3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer is a sophisticated piece of high-tech equipment designed for professional environments where multiple video sources need to be observed simultaneously. This state-of-the-art multi viewer supports a diverse range of mixed signals, including 3G-SDI (Level-A/B), HD-SDI, SD-SDI, Composite, HDMI, and DVI sources, ensuring compatibility with a wide array of video formats.

The MV-1200 stands out with its ability to handle asynchronous inputs and accommodate various formats and frame rates such as NTSC, PAL, 1080/59.94i, 1080/50i, and progressive scan formats like 30/29.97/25/24/23.98p or PsF, without the need for frame rate conversion. Users can expand the system's capabilities with up to 16 input channels by integrating optional cards, including the MV-12SDI for SDI and Composite inputs, the MV-12PCI for DVI/HDMI connectivity, and the MV-12IF interface card for additional control and synchronization features.

The innovative Layout Manager software allows for seamless 4K video display management, enabling users to customize video layouts with ease. The HDMI 2.0b output, when used with the MV-12PCO, supports 4K UHD output via a single HDMI cable, delivering crisp 3840 x 2160 YUV 4:2:0 resolution.

Enhance your video presentations with the ability to import bitmap images for logo display or generate and register logos directly through a web browser. The Layout Manager also provides the flexibility to adjust image size, position, title display, and other settings, with the convenience of storing and recalling layouts directly from the front panel control.

For remote monitoring and management, the MV-1200 offers video streaming capabilities over Ethernet, allowing users to view streamed video locally or remotely, and even record streamed video for analysis or archiving purposes.

Audio monitoring is another key feature, with the ability to monitor up to 16 channels of audio levels within each 3G/HD/SD-SDI or HDMI signal. Customize the display positions and number of channels using the Layout Manager, and monitor audio output through various channels, including 3G/HD-SDI, HDMI, or analog audio outputs.

The MV-1200 ensures that errors are prominently displayed, with options for flashing borders, error icons, or messages, helping users quickly identify and address issues such as video loss, frozen frames, and audio problems.

Additional functionalities include tally, title, and timecode displays, with support for alphanumeric characters, symbols, and Korean characters. The multi viewer also offers time synchronization with SNTP servers, multiple clock displays, and a versatile information display that can include error logs, user-entered text, and multi viewer information.

Customization extends to input locking for genlock synchronization, a flexible time display that can accommodate a 30-hour clock, and a schedule timer for precise time management. Users can also crop video windows and maintain aspect ratios, ensuring the perfect fit for any display requirement.

With its comprehensive range of features and flexible customization options, the MV-1200 3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer is the ideal choice for professionals in security, surveillance, and control room applications who require a reliable, innovative solution for multi-source video monitoring.

For.A MV-1200 Features

  • Supports a wide range of inputs including 3G/HD/SD-SDI, Composite, HDMI, and DVI for versatile connectivity
  • Innovative Layout Manager for easy customization and management of 4K video displays
  • Real-time video streaming and recording over Ethernet for remote monitoring and analysis
  • Comprehensive audio monitoring with customizable display positions for up to 16 audio channels
  • Advanced error detection with visual alerts for quick identification and troubleshooting
  • Flexible time and scheduling features with SNTP server synchronization and a 30-hour clock display

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Mix & monitor up to 16 inputs with this high-resolution video switcher, ensuring seamless broadcasts.
  • Enjoy broad compatibility with 3G/HD/SD-SDI, HDMI, & analog inputs on this versatile video switcher.
  • Create custom multi-viewer layouts for each output, saving configurations directly on the switcher.
  • Ensure reliable video monitoring with alerts for video loss, frozen frames, and incorrect luminance.
  • Stream video easily with included Live Viewer software, perfect for live events and broadcasts.
  • This affordable video switcher supports up to 4K output, delivering high-quality visuals for your audience.

What's in the box:

  • For.A MV-1200 3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer
  • Power Cable (with Outlet Tether)
  • Rack Mount Brackets
  • CD-ROM
  • Quick Setup Guide
  • For.A 1 Year Limited Warranty
