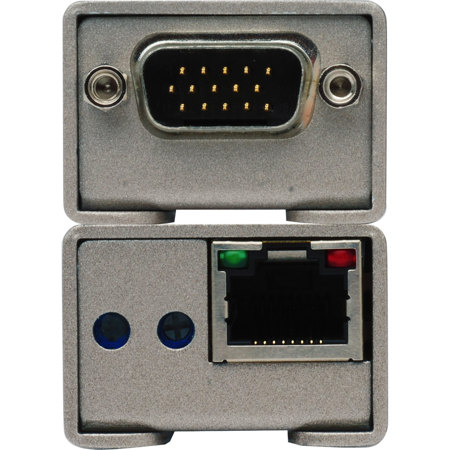

Gefen SRN VGA Extender, 350MHz Bandwidth, 1.2V p-p Input Video Signal

SKU: GEVGA141SRN

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Gefen SRN VGA Extender, 350MHz Bandwidth Specifications

  • Video Amplifier Bandwidth

    350 MHz

  • Input Video Signal

    1.2 Volts p-p

  • Input Sync Signal

    5 Volts p-p (TTL)

  • Horizontal Frequency Range

    15 - 70 KHz

  • Vertical Frequency Range

    30 - 170 Hz

  • Video In

    HD-15, male

  • Video out

    HD-15, female

  • Link Connector

    RJ-45, shielded

  • Power Supply

    5V DC

  • Power Consumption

    5 W (max. per unit)

  • Dimensions ( W x H x D)

    3.7 x 1.8 x 1.4" / 9.39 x 4.57 x 3.55 cm Each Module

About Gefen SRN VGA Extender, 350MHz Bandwidth

The Gefen VGA Extender SRN is a distribution system that allows you to extend VGA signals by transporting them over CAT-5 Ethernet cable. The system consists of a transmitter that connects to your VGA source, which transports the signal over CAT-5 cable. The receiver then accepts this signal and translates to its original format for output. This unit supports transmission distances of up to 150'. Resolutions up to 1080p or 1920 x 1200 are also supported.

Gefen SRN VGA Extender, 350MHz Bandwidth Features

  • Extends any VGA or high definition component display up to 150 feet (45 meters)
  • One CAT-5e cable for extension
  • Supports resolutions up to 1080p, 2K and 1920 x 1200

Key Features

  • One CAT-5e cable for extension
  • Supports resolutions up to 1080p, 2K and 1920 x 1200

What's in the box:

  • Gefen VGA Extender SRN Sender Unit
  • VGA Extender SRN Receive Unit
  • 6 ft VGA Cable (M-F)
  • 5V Power Supply
  • User's Manual
  • Gefen 2 Years Warranty
