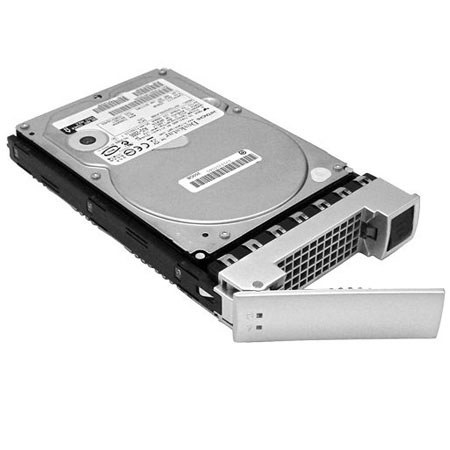

G-Technology G-SPEED eS Pro XL / G-SPEED FC 1TB Spare Module, 4Gbit Fibre Channel Interface

SKU: GTEGSPXLDM1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

G-Technology GSPD351TBDSKMOD G-Speed eS PRO XL Module Specifications

  • Capacity

    1TB

  • RAID Architecture

    Intel 80219 400MHz CPU

  • RAID Features

    RAID levels 0, 1, 3, 5, 0+1, 6 & JBOD

  • System Type

    6-Drive Tower

  • Host Interface

    Dual 4Gb FC channels

  • Disk Interface

    6 SATA-II channels

  • RAID Management

    Firmware embedded Web browser-based RAID manager via built-in 10/100 Ethernet port
    Firmware embedded manger via RS-232 port
    Firmware embedded manager through LCD control panel Field-upgradeable firmware from flash ROM

  • Monitoring Indicators

    All system status can be monitored via firmware-embedded Web browser-based RAID manager system status indication through LCD, LED and alarm buzzer
    All system events can be sent to multiple user alerts via emails firmware embedded SNMP agent allows remote to monitor events through LAN with no SNMP agent required

  • Operating System

    OS independent and transparent

  • Temperature

    Operating Temperature : 10 to 35deg. C
    Non Operating Temperature : -40 to 60deg. C

  • Relative Humidity

    20%-80% non-condensing

  • Electrical

    AC Voltage 110-230 VAC/AC frequency 50-60Hz

  • Power Supply

    Single 300W ATX Power Supply / Optional Redundant Dual 250W Power Modules with PFC Feature

  • Dimensions (W x D x H)

    166mm x 288mm x 346mm

  • Weight (w/o HDD)

    10kg/22.05lbs

About G-Technology GSPD351TBDSKMOD G-Speed eS PRO XL Module

G-SPEED FC is the ideal storage solution for multi-stream, multi-user SD and uncompressed HD work flows. G-SPEED FC features 4Gbit Fibre Channel connectivity and is available in a compact desktop enclosure with 6 Hitachi SATA II drives. G-SPEED FC and can be configured (via a front panel LCD or Web GUI) as a JBOD or in RAID levels 0, 1, 3, 5 or 6. This flexibility enables the system to be tuned to the required level of performance and fault-tolerance necessary to fully support your application.

G-SPEED FC is "SAN ready" and is an affordable and simple way to deploy a fail-safe SAN or add additional high performance RAID storage to existing SAN networks. G-SPEED FC's built-in Web GUI monitors the status of the system including power supply voltage, fan RPM and the temperature of the RAID controller & hard drives. In the event of a problem, G-SPEED FC can send an email message to up to four recipients.

G-SPEED FC supports the latest and greatest professional video editing equipment from AJA, Avid and Blackmagic Design. G-SPEED FC is compatible with SAN software including xsan, metaSAN and StorNext.

G-Technology GSPD351TBDSKMOD G-Speed eS PRO XL Module Features

  • High-speed, low-cost RAID designed specifically for professional content creation applications
  • Supports multi-stream ProRes 422 and uncompressed SD/HD workflows
  • High-performance 4Gbit Fibre Channel interface - SAN Ready!
  • RAID controller w/256MB cache supports RAID levels 0, 1, 3, 5, 6 & JBOD
  • 6-drive desktop enclosure with hot-swappable Hitachi 7200 RPM, 3.5" 3Gbit SATA drives each with up to 32MB cache
  • Web-based configuration and management
  • Auto-rebuild and email notification
  • Removable cooling fan ensures reliable operation and data integrity
  • Optional redundant power supply
  • Mac OS X and Windows compatible

What's in the box:

  • G-Technology G-SPEED FC 1TB Spare Module
  • (6) Removable Disk Modules
  • Power Cord
  • (2) 3m LC to LC Optical Cable
  • RS232 Cable
  • SFP
  • CD Manual
  • G-Technology 3 Year Warranty
