HuddleCamHD HC10XA Specifications

  • Frame Rate

    30fps 1920 x 1080p

  • Lens Zoom

    10x Optical Zoom f=4.9 - 49mm F2.0-2.8

  • Video CMOS Sensor

    1/3" CMOS, 2.1 Mega Pixel

  • Pan Movement

    +/-359 deg.

  • Tilt Rotation:

    Up: 90 deg., Down: 45 deg.

  • Presets

    64 Presets

  • Video Signal

    USB 2.0

  • Field of View

    7 deg.(tele) to 57 deg. (wide)

  • Power LED

    Blue LED to signal power

  • Control

    IR & RS232 over USB

  • Baud Rate

    9600 bps

  • Controller Signal Config

    Dip-Switch Pin 7/TTL Signal

  • Material

    Aluminum, Plastic

  • Input Voltage

    12V DC (10.5-14V DC)

  • Input Power

    24W (Max)

  • Power Supply Adapter

    12V DC 2A

  • Operating Temperature

    32 to 113 deg. F (0 to 45 deg. C)

  • Dimensions (WxHxD)

    4.88 x 5.5 x 4.75" (12.40 x 13.97 x 12.07cm)
    6" (15.24cm) Height with tilt up

  • Weight

    1.66 lbs (0.75kg)

  • UPC Code

    737993160564

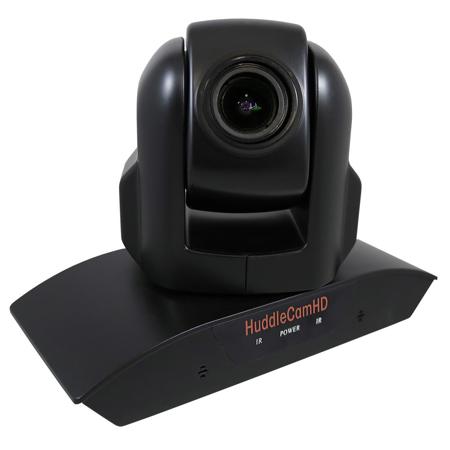

About HuddleCamHD HC10XA

The HuddleCamHD 10XA is the perfect addition for medium sized conference rooms that require an HD camera and a high quality microphone
When using a HuddleCamHD camera you destined for an easy to use experience. We strive to make our cameras as simple as possible. Simply plug your camera into your computer and you're ready to start conferencing. This plug and play USB 2.0 device will give you everything you need in a small to medium sized conference room.

• 10x Optical Zoom
• Built-in Microphone
• 57deg. Field of View
• USB 2.0 Video Feed
• 1920x1080p at 30fps
• 64 Presets

Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 10X optical zoom letting you get up close to see and interact with your team.

Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Simply plug your camera into your computers USB port and start your video conference.

Dual Microphone Array
Powerful microphone array built into the camera for clear audio pick up.

Field of View
The HuddleCamHD 10XA has a wide 57 degree field of view so you can capture your entire room and still have the ability to zoom in.

Use your favorite software
Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.

Camera Presets
Access camera presets with the included IR remote control. Easily control your cameras pan tilt and zoom along with other fine tuning setting from your remote control.

Robust Installation Options
Easily invert the camera image for installation on the ceiling. Use the included Tri-Pod mount adapter to fasten the camera to a standard tri-pod or simply mount on the wall.

Plug-and-Play USB Connectivity
Easily connect your camera to a PC, Mac or ChromeBox without the need for additional software.

What's in the box:

  • HuddleCamHD 10XA 2MP Camera with Built in Microphone
  • IR Remote Control
  • Tripod Mount Adapter
  • HuddleCamHD 2 Year Parts and Labor Warranty
