Ikan VX9e 8.9" Field Monitor Deluxe Kit, 180 NITLCD Brightness, 1024x600 Resolution, 300:1 Contrast Ratio

SKU: IAVX9EDKE6

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Ikan VX9e Specifications

  • Diagonal

    8.90" (22.60 cm)

  • Resolution

    1024x600

  • Brightness

    180 NIT

  • Contrast Ratio

    300:1

  • Viewing Angle

    45deg./45deg. (R/L) 15deg./35deg. (U/L)

  • Inputs/Outputs

    HDMI, composite & component

  • Operating Voltage

    7 to 24 VDC

  • Operating Temperature

    32 to 122deg.F (0 to 50deg.C)

  • Power Consumption

    8.5 W

  • Kit: Operating Voltage

    12 to 20 VDC

  • Kit: Power Consumption

    3 W

  • Dimensions (H x W x D)

    Monitor: 9.12x7x1.62" (231.64x177.8x41.14 mm)

  • Weight

    1.6 lbs (0.72 kg)
    Kit: 6.00 lbs (2.72 kg)

0 Accessories for Ikan VX9e 8.9" Field Monitor Deluxe Kit, 180 NITLCD Brightness, 1024x600 Resolution, 300:1 Contrast Ratio

About Ikan VX9e

The Ikan VX9e 8.9" HD-SDI field monitor has peaking and false color features and 5 custom color temperature presets (9300K / 6500K / 5600K) and clip guide. The monitor also features monochrome and a peaking feature, which highlight the desired focus area in a bright, silver outline. The monitor has a resolution of 1024 x 600 and is well-suited to a variety of applications.

The BP2-E6 Canon battery plate is compatible with any Canon 5D Mark II & III, 7D & 60D battery.

Ikan VX9e Features

  • Peaking: The VX9e is equipped with both Monochrome and Color Peaking features which highlight the desired focus area in a bright, SILVER outline. The operator adjusts the focus control until the SILVER indicator outlines on the desired area are razor sharp, indicating optimal focus
  • False Color: The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. As the camera Iris is adjusted, the subject of the image will change color based on specific brightness values indicating optimal exposure
  • Adjustable Under Exposure & Over Exposure Warning: As an additional tool associated with the VX9e's False Color feature, Ikan's exclusive Adjustable Under Exposure and Over Exposed Waning feature gives the operator full control of the VX9e False Color brightness values
  • Clip Guides: The VX9e offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over set IRE limit will flash in a vivid purple, indicating only the over exposed area
  • The VX9e Has You Covered: The days of purchasing a separate battery plate for your monitor are over. In addition to the included AC adapter, the VX9e comes complete with popular BP2 battery adapter plate! Whether you are shooting with a Canon, Panasonic or Sony DV camera, Ikan has you covered
  • Professional Power Options: If you need Anton Bauer or Sony V mount power options, Ikan has you covered with the VXPBK-A/S professional battery mount system. This simple device mounts directly to back of the VX9e or VX9. Once it's mounted, you're in business
  • It's All About Connections: The VX9e sports HD-SDI (which also transcodes to analog component out), HDMI, HD/SD component, composite, giving you ability to use the VX9e with any video device in the industry

Key Features

  • Monochrome & Color Peaking
  • False Color feature ensures flawless shot exposure
  • Adjustable Under Exposure & Over Exposure Warning
  • Adjustable Clip Guide displays overexposed images
  • VX9e Has You Covered
  • Professional Power Options

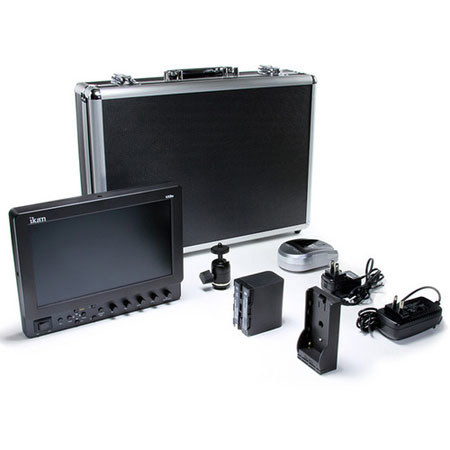

What's in the box:

  • Ikan VX9e 8.9" HD-SDI Field Monitor
  • Canon-style Battery & Charger
  • AC Adapter
  • BP2-E6 Battery Plate for Canon 5D/7D Battery
  • Ultra-Heavy Duty Camera Shoe Mount
  • Hard Metal Carrying Case
  • 1 Year Warranty
