Canon iPF9400S Specifications

  • Printer Type

    8-Color 60" Printer

  • Number of Nozzles

    Total: 20480
    All Colors: 2560 nozzles each

  • Nozzle Pitch

    1200 dpi

  • Nozzle Recovery System

    Non-firing nozzle detection and compensation

  • Print Resolution (Up to)

    2400 x 1200 dpi (Max)

  • OS Compatibility

    Windows (XP/Vista 32/64bit/Windows 7 32/64bit)
    Macintosh (OSX)

  • Standard Interfaces

    USB 2.0 High-Speed
    10/100/1000 Base-T/TX

  • Ink Droplet Size

    4 picoliter
    LUCIA EX Ink (Pigment based)

  • Ink Capacity

    330ml per color (Optional 700ml)

  • Color Set

    Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Gray

  • Buffer Ram

    640MB

  • Hard Drive

    250GB

  • Media Width

    Cut Sheet: 8" - 60"
    Roll: 10" - 60"

  • Media Thickness

    Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
    Roll: 0.07 - 0.8mm (2.8 - 31.4mil)

  • Maximum Roll Print Length

    59' (18 meters)

  • Maximum Media Roll Diameter

    5.9" (150mm)

  • Borderless Printing Width

    515mm (JIS B2), 1,030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36", 42"

  • Paper Feed Method

    Roll Feed: One Roll, front output
    Front Loading Manual Feed: One sheet, front output

  • Languages

    GARO (Canon Proprietary)

  • Noise Level Approx

    Operation: 68 dB (A) or less
    Standby: 35 dB (A) or less

  • Power Source

    AC-100-240V (50-60Hz)

  • Power Consumption

    Maximum: 190W or less
    Standby: 6W or less
    Power Off: .5W or less (Compliant with Executive Order)

  • Temperature

    59deg.-86deg. F (15deg.-30deg. C)

  • Relative Humidity

    10-80% (No Condensation)

  • Dimensions (H x W x D)

    45x90.5x30.2" / 1143x2298.7x767.08mm

  • Weight

    355 lbs / 161.03 kg

Related Articles & Videos

48 Accessories for Canon imagePROGRAF iPF9400S Graphic Arts and Photo 60" Wide Format Inkjet Printer, 250GB HDD, Up to 2400x1200dpi Resolution

  • All Accessories (48)
  • Cutters & Trimmers (7)
  • Printheads (1)
  • Ink & Toner (5)
  • Cleaning Accessories (1)
  • Sample Pack (5)
  • Photo Paper (7)
  • Printer Paper (6)
  • Gloves (3)
  • Storage & Presentation (8)
  • Envelopes & Protectors (4)
  • Extended Warranty (1)

About Canon iPF9400S

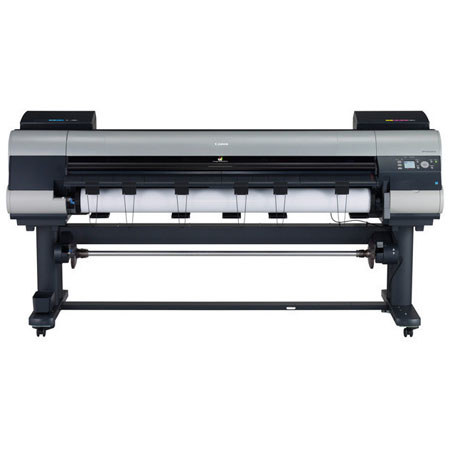

The Canon imagePROGRAF iPF9400S Graphic Arts and Photo Printer is ideal for those who need quality large format output and maximum productivity. Built for the photography, proofing and production markets, the iPF9400S printer delivers high quality imaging while increasing overall productivity. An incredibly large color spectrum is produced by the 8-Color LUCIA Ex pigment ink set, which also provides better scratch resistance and smoother gradations.

The new Multi-sensor included with this printer provides improved color density detection and allows for a full calibration to be completed within 15 minutes, with the ability to use non-Canon branded media. Borderless printing of up to 60" is now possible with this printer and the new economy print mode allows for quality printing with limited ink usage. In highest print mode, the order of ink application and layering is optimized to maintain the highest print quality with fewer passes, making this mode twice as fast compared to previous models. Ideal for production grade printing environments, the iPF9400S is up to 40% faster than the 12-Color line of imagePROGRAF Graphic Arts printers. Achieve maximum productivity with large 330ml or 700ml ink tanks and a unique sub-ink tank system for replacing ink on-the-fly without stopping the printer.

The iPF9400S is also equipped with a large 250GB hard drive, geared to increase productivity in high volume printing and streamlined workflows, while allowing for faster processing of large files as well as the ability to reprint jobs directly from the printer.

To expand printing options and capabilities, the iPF9400S printer comes bundled with an assortment of Software Solutions such as an Accounting Manager which tracks printing costs and a Print Plug-in for Microsoft Office. The enhanced Print Plug-in for Adobe Photoshop includes a new Adjustment Pattern Setting which allows for multiples of an image to be printed at once with different color values implemented and displayed.

To improve versatility, the iPF9400S has a media configuration tool which allows customers to not only utilize existing Canon-branded media, but also with third party media. By combining Canon's technological achievements, the iPF9400S is an excellent solution for portraits, advertisements, retail signage and contract proofs.

Canon iPF9400S Features

  • Lucia Ex Ink Set: Canon's LUCIA EX Ink set is designed for dramatic photographic expression and detailed color reproduction for exacting proofing applications. This 8-Color ink set offers a brilliant range of vibrant colors, smooth gradations and transitions, with incredibly fine details
  • New Multi-Sensor: This new printer includes an upgraded, built-in color densitometer that's designed to offer even more precise calibration and color matching
  • High Speed Printing with Fewer Passes: In highest print mode, the order of ink application and layering is optimized to maintain the highest print quality with fewer passes, making this mode twice as fast compared to previous models
  • New Economy Printing Mode: With this new feature, the fastest printing mode on the iPF9400S offers printing quality that's equivalent to the previous model's standard printing mode. while finishing print jobs much faster
  • Borderless Printing: For the first time have the ability to print up to 60" wide full borderless prints
  • Sub Ink Tank System: Utilizing the included sub ink tanks, the iPF9400 keeps some ink in reserve so that even when the physical ink tanks run out of ink, printing can continue without interruption and the tanks can be replaced on the fly
  • 250GB Hard Drive: A built-in 250GB hard drive within the printer increases productivity by relieving workload from the host PC, while providing a large capacity for print job data storage and retrieval
  • Gigabit Ethernet Support: Fast data transfer will help exceptionally high measures of productivity
  • Enhanced Print Plug-in for Adobe Photoshop: This export module allows 16-bit image processing, preserving the expanded color spectrum and high gradation of the file
  • Accounting Manager: Tracks how much ink and media is being consumed when printing. Costs can be assigned to ink and paper to determine expenses based on "Cost of goods". The user can also input a variable cost that will be added to the total of the print cost
  • Print Plug in for Microsoft Office: This utility makes it easy to print large-format documents created in Microsoft Word, Excel, or PowerPoint. The Plug-in appears in a tool bar inside the Microsoft application and has an easy-to-follow "Wizard"

Key Features

  • Gigabit Ethernet Support

What's in the box:

  • Canon imagePROGRAF iPF9400S Graphic Arts and Photo Printer
  • 2" Roll Holder with 3" Core Adapters
  • Print Heads (2)
  • 8 x 330ml Starter Ink Tanks (BK/MBK/C/M/Y/PC/PM/GY)
  • Sample Roll Heavyweight Coated Paper
  • Maintenance Cartridge
  • User Manual CD
  • Quick Setup Guide
  • Printer Reference Guide
  • Power Cord
  • Software Bundle
  • Canon 1 Year Warranty
