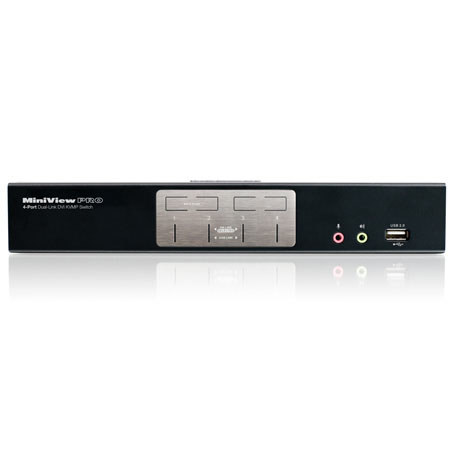

IOGEAR 4-Port Dual-Link DVI KVMP Pro Switch

SKU: IGGCS1204G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

IOGEAR GCS1204G Specifications

  • CPU Connectors: Mouse

    USB

  • CPU Connectors: Keyboard

    USB

  • CPU Connectors: Monitor

    Dual Link DVI

  • CPU Connectors: Microphone

    Yes

  • CPU Connectors: Audio

    2.1

  • Console Connectors: Mouse

    USB

  • Console Connectors: Keyboard

    USB

  • Console Connectors: Monitor

    Dual Link DVI

  • Console Connectors: Microphone

    Yes

  • Console Connectors: Audio

    2.1

  • Voltage

    5 Vdc

  • Amps

    2 A

  • Maximum video resolutions

    DVI-D Dual link: 2560 x 1600, DVI-D Single link: 1920 x 1200

  • LEDs: Selected

    Bright Orange

  • LEDs: On Line

    Dim Orange

  • LEDs: Auto Scan

    Blinking Orange

  • LEDs: USB Peripherals

    Green

  • Video Input

    Dual Link DVI

  • Video Output

    Dual Link DVI

  • Requirements

    Console:
    1 DVI Display
    1 USB Keyboard and 1 USB Mouse
    Computers:
    1 DVI Port
    1 USB Port
    Operating Systems:
    Windows XP, Windows Vista (32 / 64-bit)
    7 (32 / 64-bit)
    Mac OS X v10.3.9 or later
    Sun Solaris
    Linux

  • Dimensions (W x H x D)

    10.2" x 1.6" x 2.9" / 259.08 x 40.64 x 73.66 mm

  • Weight

    Without Accessories: 2 lbs / 0.91 kg
    With Accessories: 6.4 lbs / 2.90 kg

About IOGEAR GCS1204G

IOGEAR is pushing the envelope again with the GCS1204G, 4-Port Dual-Link DVI KVMP Pro switch supporting high-end 3D graphics, compatibility with most gaming keyboards available and an integrated 2-port USB 2.0 hub for peripheral sharing. Now, users can control up to four computers and share multiple USB peripherals from a single keyboard, monitor and mouse console.

It features IOGEAR's DynaSync intelligent technology, which allows the KVMP to read and remember the monitor's optimal display parameters and refresh rate, a function critical in today's graphic intense applications where large wide screen displays (up to 30") are required.

Additionally, the patented asynchronous switching allows the user to independently switch applications between the connected computers. You can run one application on one computer while running another application on the other. Moreover, the integrated 2-port USB 2.0 hub is available for each computer to share multiple peripherals connected to the hub or via an external powered USB 2.0 hub. Access to such peripherals is performed on a one-at-a-time basis. Finally, the audio ports allow for connecting powered PC speakers for stereo sound and a single microphone for audio input/output to each computer.

IOGEAR GCS1204G Features

  • Share a professional quality monitor between four USB/DVI computers
  • DynaSync - Reads and remembers the monitor's parameters to eliminate delay or change of video resolution when switching between, or booting computers
  • Compatible with gaming keyboards
  • Supports high-end 3D graphics
  • Audio support for 2.0 or 2.1 Audio
  • 2-port USB 2.0 peripheral hub to share printers or external hard drives
  • Asynchronous hotkey switching between KVM focus, USB peripheral and audio ports
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Mouse emulation may be disabled to allow programmable buttons to function
  • Support Mac keyboard and special keys

What's in the box:

  • IOGEAR 4-Port Dual-Link DVI KVMP Pro
  • 4 x Custom KVM Cables
  • 1 x USB-to-PS/2 Converter
  • 1 x Power Adapter
  • 1 x User Manual
  • 1 x Registration Card
  • IOGEAR 3 Year Warranty
