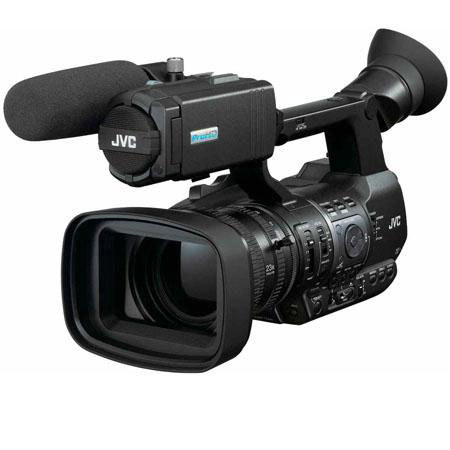

JVC Three GY-HM600 Camcorder Package, 3 Lns Cntrl, 3 7" DTX71C, 3 1013 Tripods
See all JVC items

JVC Three Camera Complete Studio Package - Three GY-HM600 ProHD Camcorders, Three JVC HZ-HM600VZR Remote Lens Controllers, Three JVC DT-X71C 7" Monitors, Three Sachtler 1013 Carbon Fiber Tripods, Three Davis & Sanford Dollies

SKU: JVGYHM600F1
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JVC GY-HM600 Specifications

  • Sensor

    1/3" 2.2M pixels progressive scan 3CMOS

  • Synchronizing System

    Internal

  • Stabilizer

    Optical image stabilizer

  • Lens

    Fujinon F1.6-3.0, 23x, f=4.1 - 94.3 mm (35 mm conversion: 29 to 667 mm)

  • Filter Diameter

    72 mm

  • Shutter Speed

    1/4 to 1/10000

  • Gain

    -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC

  • ND Filter

    1/4, 1/16, 1/64

  • LCD Display

    3.5" (8.9 cm) 920K pixels, 16:9

  • Viewfinder

    0.45" (1.1 cm) 1.22M pixels, 16:9

  • Recording Media

    2x SDHC/SDXC memory card class 6/10

  • Video Recording

    Video codec: MPEG2 Long GOP (HD), AVCHD, H.264 (SD)
    File format: MOV (HD/SD: H.264), MP4 (XDCAM EX), MTS (AVCHD)

  • Recording Mode

    MPEG-2 Long GOP:
    NTSC setting
    HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p
    SP mode: 1440 x 1080/59.94i
    AVCHD
    NTSC setting
    HQ mode: 1920 x 1080/59.94i, SP mode: 1920 x 1080/59.94i
    SD (H.264)
    NTSC setting: 720 x 480/59.94i
    Proxy (H.264)NTSC setting: LP/LV mode:480 x 270/29.97p, 23.98p

  • Audio Recording

    LPCM 2ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3(AVCHD)

  • Video Output

    (1) AV output (f3.5 mm mini jack)
    (1) SDI output
    (1) HDMI output

  • Audio Input

    (2) XLR (MIC, +48V/LINE)
    (1) f3.5 mm mini jack

  • Audio Output

    (1) AV output (f3.5 mm mini jack)

  • Headphone

    (1) f3.5 mm mini jack

  • Time Code Link Input/Output

    (1) RCA

  • Remote

    (1) f2.5 mm mini jack

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage Temperature

    14 to 122deg.F (-20 to 50deg.C)

  • Operating Humidity

    35 to 80%

  • Storage Humidity

    Under 85%

  • Power

    DC 12V (AC adapter), DC 7.2V (battery)

  • Power Consumption

    Approx. 12W (with VF and LCD monitor)

  • Dimensions

    7x7.8x16.3" (17.8x19.8x41.6cm)

  • Weight

    Approx. 5.3lbs (2.4kg)

5 Accessories for JVC Three Camera Complete Studio Package - Three GY-HM600 ProHD Camcorders, Three JVC HZ-HM600VZR Remote Lens Controllers, Three JVC DT-X71C 7" Monitors, Three Sachtler 1013 Carbon Fiber Tripods, Three Davis & Sanford Dollies

  • All Accessories (5)
  • Microphones & Audio (1)
  • Filters (2)
  • Bags & Cases (1)
  • Tripods (1)
Rode NTG2 Dual Powered Directional Condenser Microphone
Rode NTG2 Dual Powered Directional Condenser Microphone
$269.00
Recommended
ProOPTIC Pro Digital 72mm Multi Coated UV Ultra Violet Filter
ProOPTIC Pro Digital 72mm Multi Coated UV Ultra Violet Filter
$13.95
Recommended
Porta Brace CSDV4U Mini DV Camera Case,Universal Cradle
Porta Brace CSDV4U Mini DV Camera Case,Universal Cradle
$199.07
Tiffen 72mm Circular Polarizer Filter
Tiffen 72mm Circular Polarizer Filter
$30.00
Miller DS10 Fluid Head with Solo 75 3-Section Aluminum Alloy Tripod
Miller DS10 Fluid Head with Solo 75 3-Section Aluminum Alloy Tripod
$1,678.65

About JVC GY-HM600

The JVC GY-HM600 ProHD Handheld Camcorder features superb low-light performance and a lightweight and user-friendly design, altogether allowing exceptional fast-paced capture of news, sports and indie productions.

Three 1/3" 12-bit CMOS sensors are each capable of a max resolution of 1920 x 1080. A 23x Fujinon autofocus zoom lens shoots long and wide angles and is operable by manual functions. The camera offers F11 sensitivity and is equipped with a built-in 3-position ND filter. Connections include HD-SDI and HDMI. Comprehensive recording options consist of MPEG-2, AVCHD and SD and Proxy H.264. Two SDXC/SDHC slots are available for dual-backup, continuous recording.

A viewfinder, LCD display and built-in microphone provide additional flexibility in on-the-go shooting with this next-generation handheld high-performance camera.

JVC GY-HM600 Features

  • 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
  • F11 Sensitivity
  • 23x Fujinon Auto focus zoom lens with manual functions
  • F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)
  • Optical image stabilizer
  • 3 position ND filter (1/4, 1/16, 1/64)
  • 0.45-inch 1.22M pixel color viewfinder
  • 3.5-inch 920K pixel LCD display with focus assist
  • SDXC/SDHC memory card recording (2 slots for dual-backup, continuous recording)
  • Professional switch layout and comprehensive video settings
  • Pre Rec (retro) mode (20 sec.)
  • Interval (time lapse) recording
  • Built-in stereo microphone
  • 2-channel balanced audio inputs (mic/line switchable) w/phantom power supply
  • HD/SD-SDI, HDMI Outputs
  • Wired remote control connector
  • High performance 2D DNR

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • 3x JVC GY-HM600 ProHD Handheld Camcorder
  • 3x JVC HZ-HM600VZR Remote Lens Control
  • 3x JVC DT-X71C 7" On Camera Monitor
  • 3x Sachtler System Ace L TT 75/2 CF Carbon Fiber Tripod with Ace L Fluid Head (Includes Bag)
  • 3x Davis & Sanford Universal Tripod Dolly with Carry Handle
