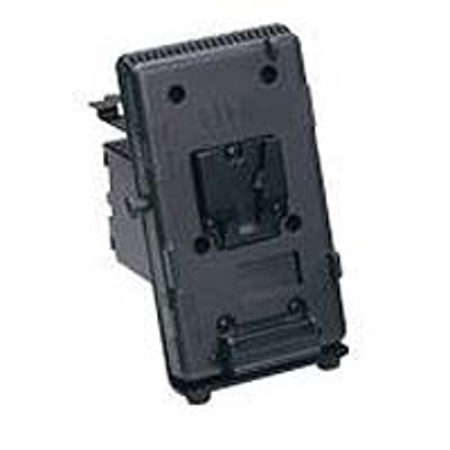

JVC NVA-100KIT, IDX Battery Bracket with "V" Mount for the GY-HD100 Professional HDV Camcorder to use NP-Style Lithium Ion Batteries

NVA-100KIT PACKAGE FOR GY-HD100

Approved by JVC, the new IDX battery adaptor enables IDX's award-winning NP-style Lithium Ion batteries to power JVC's new 7.2V GY-HD100 and GY-HD101 camcorders.

Designed specifically for JVC's new high definition, high performance camcorders, the IDX battery bracket makes direct, cable-free connection via the camcorder's battery bay, in a similar way to the standard JVC7.2V battery.

The bracket incorporates IDX's existing P-V plate, allowing direct V-Mounting of the NH-100V single NP battery box.

Advanced electronics inside the IDX battery bracket convert the voltage of any IDX NP-Style battery to the required 7.2 volts. Built-in over-voltage circuits protect the device.

An additional standard feature of the IDX battery bracket is the D-Tap output connector that will supply power directly from the battery at the regular 14.8 V battery voltage.

This is primarily for powering on-board camera lights, such as IDX's new x3-Lite on-board LED camera light. This same D-Tap output can also simultaneously feed the JVC Hard Disk Recorder DR-HD100.
