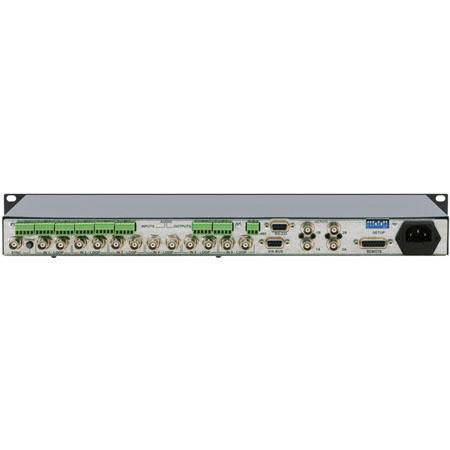

Kramer Electronics Kramer VS602XL 6x2 Video/Audio Stereo Matrix Switcher
See all Kramer Electronics items

Kramer Electronics VS-602XL 6x2 Composite Video & Balanced Stereo Audio Matrix Switcher

SKU: KRVS602XL
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics VP-553: Picture 1 regular
Kramer Electronics VP-553 Boardroom Presentation Switcher/Dual Scaler
$3,595.00
Kramer Electronics VP-734: Picture 1 regular
Kramer Electronics VP-734 7-Input ProScale Presentation Switcher/4K30 UHD Scaler
$2,145.00$1,716.00
Kramer Electronics VP-770: Picture 1 regular
Kramer Electronics VP-770 8-Input ProScale Presentation Switcher/Scaler
$1,864.00$1,099.00
Kramer Electronics VP-771: Picture 1 regular
Kramer Electronics VP-771 9-Input ProScale Switcher/Scaler with Speaker Outputs
$2,664.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VS-602XL Specifications

  • Input

    6 composite video with loop, 1 sync -1Vpp/75 Ohm on BNC connectors with sync select switch; 6 balanced audio stereo, +4dBu/33 k Ohm on detachable terminal blocks

  • Outputs

    2 x 2 composite video -1Vpp/75 Ohm on BNC connectors. 2 balanced audio stereo, +4dBu/50 Ohm on detachable terminal blocks

  • Max. Output Level

    Video: 2Vpp/75 Ohm; Audio: 20Vpp max

  • Bandwidth (-3dB)

    300MHz; 100kHz (audio)

  • Diff. Gain

    0.03%

  • Diff. Phase

    0.01Deg

  • K-factor

    0.05%

  • S/N Ratio

    Video: 75dB; Audio: 82dB unweighted @1Vpp

  • Crosstalk

    Video: -67dB @5MHz; audio: -97dB @1kHz

  • Controls

    17 illuminated front-panel touch switches, RS-232, RS-485

  • Coupling

    Video: DC; audio: AC

  • Audio THD

    0.024%

  • Audio 2nd Harmonic

    0.002%

  • Power Source

    100-240V AC, 50/60Hz, 40VA

  • Dimensions

    19" x 7" x 1U (W x D x H), rack mountable

  • Weight

    2.7kg (6 lbs.) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VS-602XL

The Kramer VS-602XL is a high-performance matrix switcher for composite video and balanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

Kramer Electronics VS-602XL Features

  • High Bandwidth - 300MHz (-3dB) fully loaded
  • Level (Gain) and EQ (Peaking) Controls - Each output
  • Looping Input
  • Selectable Input Signal Termination
  • Video Outputs - 1:2 DAs
  • Control - Front panel, contact closure, RS-232 (K-Router Windows-based software is included)
  • Front Panel Control Lockout
  • Take Button - Execute multiple switches all at once
  • Memory Locations - Store multiple switches as presets (salvos) for recall and execution as needed
  • Audio Breakaway Switching
  • Vertical Interval Switching
  • Switching Synchronization - Synchronize either to external reference or the incoming video
  • Selectable Sync Signal Termination
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Looping Input

What's in the box:

  • Kramer VS-602XL 6x2 Composite Video & Balanced Stereo Audio Matrix Switcher
  • Power Cord
  • PC Control Software
  • Kramer 7 Years Limited Warranty
