Miller Compass 12 Specifications

  • Material

    Alloy/rubber

  • Construction

    2-Stage

  • Maximum Height

    1795 mm (70.7 in)

  • Minimum Height

    404 mm (15.9 in)

  • Mounting Standard

    75mm ball leveling

  • Payload Capacity

    10.00 kg (22 lbs)

  • Payload Range

    4.4 to 22 lb (2 to 10 kg)

  • Transport Length

    870 mm (34.3 in)

  • Weight

    7.10 kg (15.7 lbs)

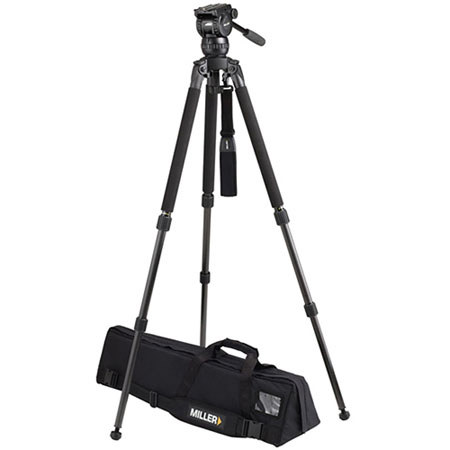

About Miller Compass 12

The Miller 1876 Compass 12 Solo 2-Stage tripod system is purpose-built for professionals seeking a high-performance lightweight system at an affordable price. This premium product with proven solid build quality offers fluid head performance control with high tripod stability in all types of rugged outdoor conditions. It combines the benefits of the Compass 12 fluid head with the flexibility and rigidness of the 1630 2-stage alloy Solo tripod.

The Compass 12 is designed for "on the go" creative professionals who want the best at an affordable price and is suitable for cameras and configurations payloads up to 22lbs 10kg. The advanced precision fluid drag and counterbalance systems operated by slim in line radial ring controls result in quicker and easier setup.

With an extended 3+0 position fluid drag system employing smooth start and soft stop technology and 4 counterbalance settings plus 60mm camera plate balance travel, the Compass 12 offers a fast reliable set up you can trust and is versatile enough to use over a wide array of camera configurations.

The Compass 12 is matched with the 2 stage Solo (alloy) tripod that results in a working height range of 15.9-70.7" (404-1795mm), rapid action twist locks on independent stages and the versatility to set up system across all terrains

Miller Compass 12 Features

  • Compact, lightweight and versatile.
  • 3 selectable positions of fluid pan and tilt drag + 0.
  • 4 selectable positions of counterbalance.
  • Perfect for payloads to 3.3-22.0lbs (1.5-10kg)
  • Integrated 75mm bowl.
  • 2-stage rapid leg lock extension.
  • Durable black anodized alloy tubing.
  • Illuminated Bubble Level.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.

Key Features

  • Three selectable positions of drag plus a zero position
  • Four selectable positions of counterbalance for payloads between 2-10 kg
  • Quick release sliding camera plate
  • Illuminated bubble level
  • 75mm Ball leveling
  • Solo DV 2-Stage Alloy tripod

What's in the box:

  • Miller Compass 12 Fluid Head (1033)
  • Solo DV 2-Stage Aluminum Tripod (1630)
  • Solo DV Strap (1520)
  • Soft Case (876)
  • Fixed Length Pan Handle (679)
  • Miller 3 Year Warranty '
