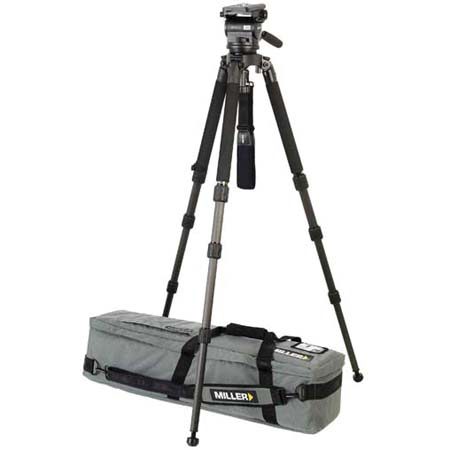

Miller Arrow 25 Fluid Head with SOLO ENG 3-Stage Carbon Fibre Tripod, Supports Up to 30 lbs

SKU: MISA251505

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Miller 25 1505 Specifications

  • Fluid Head Payload Range

    3.5 to 14 kg (7-30 lbs)

  • Fluid Head Camera Plate

    1/4"+pin, 1/4"+3/8"

  • Fluid Head Mounting

    100mm ball leveling

  • Fluid Head Tilt Drag

    5 selectable fluid drag positions + 0

  • Fluid Head Pan Rotation

    360°

  • Fluid Head Pan Lock

    Calliper disc brake system

  • Fluid Head Temperature Range

    -40°C to +65°C

  • Fluid Head Pan Handle

    Fixed length

  • Payload Capacity

    Fluid Head: 14 kg (30.8 lb)
    Tripod: 30 kg (66 lb)

  • Fluid Head Height Above Bowl

    162 mm (6.4 in)

  • Fluid Head Camera Platform Type

    Quick release and sliding platform

  • Fluid Head Tilt Lock

    Calliper disc brake system

  • Fluid Head Tilt Range

    +/-90°

  • Fluid Head Pan Drag

    5 selectable fluid drag positions + 0

  • Fluid Head Counterbalance

    4 selectable positions

  • Fluid Head Illumination

    Bubble level and pan/tilt indicators

  • Tripod Bowl Diameter

    100 mm (3.9 in)

  • Tripod Lock Type

    Concentric

  • Tripod Maximum Height

    1870 mm (73.6 in)

  • Tripod Minimum Height

    220 mm (8.7 in)

  • Tripod Transport Length

    658 mm (25.9 in)

  • Tripod Tube Type

    Carbon Fibre

  • Tripod Construction

    3-Stage

  • System Transport length

    820 mm (32.3 in)

  • System Height range

    382-2032 mm (15-80 in)

  • Weight

    Fluid Head: 3 kg (6.6 lb)
    Tripod: 3.1 kg (6.8 lb)
    System: 9.1 kg (20.0 lb)

  • Warranty

    Miller 3 year warranty

About Miller 25 1505

• The Arrow 25 is a new 100 mm fluid head designed to support the latest generation in acquisition from the film-ready HDV alternatives to the lightweight ENG camcorders providing outstanding fluid drag performance. Arrow 25 features 5+5 selectable pan/tilt drag (plus '0') to provide repeatable light to heavy drag settings. Selectable 4 position counterbalance and 70 mm sliding camera platform to balance a wide range of camera loads from 3.5-14 kg. It makes the Arrow 25 one of the most versatile camera support platforms available.

The Miller Solo ENG has changed how cameraman view telescopic tripods by achieving incredibly high torsion rigidity in the lightest 100mm Carbon fiber/magnesium design. Boasting an incredible 8" - 73" height range, this 3-stage ring locking tripod collapses down to a dwarf-like 25 1/2". Designed for video journalists on the run, Solo ENG is ultra-light and ultra-versatile, utilizing leg angle locking to eliminate the need for a spreader, and to reduce overall system weight and complexity.

Miller 25 1505 Features

  • Fluid Head 25 Features:
  • Payload range from 3.5-14kg
  • 5 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • SOLO ENG 3 Stage Carbon Fibre Tripod Features:
  • Supports all full size ENG/EFP camcorders
  • Eliminates Spreader with Leg Angle Lock
  • Safe, speedy 3-Stage ring lock leg clamping
  • 100mm industry standard ball leveling
  • Spike or wind-down rubber feet

Key Features

  • Fluid Head 25 Features:
  • Payload range from 3.5-14kg
  • 5 (plus zero) positions of fluid pan & tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling

What's in the box:

  • Miller Arrow 25 Fluid Head (1022)
  • SOLO ENG 3 Stage Carbon Fibre Tripod (1505)
  • Camera Plate (860)
  • Pan Handle with Handle Carrier (679)
  • Solo Shoulder Strap (1520)
  • Arrow Softcase (872)
  • Miller 3 Year Warranty
