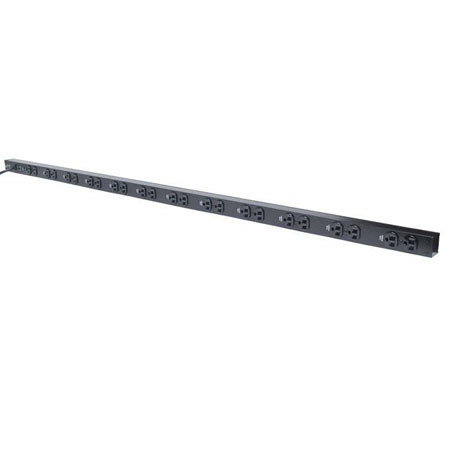

Minuteman MMPD2420VA62 PDU with Amp-Meter, Black

Minuteman MMPD2420VA62 PDU with Amp-Meter, 24-Outlet, 20 Amp, 0U Vertical Mounting, Black

SKU: MNPD2420VA62
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Minuteman MMPD2420VA62 PDU Specifications

  • Mounting orientation

    0U, Wallmount

  • Maximum capacity

    16-Amp

  • Power cord length

    15 ft (4.6 m)

  • Power cord type

    5-20P

  • Total outlets

    24

  • Outlets (type): Front

    24 x (5-15/20R)

  • Power ON/OFF LED

    Yes

  • Circuit breaker UL 1077

    One 20-Amp

  • Circuit breaker UL 489

    No

  • Circuit quantity

    One

  • Built-in Amp-meter

    Yes

  • Audible overload alarm

    Yes

  • Input/Output voltage

    120V/120V

  • Frequency

    50/60Hz

  • Safety approvals

    UL 60950-1, cUL, CE

  • Dimensions (H x W x D)

    1.6 x 62.0 x 1.5" / 41 x 157 x 38 mm

About Minuteman MMPD2420VA62 PDU

The Minuteman MMPD2420VA62 is a 24-outlet,15-Amp Receptacles, Amp-metered, 0U Vertical Mounting Power Distribution Unit. The Minuteman MMPD2420VA62 PDU is housed in a sturdy, black, metal case with heavy-duty 24 outlets. The power cords are all strain-relieved with molded plugs and use heavy-gauged cables.

Minuteman MMPD2420VA62 PDU Features

  • Longer power cords: The Minuteman MMPD2420VA62 PDU unit have 15-ft power cords, eliminating the need for 6-, 8-, or 10-ft alternatives
  • More standard outlets: Minuteman PDU unit have 24 outlets
  • Configuration versatility: Minuteman MMPD2420VA62 PDU unit have a multi-form factor with OU configuration allowing for vertical placement
  • High standards: PDU with higher UL 60950-1 standards. The MMPD2420VA62 is compatible with any data center or network installation
  • Cost effective: Longer cords and more features are what make the MMPD2420VA62 best value today
  • Higher reliability: Designed for higher reliability, Minuteman MMPD2420VA62 PDU switchless design and on/off LEDs provide greater MTBF
  • Load-metering: Amp-metered unit is available to display connected equipment loads

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Longer power cords
  • More standard outlets
  • Configuration versatility
  • High standards: PDU with higher UL 60950-1 standards
  • MMPD2420VA62 is compatible with any data center or network installation
  • Cost effective: Longer cords & more features are what make the MMPD2420VA62 best value today

What's in the box:

  • Minuteman 24-Outlet 20-Amp 0U Vertical Mounting PDU
  • 0U/Wallmount Brackets
  • Minuteman Limited Lifetime Warranty
