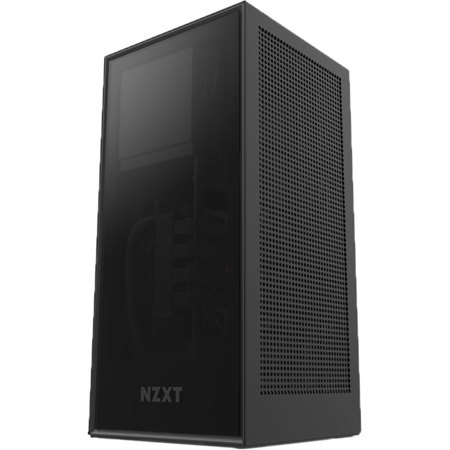

NZXT H1 Mini-ITX Case with 650W Power Supply, AIO Liquid CPU Cooler, Riser Card, Matte Black

SKU: NZCAH16WRB1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

NZXT H1 Specifications

  • Color

    Matte Black

  • Material (s)

    SGCC Steel and Tempered Glass

  • Motherboard Support

    Mini-ITX (Increased Wi-Fi compatibility with a wired antenna)

  • CPU & Socket

    Intel: 115X
    AMD: AM4, FM2+, FM2, FM1, AM3+, AM3, AM2

  • Front I/O Ports

    1x USB 3.1 Gen 2 Type-C
    1x USB 3.1 Gen 1 Type-A
    1x 4 Pole Headset Audio Jack

  • Filters

    All Air Intakes

  • Liquid Cooler

    Radiator: 173.5 x 138.5 x 22mm

    Pump: 65 x 65 x 27mm
    4200 +/- 420 RPM

    CPU Socket:
    Intel: 115X
    AMD: AMD4, FM2+, FM2, FM1, AM3+, AM3, AM2

    Aer P140mm PWM fan: 500-1,800 +/- 300 RPM
    Noise: 21-38dBA

  • Riser Card

    PCI Express x16
    Version: 3.0
    High-speed passed
    Cable length: 315mm

  • Expansion Slots

    2

  • Drive Bays

    2.5": 2

  • Radiator Support

    1x 140mm (Integrated AIO 140mm Liquid Cooler for CPU)

  • Clearance

    GPU Clearance:
    Dimension: 12 x 5.03" (305mm x 128mm); 10.4 x 5.70" (265mm x 145mm)
    Thickness: Up to 2.5 Slots

  • Battery Info

    Not Required

  • Battery Material

    -

  • Battery Quantity

    -

  • Battery Type

    -

  • Dimensions

    7.36 x 15.26 x 7.39" (187 x 387.7 x 187.6mm)

  • Weight

    14.4 lbs (6.53kg)

  • UPC Code

    815671016065

About NZXT H1

The all-new NZXT H1 provides a beautifully small vertical chassis, maintaining full-sized GPU compatibility. The building experience is streamlined, with pre-routed cable channels and an integrated PSU and AIO liquid cooler. The dual-chamber exhaust layout maintains superior cooling for the CPU and GPU, providing each with a dedicated air source.

NZXT H1 Features

  • The compact vertical design provides a small spatial footprint while maintaining support for most full-sized GPU's on the market so you can maintain your desk real estate without sacrificing graphics power
  • The toolless SSD tray and riser card are incredibly simple to install. In addition to pre-routed cables, the motherboard I/O faces down, routing all cables through the bottom of the case for a clean, simplified appearance
  • Integrated power supply and AIO liquid cooler provide a better build experience, along with pre-routed cables that make it easy to manage the clutter and cut down on build time. An integrated PCIe Riser card is also included for vertical GPU mounting
  • The dual-chamber airflow is thermally designed to allow the CPU, GPU, and PSU to pull in fresh air, and exhaust hot air without affecting temperatures of neighboring components

Key Features

  • An integrated PCIe Riser card is also included for vertical GPU mounting

What's in the box:

  • H1 Mini-ITX Case with 650W Power Supply & AIO Liquid CPU Cooler and Riser Card (Matte Black)
  • Mounting Hardware
  • 3.5mm Headset Audio Jack Splitter
  • Cable Tie
  • Breakout Cable
  • NZXT 3 Year Warranty on Case & Riser Card and AIO Liquid CPU Cooler and 10 Year Limited Warranty on PSU
