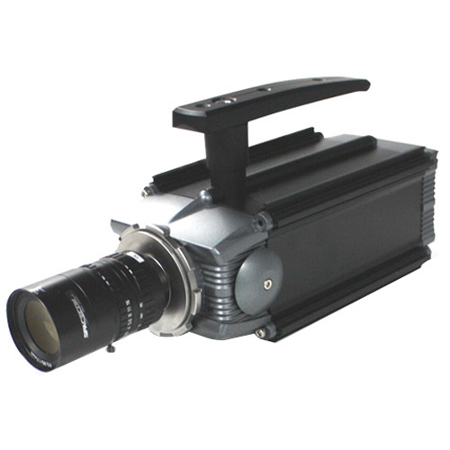

Orion Images CHDC-22BHSC 2.2MP Full HD Day & Night High Speed Box Camera
See all Orion Images items

Orion Images CHDC-22BHSC 2.2MP Full HD Day & Night High Speed Box Camera without Lens, 1920x1080, 30fps

SKU: ORCHDC22BHSC
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Orion Images CHDC-22BHSC Specifications

  • Image Sensor

    Max resolution at rate: 2048x1088p at 340fps

  • Recording Memory

    Internal 8GB (max. 2048 x 1088 at 340fps)

  • Live Display resolution

    Max. 1920 x 1080p at 60fps

  • Play Display resolution

    Max. 1920 x 1080p at 60fps

  • Recording Image Compress

    H.264 Max, 1920 x 1080p at 30fps

  • Control I/F

    Recording / Play trigger & OSD button
    External trigger I/F

  • External Memory

    Micro SD (T-Flash) H.264 compress image recording

  • Display Output Port

    HDMI x 1 port
    SDI x 1 Port
    CVBS x 1 Port (include Multi-cable)

  • HOST I/F

    Max. 3Gbps 4Lane Host I/F Channel (HDMI connect I/F)

  • I/O I/F

    RS232 x 1 port, D1 x 1 Port, IR-Remote

  • Power

    DC +12V

  • Total Pixels

    2048(H) x 1088(V) / 2,228,224 (Pixel)

  • Active Pixels

    1920(H) x 1080(V) / 2,073,600 (Pixel)

  • Scanning System

    Progressive Scan (Sync System Internal)

  • VIDEO Output

    HD-SDI, HDMI, CVBS
    Max.1920 x 1080p at 60

  • Minimum Illumination

    5.56V / Lux

  • LENS Mount

    C, CS

  • Serial Port

    RS-232

  • IRIS

    Yes

  • OSD

    Yes

  • Power Supply

    DC12V / 1.0A

  • Dimensions (W x H x D)

    209.7 x 78.78 x 98.1mm / 8.26 x 3.10 x 3.86"

  • Weight

    1.4kg / 3.09lbs

About Orion Images CHDC-22BHSC

ORION product is designed and developed specially for security surveillance application. FCC class A commercial grade displays are equipped to run 24 x 7 x 365 Continuously.

• 2.2M CMOS Image Sensor
• Full HD 1920 x 1080p (Max. 340fps)
• HD 1280 x 720p (Max. 500fps)
• D1 720 x 480 (Max. 745fps)
• HDMI, SDI, CVBS Video Output Support
• Internal 8GB Memory
• H.264 Compression backup
• High speed image sensor raw video full frame Host transmit & interface
• 340 frame internal DDR memory recording & real 30 frame, 60frame display

The new ORION Images CHDC-22BHSC HD CCTV 2.1 Mega pixel Camera can be used in Broadcast, Security and Sport applications.
