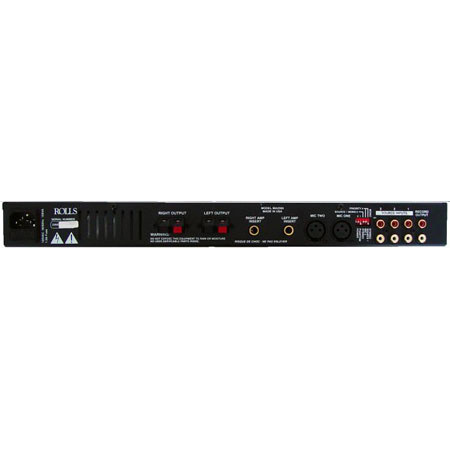

Rolls MA2355 35W Mixer/Amplifier for Paging Music
See all Rolls items

Rolls MA2355 35W Mixer/Amplifier for Paging and Background Music

SKU: ROLMA2355
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Rolls MA1705 70W Mixer/Amplifier for Paging Music
$499.00
$429.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Rolls MA2355 Specifications

  • Mixer: Input Impedance

    Mic: 600 Ohms XLR balanced
    Source: 22K Ohms RCA
    Insert: 22K Ohms 1/4" TS unbal.

  • Mixer: Max Input Level

    Mic:-14 dBV Mic level Max
    Source: 24 dBV
    Insert: 24 dBV

  • Mixer: Connectors

    2: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1: 1/4" TS, 1: 1/8" (3.5mm)

  • Mixer: Phantom Power

    +12 VDC

  • Mixer: Max Gain

    Mic: 60 dBV
    Source: 26 dBV

  • Mixer: Tone Controls

    +/-12 dB 100 Hz Bass
    +/-12 dB 11kHz Treble

  • Mixer: Noise Floor

    Speaker Out: -67 dBV
    Pre Out: -90 dBV

  • Mixer: THD + Noise

    -82 dBV

  • Mixer: S/N Ratio

    96 dBV

  • Mixer: Priority Attenuation

    60 dBV

  • Recommended Load

    8 Ohms

  • Frequency Response

    60Hz to 20 kHz

  • THD + Noise

    0.06% typical - 82 dBV

  • Power

    120 VAC

  • Dimensions (W x H x D)

    19" x 1.75" x 5" / 48 x 4.5 x 12.7

  • Weight

    5.5 lbs / 2.5 kg

About Rolls MA2355

The Rolls MA2355 is a single rack space mixer amplifier designed for small installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players and video players with up to two microphones. Priority talkover is provided on Microphone One for paging and on Source Three for a jukebox, telephone, etc. The power amplifier provides 35 Watts of power connected to 8 ohm speakers.

Rolls MA2355 Features

  • Two Microphone inputs with phantom power
  • Tone controls for each Mic input
  • Three stereo Source inputs
  • Direct access to the power amp section
  • Bass and Treble controls on Sources Two and Three
  • Priority ducking on Mic Two and Source One
  • Dual pre-master level Record Output
  • Fault protected power amp
  • Spring-loaded output terminals
  • Clip indication
  • FR4 Double-sided epoxy circuit board
  • Socketed Ics

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Two Microphone inputs
  • Tone controls for each Mic input
  • Three stereo Source inputs
  • Direct access to the power amp section
  • Bass and Treble controls on Sources Two and Three
  • Priority ducking on Mic Two and Source One

What's in the box:

  • Rolls MA2355 35W Mixer/Amplifier
  • User Manual
  • Rolls 1 Year Parts and Labor Limited Warranty
