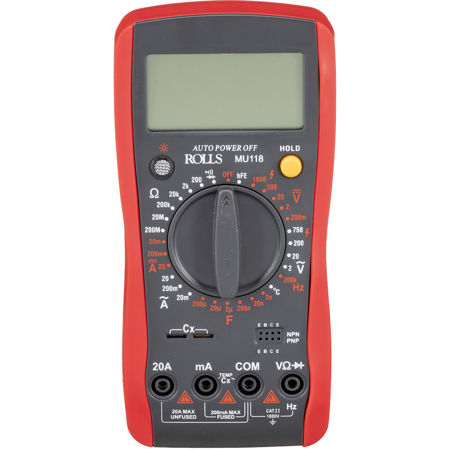

Rolls MU118 Digital Multimeter, 3.5" Display

SKU: ROLMU118

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Rolls MU118 Specifications

  • Display

    3.5" (88.9 mm)

  • Measurement Rate

    Updates ever two to three seconds

  • DCV Measurement

    Up to 1k V

  • ACV Measurement

    Up to 700 V

  • AC Measurement

    Up to 200 mA

  • DC Measurement

    Up to 20 A

  • Capacitance Measurement

    20 pF to 20 uF

  • Resistance Measurement

    10 Ohms to 20 M ohms

  • Temperature Measurement

    -119.2Deg. to 752Deg. F (-84Deg. to +400Deg. C)

  • Operating Temperature

    32Deg.F to 104Deg.F (0 to 40Deg.C) 0 to 75% R.H.

  • Storage Temperature

    14Deg.F to 122Deg.F (-10 to 50Deg.C) 0 to 75% R.H.

  • Power

    Single standard 9V battery IEC 6F22, NEDA 1604, JIS 006P

  • Dimensions (L x W x H)

    6.92 x 3.46 x 1.49" (176 x 88 X 38 mm)

  • Weight

    0.68 lb (310 g)

About Rolls MU118

The MU118 Digital Multimeter by Rolls is a compact; All-in-One battery operated precision instrument which measures voltage, current, frequency and resistance. A built-in sensor allows it to also measure temperature for more advanced or specialized applications. This multimeter features a single thirty position rotary switch providing easy one step operation when making function and range selections. It also includes an independent On/Off switch so the selector doesn't have to move from its current position.

The 3.5" digital display with large 22 mm digits provides much greater accuracy than older analog meters and eliminates parallax errors by measuring and displaying quantities as a number. It also features a built-in diode test and convenient continuity buzzer which allows you to focus on where you're placing the probes instead of trying to read the display.

Rolls MU118 Features

  • This all-in-one battery operated device measures voltage, current, frequency and resistance
  • Built-in sensor measures temperature for specialized applications
  • One thirty position rotary switch provides easy one-step function and range selection
  • Independent On/Off switch allows the rotary selector to remain in its current position
  • 3.5" display with large 22 mm digits provide greater accuracy than older analog meters
  • Built-in diode test and convenient continuity buzzer allows you to focus on probe placement

Key Features

  • Built-in sensor measures temperature for specialized applications

What's in the box:

  • Rolls MU118 Digital Multimeter
  • Pair of Test Leads
  • K-type Thermocouple Wire
  • Spare 0.5A Fuse
  • 9V Battery
  • Rolls 1 Year Parts & Labor Limited Warranty
