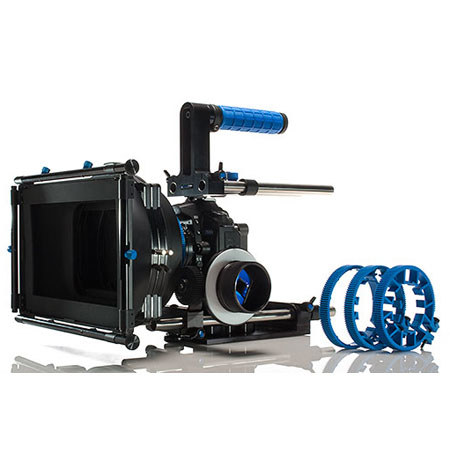

Redrock Micro DSLR Cinema Bundle, Blue Mattebox Knob

The Redrock Micro DSLR Cinema Bundle is a comprehensive package for converting video DSLRs to useful cinema production tools. This bundle is compatible with most video DSLRs including the Nikon D90 and Canon 5D Mark II.

Video Digital SLRs (35mm digital still cameras) now produce amazing high quality HD video and deliver the advantages of 35mm lenses, but remain awkward for use in video and movie production. To meet the needs of filmmakers who are taking advantage of this cutting edge approach, Redrock accessories bring the needed cinema form factor, support, and features to video DSLRs and transforms them into production-ready cinema solutions .

The DSLR Cinema Bundle is the premier solution for true cinema-style features, weight, and stability. This bundle provides a full size microMatteBox and microFollowFocus, all designed to current cinema specifications. The microSupport cage provides protection and side rods for mounting, and the top microHandle delivers a convenient place to hold the rig, and use for low mode shooting (handle is attached to the cage for strength. It is not attached to the camera's hot shoe). These same accessories can be used with any video camera and even the Red Digital Cinema cameras with minor add-ons. The DSLR Cinema Bundle is perfect for anyone shooting primarily with tripod, and wants to emulate the film style results found in big screen motion pictures .

The Redrock DSLR Cinema Bundle is designed primarily for tripod /supported use and includes A Rock-solid Carbon Fiber 15mm support system , DSLR baseplate , microSupport cheeseplate and rod clamp for tripod mounting , Follow focus with 35mm lens gearing and four lens gears (size A,B,C,D for accurate and repeatable focusing , Swing-away mattebox for light management and easy access to changing lenses , Support cage for enhanced stability , microHandle top handle for carrying, and low mode shooting

Here are some common Canon EF (EOS) lenses and their corresponding lens gear size
Canon EF Lens -
• 14mm f/2.8 L - Diameter 75mm - Use Lens Gear B
• 16-35mm f/2.8 L - Diameter 76mm - Use Lens Gear B or C
• 16-35mm f/2.8 L II - Diameter 76mm - Use Lens Gear B
• 17-35mm f/2.8 L - Diameter 76mm - Use Lens Gear B
• 20-35mm f/2.8 L - Diameter 77mm - Use Lens Gear B or C
• 20mm f/2.8 - Diameter 75mm - Use Lens Gear B
• 24mm f/1.4 L - Diameter 80mm - Use Lens Gear C
• 17mm f/4.0 Tilt Shift Lens - Diameter 88mm - Use Lens Gear C
• 24mm f/3.5 Tilt Shift Lens - Diameter 79mm - Use Lens Gear B.C
• 45mm f/2.8 Tilt Shift Lens - Diameter 78mm - Use Lens Gear B or C
• 90mm f/2.8 Tilt Shift Lens - Diameter 73mm - Use Lens Gear B
• 24mm f/2.8 - Diameter 67mm - Use Lens Gear A
• 28mm f/1.8 - Diameter 73mm - Use Lens Gear B
• 28mm f/2.8 - Diameter 66mm - Use Lens Gear A
• 24-70mm f/2.8 L - Diameter 84mm - Use Lens Gear C
• 28-70mm f/2.8 L - Diameter 83mm - Use Lens Gear C
• 24-105mm f/4.0 L IS - Diameter 82mm - Use Lens Gear C
• 35mm f/1.4 - Diameter 79mm - Use Lens Gear C
• 35mm f/2.0 - Diameter 67mm - Use Lens Gear A
• 50mm f/1.8 - Diameter 65mm - Use Lens Gear A
• 50mm f/1.4 - Diameter 74mm - Use Lens Gear B
• 50mm f/1.2 - Diameter 86mm - Use Lens Gear C
• 50mm Macro f/2.5 - Diameter 67mm - Use Lens Gear A
• 100mm f/2.0 - Diameter 75mm - Use Lens Gear B
• 100mm Macro f/2.8 USM - Diameter 79mm - Use Lens Gear B or C
• 100mm Macro f/2.8 - Diameter 75mm - Use Lens Gear B
• 135mm f/2.0 - Diameter 76mm - Use Lens Gear B or C
• 85mm f/1.2 - Diameter 92mm - Use Lens Gear D
• 85mm f/1.8 - Diameter 75mm - Use Lens Gear B
• 70-200mm f/2.8 L - Diameter 83mm - Use Lens Gear C
• 70-200mm f/2.8 L IS - Diameter 86mm - Use Lens Gear C
• 100-400mm f/4.5-5.6 L IS - Diameter 90mm - Use Lens Gear D
• 180mm Macro f/3.5 L - Diameter 78mm - Use Lens Gear B or C
• 200mm f/2.8 L - Diameter 75mm - Use Lens Gear B
