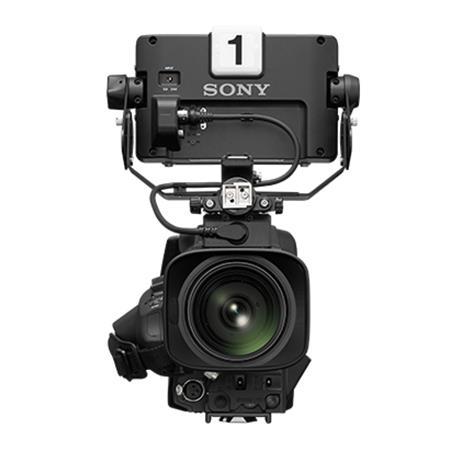

Sony HXC-FB75SC SD/HD Studio Camera Pack with 2/3" Type HD Portable Lens, and HDVF-L750 7" Large Viewfinder

Cost effective system camera ideal for small studio operations, conference events and house of worship applications. Sony introduces an ideal solution for entry level HD & SD live production, delivering better quality and performance for live production. The HXC-FB75 is a high-performance, yet affordable, HD camera system that inherits Sony's proven field-proven operability from the highly regarded DXC-D Series of system cameras. The camera is equipped with three 2/3" Full HD Exmor CMOS sensors to provide excellent sensitivity (F12 at 1080i/60, F13 at 1080i/50) with a low noise ratio for clear images. Those sensors are common to the HXC-P70 and HXC-D70 and enable perfect integration with those cameras which gives you more flexibility.

In addition, a wide range of output formats are available, including 1080i/59.94,50, 1080PsF/29.97,25, 720p/59.94,50, 480i/59.94 and 576i/50. Smooth and precise focusing is enabled by focus assist function and the latest viewfinder options. Video/Audio and control signal transmission, with power, can extend up to 1,148.29 ft via Hybrid Type Optical Fiber Cable. The camera is also controllable from a CCU panel and remote controller. The HXC-FB75SC camera package is supplied with the HDVF-L750 7-inch full HD color LCD viewfinder and portable HD 20x zoom lens. The HXC-FB75SC - enhance your studio production work, cost effectively.

Full HD Exmor CMOS sensors
The HXC-FB75 features three 2/3-inch Exmor CMOS sensors to produce excellent HD pictures.

Captures a variety of HD images
The HXC-FB75 produces a variety of selectable progressive and interlace HD signal formats, including 1080i/59.94, 50, 1080 PsF/29.97, 25, 720p/59.94, 50

SD down-converter
Down converted SD signal output from HXCU-FB70

Hybrid-type optical fiber cable connection to CCU extends signal transmission with power supply to 1,148.29 ft
Connected to the HXCU-FB70, hybrid type optical fiber cable with a Neutric connector can extend signal transmission with required power supply up to 1,148.29 ft. Full camera control is possible through a user-friendly operational panel designed specifically to work with the HXC series camera.

Long-distance transmission up to 6.21 mi with single-mode fiber cable
In the case of connection with a single-mode fiber cable (SMF), transmission can extend up to 6.21 mi if you are using a local power supply. In many facilities the SMF already laid as infrastructure, it enables you to install the camera system quickly and easily.

HDVF interface for connecting a variety of viewfinders
The HXC-FB75 has an HDVF interface that allows the latest HD portable viewfinders to be used, as well as all types of large HDVF viewfinders.

Wide range of image control functions
The system camera is full of creative image control functions such as MultiMatrix, Skin Tone Detail, Low Key Saturation, Knee Saturation and Auto Lens Aberration Compensation (ALAC).

Supplied with digital HD large viewfinder and HD lens
The HXC-FB75SC camera package is supplied with the HDVF-L750 7-inch full HD color LCD viewfinder that offers better and easier operation in studio application. The camera is also supplied with a portable HD 20x zoom lens.
