1/2.8" 2.4Megapixel CMOS
1984(H)x1225(V)
1/3s-1/100,000s
25/30/50/60fps at 720P; 25/30fps at 1080P
Internal
0.05Lux at F1.2(AGC ON), 0Lux IR on
1-channel BNC HDCVI high definition, video output/CVBS standard definition, video output (switchable)
65' / 19.81m, Smart IR
Auto(ICR) / Color / B/W
2D/3D
Supported
3.6mm
H: 88 deg.
M12
DC12V+/-10%
Max 3.5W
-22 to 140 deg. F / -30 to 60 deg. C / Less than 95%RH (no condensation)
>1000' via 75Ohms coaxial cable
IP66
3.7 x 3.13" / 9.40 x 7.95cm
0.78lbs / 0.35kg

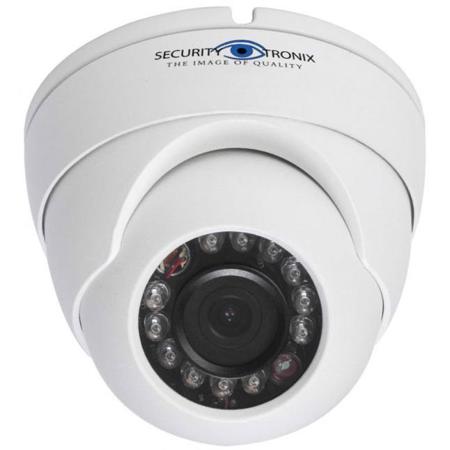

The ST-HD-TD3.6-2MP is a high-definition camera designed around a 1/2.8" Color 2.4 megapixel CMOS, 12 IR LEDs providing infrared capability up to 65 feet and a 3.6mm lens. The ability to send HD video over coaxial cable makes the ST-HD-TD3.6-2MP a cost effective high-definition surveillance solution for any budget.
The HD-COAXINATOR series utilizes the same coaxial cable, connectors and power plugs as a traditional analog CCTV system. The series is priced like analog and delivers resolution like IP, but without video latency or other difficulties found when dealing with IP based systems. Integrators can easily upgrade existing systems from analog to HD by simply replacing the old DVR and analog cameras with HD-COAXINATOR cameras and CVR digital video recorder.
